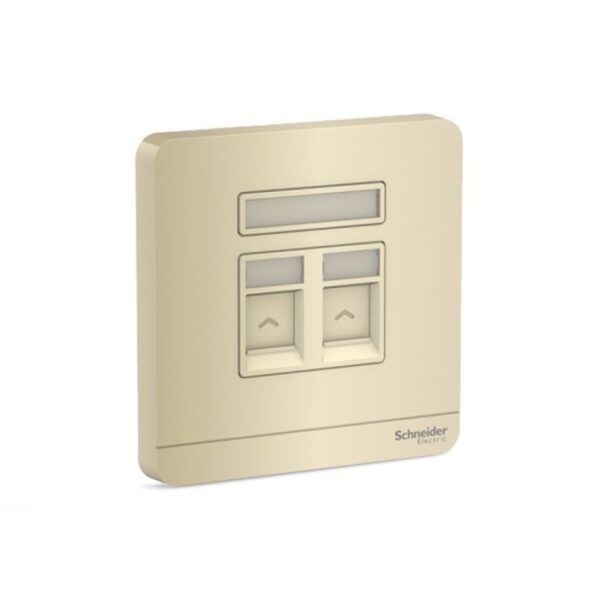

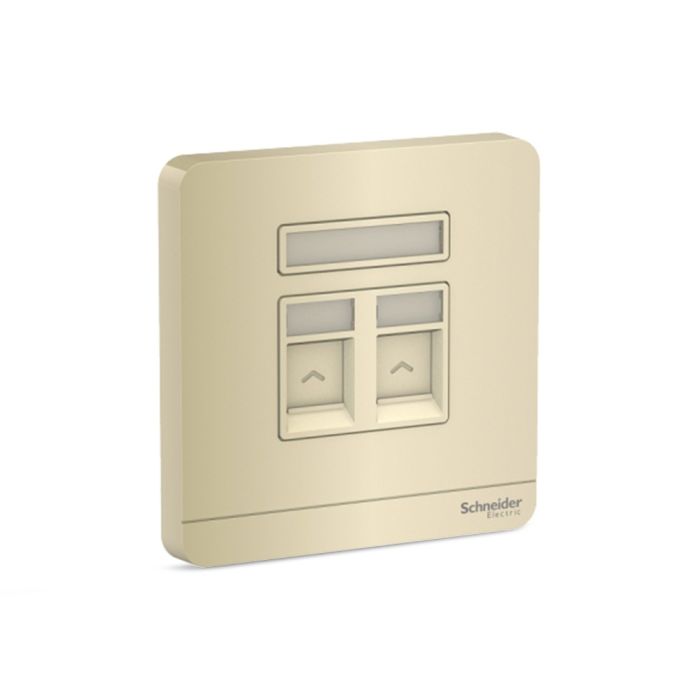

E8332TDRJS5_WG | Avataron-1G Tel + Rj45 Data Cat5E, Shuttered, Wg – Schneider Electric

Name: E8332TDRJS5_WG | Avataron-1G Tel + Rj45 Data Cat5E, Shuttered, Wg - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: E8332TDRJS5_WG
Price: 2706.57 INR
Availability: BackOrder

SKU: E8332TDRJS5_WG

Original price was: ₹4,437.00.Current price is: ₹2,706.57. Excl. GST

Dispatch By : 2 Weeks

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric E8332TDRJS5_WG data / communication outlet from the AvatarOn range delivers dependable performance for industrial, commercial, and infrastructure applications. myelectric.in stocks the E8332TDRJS5_WG | Avataron-1G Tel + Rj45 Data Cat5E, Shuttered, Wg for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	E8332TDRJS5_WG
Category	Data / Communication Outlet
Main
Range	AvatarOn
Product or component type	Telephone + data socket
Socket additional information	Shuttered
Communication network category	Telephone: 3 Data: 5e
Colour tint	Wine gold
Main colour tint	Wine gold
Complementary
Device presentation	Complete product
Connector type	RJ11/RJ45
Colour tint	Wine gold
Device mounting	Surface Flush
Number of gangs	2 gangs
Material	Polycarbonate
Contacts material	Contact: phosphor bronze with gold plating IDC contact: phosphor bronze with nickel plating
Minimum return loss	23 dB
Embedding depth	31 mm
Width	86 mm
Height	86 mm
Depth	40.7 mm
Environment
Dielectric strength	1000 V for 60 s at 60 Hz
AWG gauge	AWG 26…AWG 22 (4 twisted pair cables)
Environmental characteristic	UV resistant
Maximum ambient air temperature for operation	35 °C
Relative humidity	0…95 %
Standards	TIA/EIA-568-B.2-1 ASTMD4566-98
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.1 cm
Package 1 Width	8.6 cm
Package 1 Length	8.6 cm
Package 1 Weight	69 g
Unit Type of Package 2	BB1
Number of Units in Package 2	10
Package 2 Height	9.5 cm
Package 2 Width	19 cm
Package 2 Length	19.5 cm
Package 2 Weight	742 g
Unit Type of Package 3	CAR
Number of Units in Package 3	60
Package 3 Height	21 cm
Package 3 Width	30 cm
Package 3 Length	39.5 cm
Package 3 Weight	4.952 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
