E8330TX_WE | Avataron-2G Blank Plate, We – Schneider Electric
Original price was: ₹726.00.₹442.86Current price is: ₹442.86. Excl. GST
SKU:
E8330TX_WE

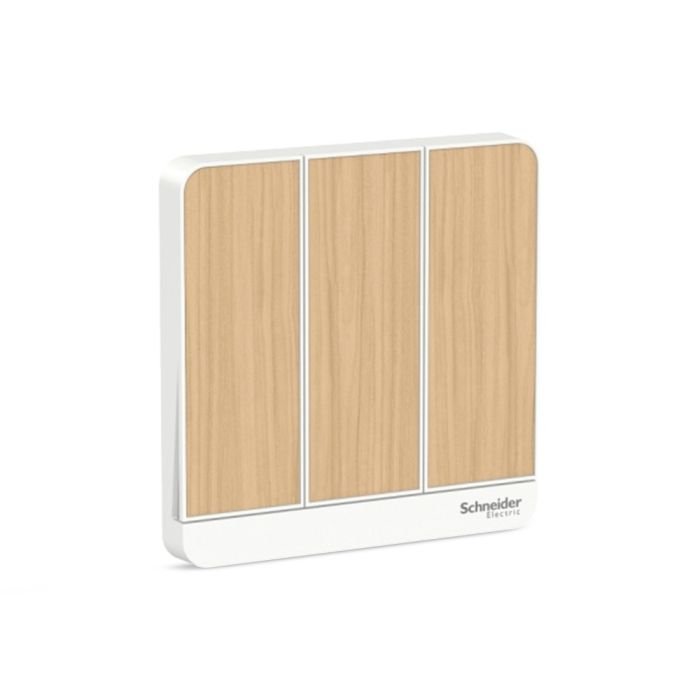

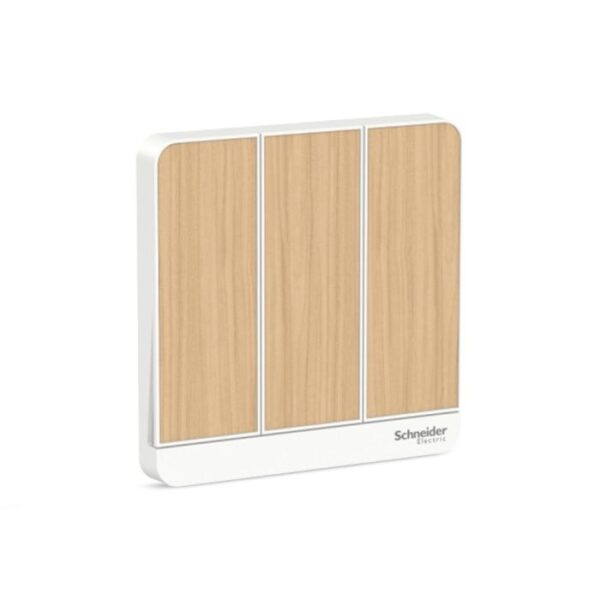

The Schneider Electric E8333L1LED_LW_G8 is a modular switch / wiring device from the AvatarOn range, engineered for everyday wiring and control in demanding Indian and international installations. Key ratings include IP20. Buy the E8333L1LED_LW_G8 | Avataron-16Ax 3G 1Way Switch With Led, Lw online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | E8333L1LED_LW_G8 |
| Category | Modular Switch / Wiring Device |
| Main | |
| Range | AvatarOn |
| Product or component type | Switch |
| Device application | Control |
| load type | Resistive Inductive Incandescent lamp Fluorescent lamp |
| Colour tint | Light wood |
| Complementary | |
| Device presentation | Complete product |
| Actuator | Rocker |
| Rated current | 16 AX at 250 V AC 50/60 Hz |
| Switch function | 1-pole 1-way |
| Number of rocker | 3 |
| Local signalling | Off: LED indicator, LED (amber) |
| Device mounting | Surface Flush |
| Connections – terminals | Brass terminal |
| Clamping connection capacity | 3 x 2.5 mm² for solid cable(s) 3 x 2.5 mm² for stranded cable(s) 4 x 1.5 mm² for solid cable(s) 4 x 1.5 mm² for stranded cable(s) |
| fixing mode | Clip-in |
| IP degree of protection | IP20 |
| Width | 86 mm |
| Height | 86 mm |
| Depth | 34.2 mm |
| Environment | |
| Maximum ambient air temperature for operation | 45 °C |
| Operating altitude | 2000 m |
| Relative humidity | 0…95 % |
| Standards | IEC 60669-1 SS 227-1 MS IEC 60669-1 BS EN 60669-1 IS 3854 |
| Environmental characteristic | UV resistant |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.4 cm |
| Package 1 Width | 8.6 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 110 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 9.5 cm |
| Package 2 Width | 19 cm |
| Package 2 Length | 19.5 cm |
| Package 2 Weight | 1.1 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
E8331_26_WEE8331_36_WEE8331_46_WEE8330X_WEE8330TX_WE
