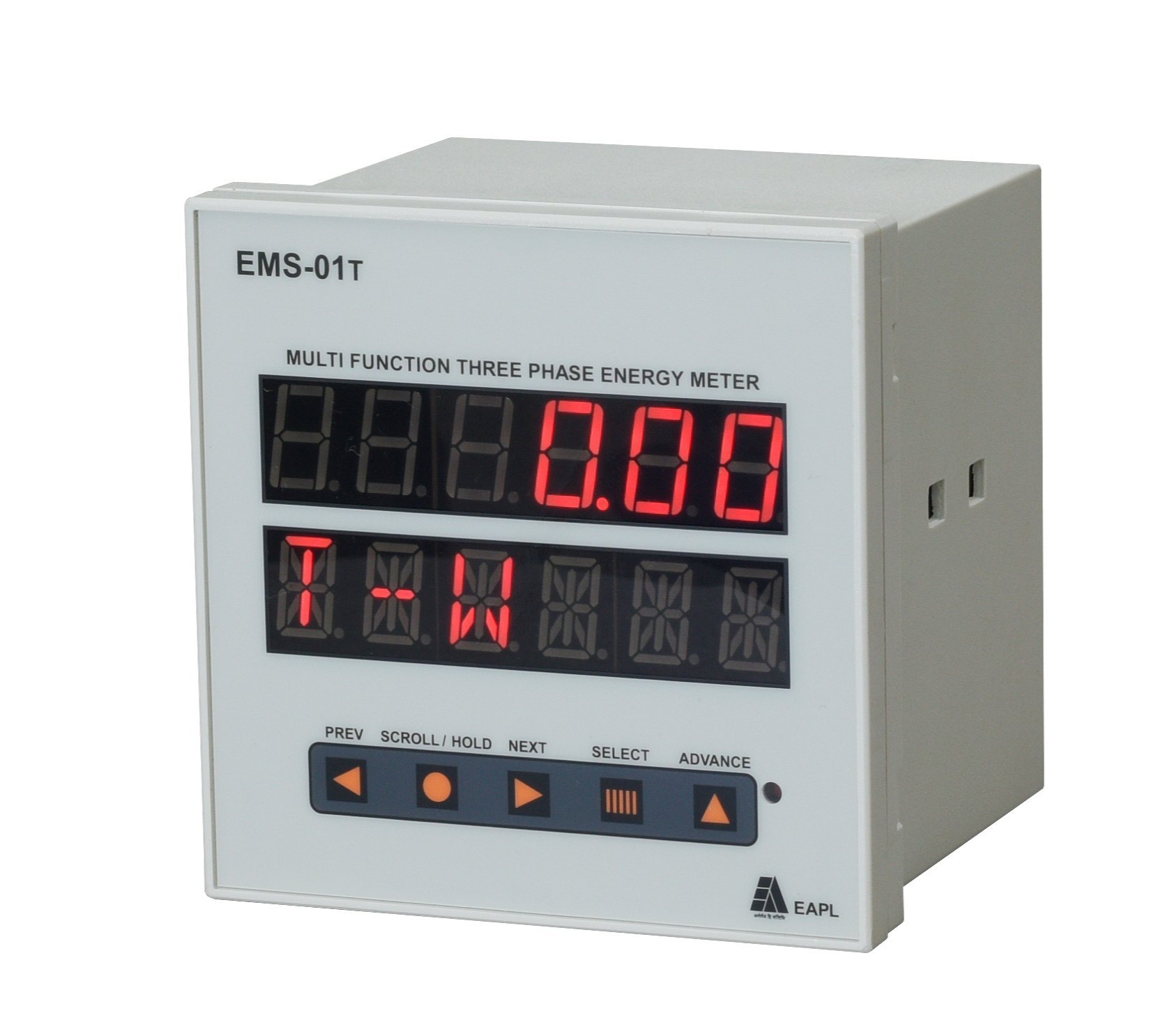

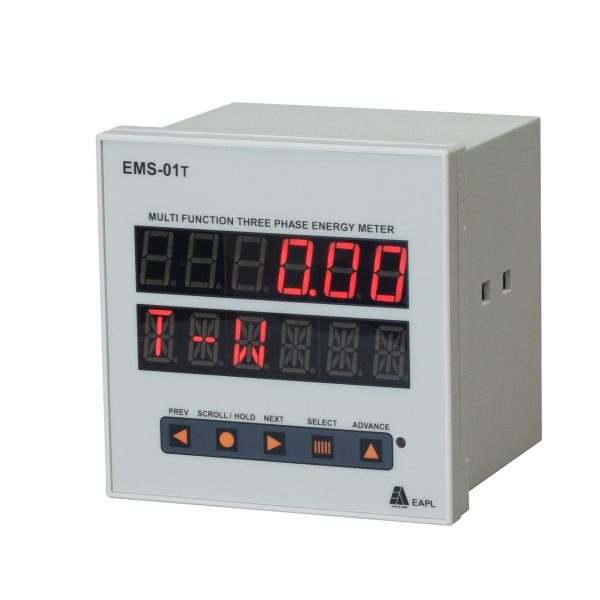

EMS-01T | Multifunction Meter with THD and RS485, 3Phase 4Wire, Class 1 EAPL
Key Features:
- Advanced Multifunction Meter – Measures voltage, current, power, energy, frequency, and power factor.
- Total Harmonic Distortion (THD) Monitoring – Ensures power quality by analyzing harmonic distortions.
- RS485 Communication – Enables seamless integration with SCADA, PLC, and energy management systems.
- 3-Phase 4-Wire System – Suitable for balanced and unbalanced load monitoring.
- Class 1 Accuracy (EAPL Certified) – High precision measurements for reliable energy auditing.
- Large LCD Display – Clear visibility of real-time electrical parameters.
- Modbus RTU Protocol – Facilitates easy data logging and remote monitoring.
- Wide Voltage Range – Compatible with various industrial and commercial applications.
- Compact & DIN Rail Mountable – Space-saving and easy installation.
Applications:
- Industrial power monitoring
- Commercial energy management
- Renewable energy systems
- Smart grid applications
- HVAC and electrical substations
Technical Specifications:
| Parameter | Specification |
|---|---|
| Voltage Range | 3×230/400V AC |
| Current Range | 5A (CT configurable) |
| Frequency | 45-65Hz |
| Accuracy Class | Class 1 (IEC 62053-21) |
| Communication | RS485 (Modbus RTU) |
| THD Measurement | Up to 15th harmonic |
| Operating Temperature | -10°C to +55°C |
| Protection | IP20 (Front Panel) |
Why Choose EMS-01T?
The EMS-01T Multifunction Meter is a high-precision, cost-effective solution for real-time energy monitoring and power quality analysis. Its robust design, compliance with international standards, and seamless connectivity make it ideal for industrial and commercial installations.
Order Now at MyElectric.in!
Upgrade your energy monitoring system with the EMS-01T. Buy now for reliable, accurate, and efficient power measurement.
