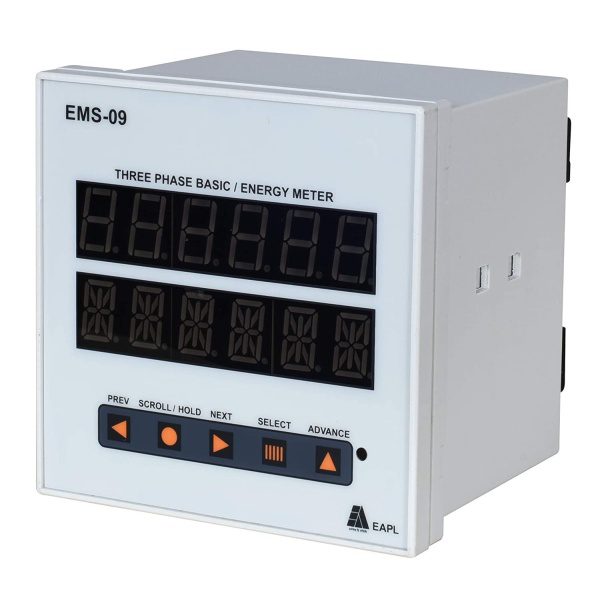

EMS-09 | Basic/Energy Meter, 3Phase 4Wire, Class 1 EAPL
Key Features
- High Accuracy: Class 1.0 accuracy as per IEC 62053-21 standards
- 3-Phase 4-Wire System: Suitable for balanced and unbalanced loads
- Multi-Function Display: Shows active energy (kWh), voltage, current, power factor, and frequency
- Pulse Output: LED pulse output for energy measurement verification
- Wide Voltage Range: Operates from 230V AC (phase-neutral), 400V AC (phase-phase)
- Tamper Detection: Built-in reverse flow and tamper detection
- DIN Rail Mounting: Easy installation with standard DIN rail fitting
- LCD Display: Clear 6-digit LCD for easy reading
- MID Certified: Meets MID (Measuring Instruments Directive) requirements
- Compact Design: Space-saving 4-module width
Technical Specifications
| Model | EMS-09 |
| Type | Electronic Energy Meter |
| Standard | IEC 62053-21, Class 1.0 |
| Voltage | 3 x 230/400V AC |
| Current | 5(60)A, 10(100)A options |
| Frequency | 50Hz |
| Display | 6-digit LCD |
| Pulse Output | 1000 imp/kWh |
| Operating Temperature | -25°C to +55°C |
| Dimensions | 72 x 90 x 64 mm |
| Weight | Approx. 300g |
Applications
- Commercial establishments
- Industrial power monitoring
- Residential apartments
- Sub-metering applications
- Energy management systems
Why Choose Our Energy Meter?
The EMS-09 3-phase energy meter offers reliable and precise energy measurement for your electrical systems. With its Class 1 accuracy and robust construction, it’s ideal for both commercial and industrial applications where precise energy monitoring is essential. The clear LCD display and pulse output make it easy to verify readings and integrate with energy management systems.
Package Includes
- 1 x EMS-09 Energy Meter
- Installation Manual
- Calibration Certificate
