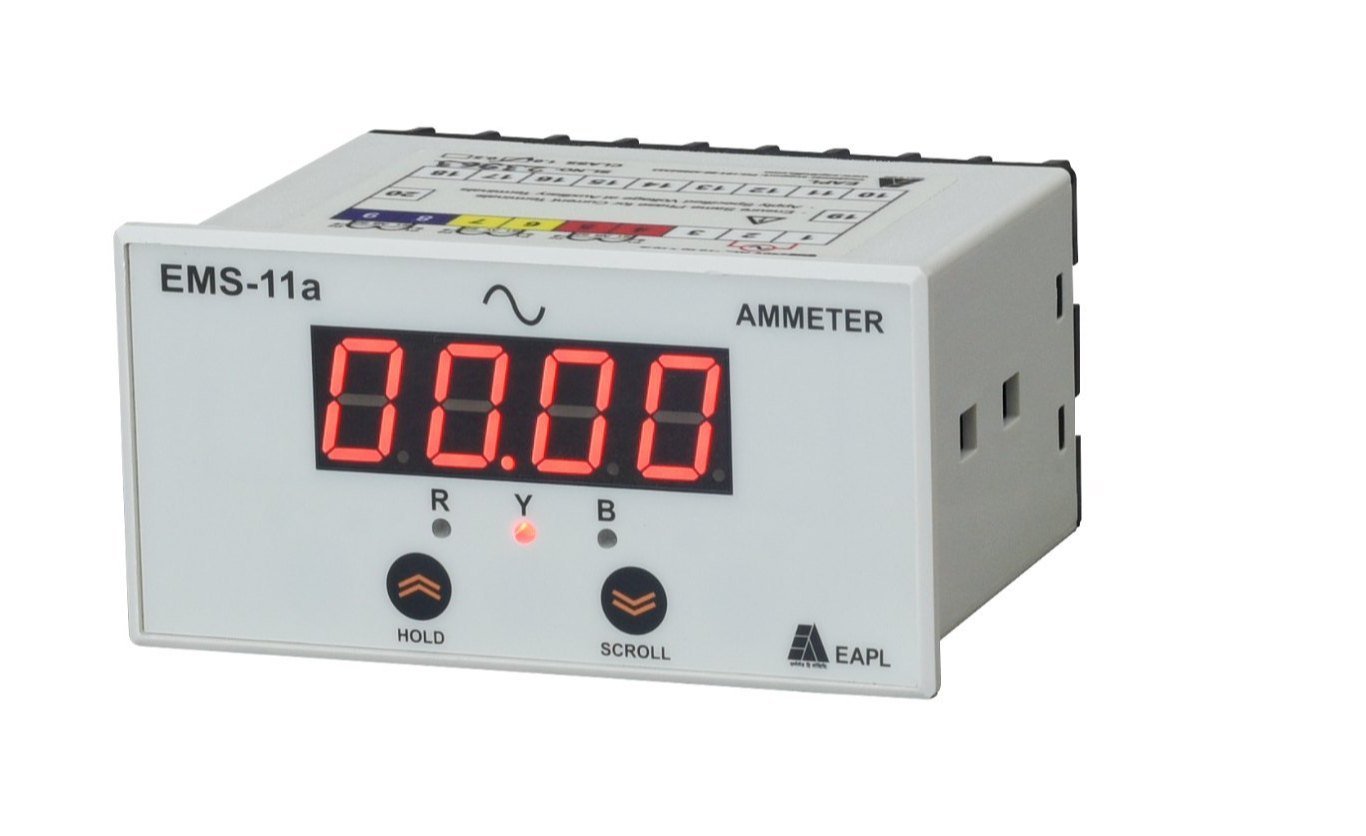

EMS-11 | Ammeter, Size 96x96mm, 3-Phase 4-Wire, Class 1.0, EAPL Certified
Key Features:
- Model: EMS-11 Digital Ammeter
- Display Type: High-brightness LED/LCD (as per variant)
- Measurement Range: Customizable (e.g., 0-5A, 0-9999A with CT)
- Accuracy Class: 1.0 as per IEC standards
- Phase Configuration: 3-Phase 4-Wire system compatible
- Mounting Size: 96x96mm panel cutout
- Certification: EAPL approved for quality assurance
- Input: Direct or CT-operated (selectable)
- Operating Voltage: 80-300V AC/DC (wide range)
- Communication: Optional RS485 Modbus RTU
Applications:
Ideal for industrial control panels, substations, DG sets, and commercial electrical systems requiring precise current monitoring in 3-phase networks.
Technical Specifications:
| Parameter | Details |
|---|---|
| Brand | ElectroMechanica Solutions |
| Model No. | EMS-11 |
| Display | 4-digit 7-segment LED/LCD |
| Accuracy | ±1% of reading ±1 digit |
| Frequency | 45-65Hz |
| Insulation | 2kV AC for 1 minute |
| Operating Temp. | -10°C to +55°C |
| Humidity | ≤85% RH (non-condensing) |
| Warranty | 2 years manufacturer warranty |
Why Choose Our Ammeter?
- High-precision measurement with Class 1.0 accuracy
- Robust construction for industrial environments
- Easy front-panel mounting with 96x96mm standard size
- Compatible with all standard current transformers
- Low power consumption design
Package Includes:
- 1x EMS-11 Ammeter unit
- Mounting screws
- User manual
- Certificate of calibration
