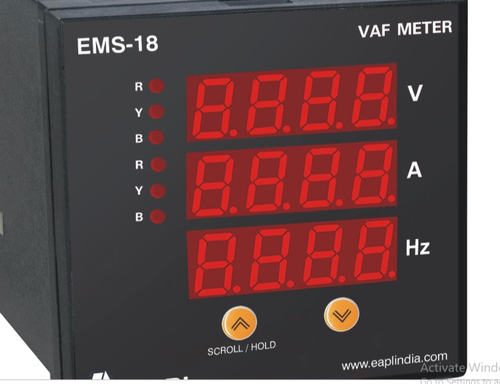

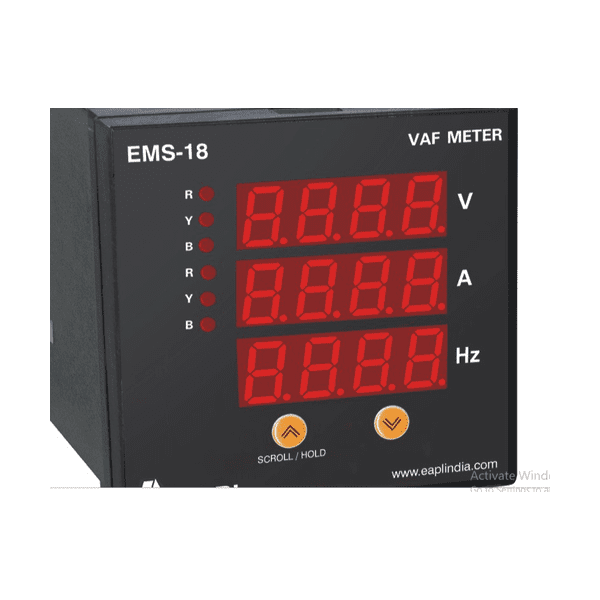

EMS-18 | VAF Meter (96×96), 3-Phase 4-Wire, EAPL Approved
Key Features:
- Compact Size: 96x96mm panel-friendly design
- 3-Phase 4-Wire: Accurate measurement for balanced/unbalanced loads
- EAPL Approved: Certified for reliability and compliance
- Voltage Monitoring: Tracks phase-to-phase and phase-to-neutral voltages
- Current Measurement: Precise current sensing up to [X]A
- Power Factor Display: Real-time PF monitoring
- Energy Calculation: Measures active/reactive/apparent energy
- LCD Display: Clear backlit screen for visibility
- Pulse Output: For energy recording systems
- Modbus RTU: RS-485 communication support
Technical Specifications:
| Parameter | Specification |
|---|---|
| Voltage Range | 3×230/400V AC ±20% |
| Current Input | 5A via CT (higher ranges optional) |
| Frequency | 45-65Hz |
| Accuracy Class | 1.0 for active energy, 2.0 for reactive |
| Operating Temp | -10°C to +55°C |
| Ingress Protection | IP52 front panel |
| Mounting | Panel-mounted (96x96mm cutout) |
| Standards | IEC 62053-21, IS 13779 |
Applications:
Ideal for commercial establishments, industrial plants, data centers, and utility substations requiring precise 3-phase energy monitoring with compact dimensions.
Why Choose Our VAF Meter?
The EMS-18 96×96 VAF meter combines space efficiency with advanced 3-phase measurement capabilities. EAPL certification ensures regulatory compliance for billing-grade accuracy in India. Its Modbus interface enables seamless integration with SCADA and energy management systems.
Installation Notes:
Requires professional installation by licensed electrician. Compatible with standard DIN panels. Includes mounting hardware and terminal covers.
