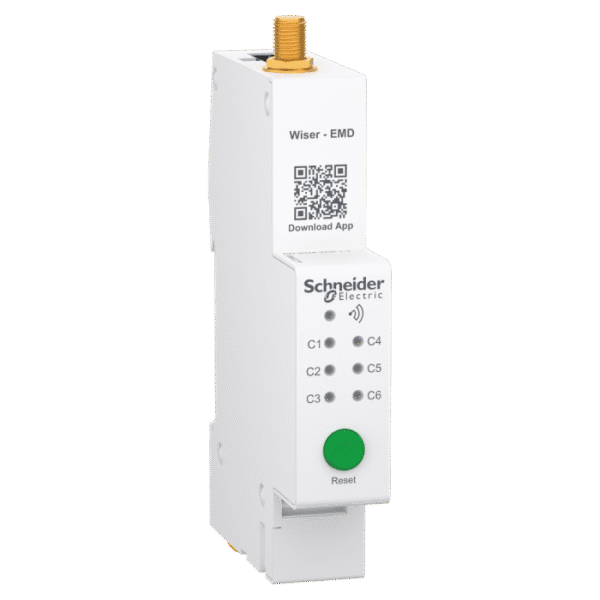

ENMOD1P | Energy Monitoring Device, Single Phase – Schneider Electric

Product Overview

The ENMOD1P is a high-precision single-phase energy monitoring device from Schneider Electric, designed to provide accurate measurement and monitoring of electrical parameters in residential and commercial applications.

Key Features

Accurate Energy Measurement: Measures active, reactive, and apparent energy with high precision
Comprehensive Monitoring: Tracks voltage, current, power factor, frequency, and other key parameters
Modbus Communication: RS485 interface with Modbus RTU protocol for seamless integration
Compact Design: DIN rail mounting for easy installation in distribution boards
Wide Voltage Range: Operates from 80V to 300V for versatile applications
LCD Display: Clear visualization of measured parameters
Pulse Output: For energy meter applications and external device integration

Technical Specifications

Parameter	Specification
Phase	Single Phase
Voltage Range	80V – 300V
Current Input	5A (via CT)
Accuracy Class	1.0 (Active Energy)
Communication	RS485 Modbus RTU
Display	LCD with backlight
Mounting	DIN Rail (35mm)
Dimensions	90mm x 70mm x 65mm

Applications

Residential energy monitoring
Commercial power monitoring
Sub-metering applications
Energy management systems
Smart grid applications

Why Choose Schneider Electric?

Schneider Electric is a global leader in energy management and automation solutions, offering reliable, high-quality products backed by extensive technical support and warranty.
