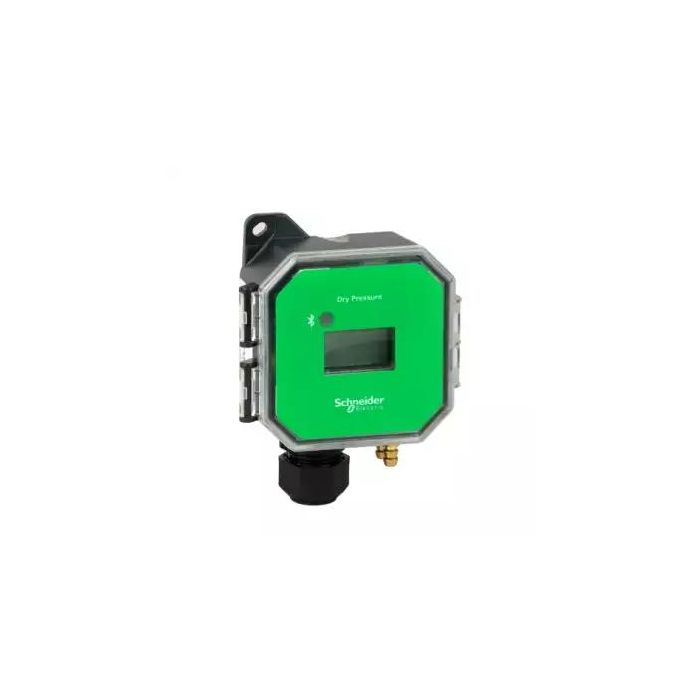

EPD302LCD | Pressure,Dry,Duct,Lcd,0-10 In Wc,S6 – Schneider Electric

Name: EPD302LCD | Pressure,Dry,Duct,Lcd,0-10 In Wc,S6 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: EPD302LCD
Price: 16401.82 INR
Availability: BackOrder

SKU: EPD302LCD

Original price was: ₹28,279.00.Current price is: ₹16,401.82. Excl. GST

Dispatch By : 5 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the Schneider Electric EPD302LCD electrical component from the EP range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include IP65. myelectric.in stocks the EPD302LCD | Pressure,Dry,Duct,Lcd,0-10 In Wc,S6 for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	EPD302LCD
Category	Electrical Component
Main
Range of product	EP
Product or component type	Pressure transmitter sensor
Sensor model	EPD302LCD
Type of measurement	Differential pressure
Device application	Duct pressure monitoring Filter monitoring Fan monitoring VAV control Air velocity monitoring
Burst pressure	5 psid (34.5 kPa)
Product certifications	CE
Controlled fluid	Air Gas
Display size	17 x 28 mm
Fitting size	6 mm (0.24″)
Fitting type	Male
IP degree of protection	IP65
location	Plant room
Mounting support	Duct
Depth	42 mm
Height	112 mm
Probe diameter	7 mm
Probe length	188 mm
Product weight	0.125 kg
Width	88 mm
Pressure measurement drift	Less than 0.5 %
Pressure measurement range	0…1″ W.C. (0…250 Pa) 0…2.5″ W.C. (0…500 Pa) 0…5″ W.C. (0…1000 Pa) 0…10″ W.C. (0…2500 Pa)
Ambient air temperature for operation	-20…60 °C
Standards	EN 61000-6-3 EN 61000-6-1 EN 61326-1 EN 61326-2-3
Calibration certificate	None
Local signalling	Red/green/blue LED
[Us] rated supply voltage	12…30 V DC 24 V AC
Complementary
Mounting mode	Panel
Output type	Analog 3-wire 0…5 V DC Analog 3 wires 0…10 V DC Analog 4…20 mA
Accuracy	+/- 1 % FS
Material	Brass: fitting
Electrical connection	– AWG 22
Display type	LCD
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	17.1 cm
Package 1 Width	20.3 cm
Package 1 Length	7 cm
Package 1 Weight	160 g
Contractual warranty
Warranty (in months)	18
