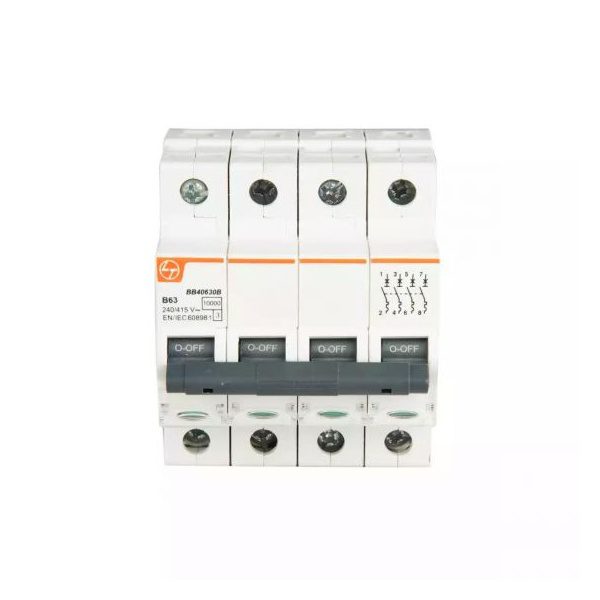

EXORA MCB 63A FP 415V AC 10kA B Curve | L&T – BB40630B

Name: L&T 63A FP 415V AC MCB, B Curve 10kA - BB40630B
Brand: Lauritz Knudsen (L&T)
SKU: BB40630B
Price: 1634.00 INR
Availability: OutOfStock

SKU: BB40630B

Original price was: ₹3,800.00.Current price is: ₹1,634.00. Excl. GST

Out of stock

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The BB40630B BB40630B is a miniature circuit breaker (mcb), engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 63 A, 415V AC, 4 Poles. Buy the EXORA MCB 63A FP 415V AC 10kA B Curve | L&T online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	BB40630B
Part Number / SKU	BB40630B
Category	Miniature Circuit Breaker (MCB)
Current Rating	63 A
Voltage Rating	415V AC
Poles	4 Poles
Breaking Capacity	10 kA
Tripping Curve	Curve B
Rated Voltage	230/400V AC
Rated Frequency	50/60 Hz
Magnetic Trip Range	3–5 × In (per IEC 60898-1)
Trip Mechanism	Thermal-magnetic (bimetal overload + electromagnetic short-circuit)
Mounting	35mm DIN rail (EN 60715)
Width	72 mm (4 × 18mm modules)
Electrical Endurance	≥ 20,000 operating cycles (per IEC 60898-1)
Pollution Degree	3 (per IEC 60664-1)
Standard	IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial)
Certifications	BIS certified where applicable

⚡ Key Features

Protects circuits at 63 A with 10 kA short-circuit breaking capacity — rated for light industrial and commercial distribution boards.
Curve B tripping characteristic — optimised for cable and resistive loads (lighting, heating, socket circuits) — trips magnetically at 3–5× rated current.
4 Poles — protects a three-phase four-wire circuit with switched neutral; fits standard 35mm DIN rail in distribution boards.
Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised BB40630B product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the BB40630B protect at its rated 63 A?

A: The BB40630B is rated to carry and protect circuits up to 63 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 63 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: What does the 10 kA breaking capacity on the BB40630B mean in practice?

A: Breaking capacity (10 kA) is the maximum prospective short-circuit current the BB40630B can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 10 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: Why is Curve B specified for the BB40630B and what loads is it optimised for?

A: Curve B on the BB40630B trips magnetically at 3–5× rated current, making it ideal for resistive loads such as incandescent lighting, electric heaters, and PTC elements. Using the wrong curve can cause nuisance tripping (too sensitive) or inadequate protection (not sensitive enough). Always match the curve to the load’s inrush characteristics.

Q: Is the BB40630B suitable for both single-phase and three-phase systems?

A: The BB40630B with 4 Poles can protect three-phase circuits. Each pole simultaneously interrupts one phase — ensuring all phases are de-energised on a fault.

Q: Can the BB40630B be DIN rail mounted in any standard distribution board?

A: Yes. This BB40630B MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.
