EZ9ETND08 | EZ9 DB 8 way TPN DD – Schneider Electric

Name: EZ9ETND08 | EZ9 DB 8 way TPN DD - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: EZ9ETND08
Price: 4394.84 INR
Availability: OutOfStock

SKU: EZ9ETND08

Original price was: ₹9,554.00.Current price is: ₹4,394.84. Excl. GST

Out of stock

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

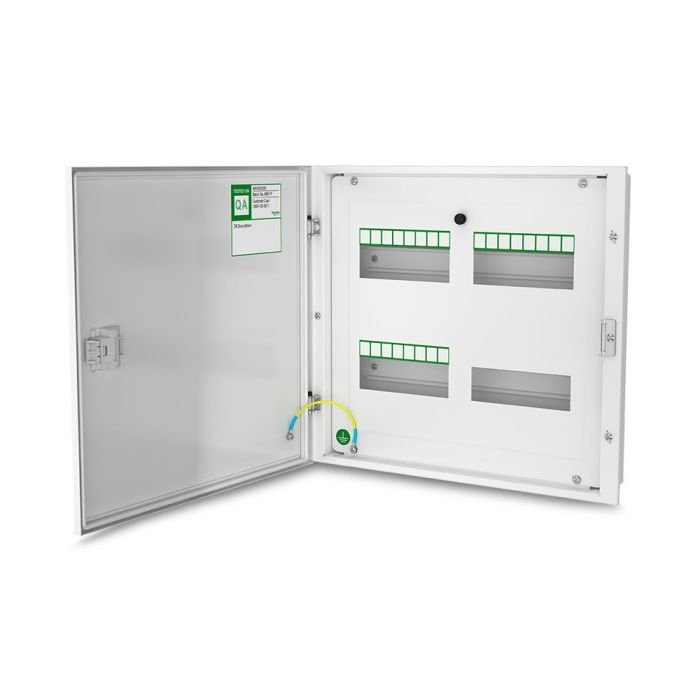

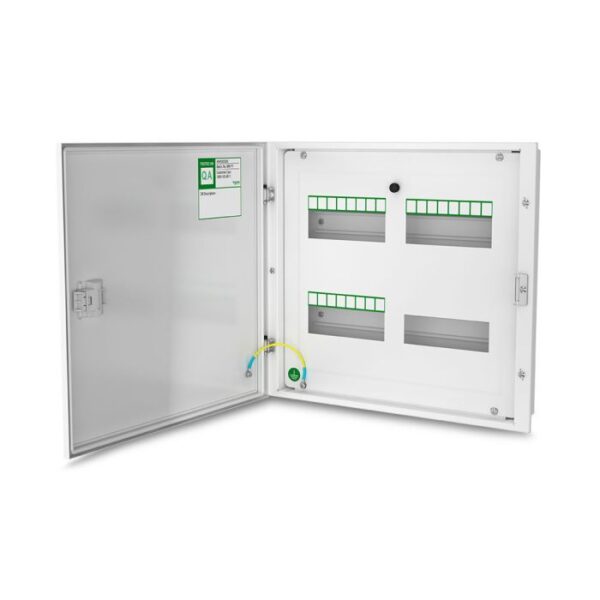

The Schneider Electric EZ9ETND08 is a distribution board from the Easy9 range, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 63 A, 415 V, 4 Poles. Buy the EZ9ETND08 | EZ9 DB 8 way TPN DD online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	EZ9ETND08
Category	Distribution Board
Main
Range	Easy9
Product name	TPN
Device application	Low voltage electrical distribution
Product or component type	Empty consumer unit
enclosure type	Metal enclosure
Provided equipment	removable gland plates removable centre plates blanking plate earthing bar comb busbar earthing wire DIN rail neutral bar and cable phase voltage cable
Complementary
Enclosure mounting	Flush Surface
Total number of 18 mm modules	8 incomer 24 outgoer
Number of ways	8 ways
Protection device type	Isolator 4P 63 A 10 kA main incomer Miniature circuit breaker (MCB) 4P main incomer Miniature circuit breaker (MCB) 1P outgoer Residual current circuit breaker (RCCB) 4P main incomer Residual current circuit breaker (RCCB) 2P secondary incomer
Type of front cover	Reversible Double door
[In] rated current	63 A (maximum)
[Ue] rated operational voltage	415 V
Network frequency	50 Hz
Type of rail	DIN
Cable entry	2 knock-outs at left side 2 knock-outs at right side 7 knock-outs at top 7 knock-outs at bottom
Cable cross section	1…25 mm²
Comb busbar and distribution block compatibility	YES
Product weight	8 kg
Height	External: 422 mm
Width	External: 471 mm
Depth	External : 90 mm
Colour	White (RAL 9003)
Product compatibility	Easy9 MCB Easy9 RCCB Easy9 switch
Environment
Standards	IEC 61439
IP degree of protection	IP43 conforming to IEC 60529
IK degree of protection	IK08 conforming to IEC 62262
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12 cm
Package 1 Width	48.2 cm
Package 1 Length	53.6 cm
Package 1 Weight	8.02 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
