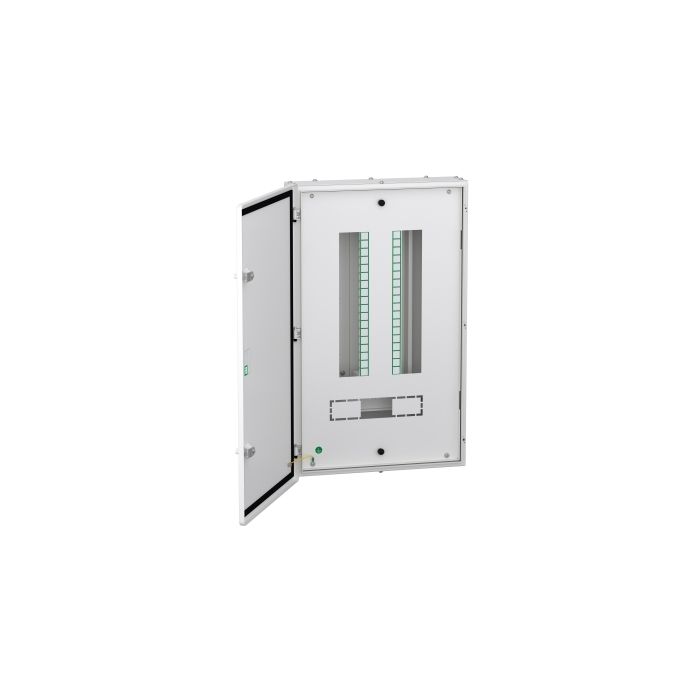

The Schneider Electric EZ9EVM12 is a distribution board from the Easy9 range, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 63 A, IP43. Buy the EZ9EVM12 | Easy9 VTPN DB 12 Ways Modular i/c online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	EZ9EVM12
Category	Distribution Board
Main
Range	Easy9
Product name	VTPN
Device application	Distribution
Product or component type	Enclosure
Provided equipment	removable gland plates removable centre plates earthing bar neutral bar fishbone busbar busbar link cable shroud neutral terminal block
Complementary
Enclosure mounting	Flush Surface
Total number of 18 mm modules	36
Number of ways	12 ways
Enclosure material	Powder coated sheet steel
Protection device type	Isolator 3P or 4P 63 A main incomer Miniature circuit breaker (MCB) 3P or 4P 63 A main incomer Residual current circuit breaker (RCCB) 3P or 4P 63 A main incomer Residual current circuit breaker with overcurrent protection (RCBO) 3P or 4P 63 A main incomer Miniature circuit breaker (MCB) 1P or 3P 63 A outgoer
[In] rated current	63 A
[Icw] rated short-time withstand current	17 kA for 0.25 s
[Ui] rated insulation voltage	500 V
[Uimp] rated impulse withstand voltage	4 kV
Enclosure/cubicle description	Double door enclosure
Door type	Plain
Door opening side	Reversible
Product weight	15.5 kg
Height	External: 668 mm
Width	External: 416 mm
Depth	External : 119 mm
Colour	White (RAL 9003)
Environment
Standards	IEC 61439-3
IP degree of protection	IP43
IK degree of protection	IK09
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	13 cm
Package 1 Width	44 cm
Package 1 Length	69 cm
Package 1 Weight	15.5 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
