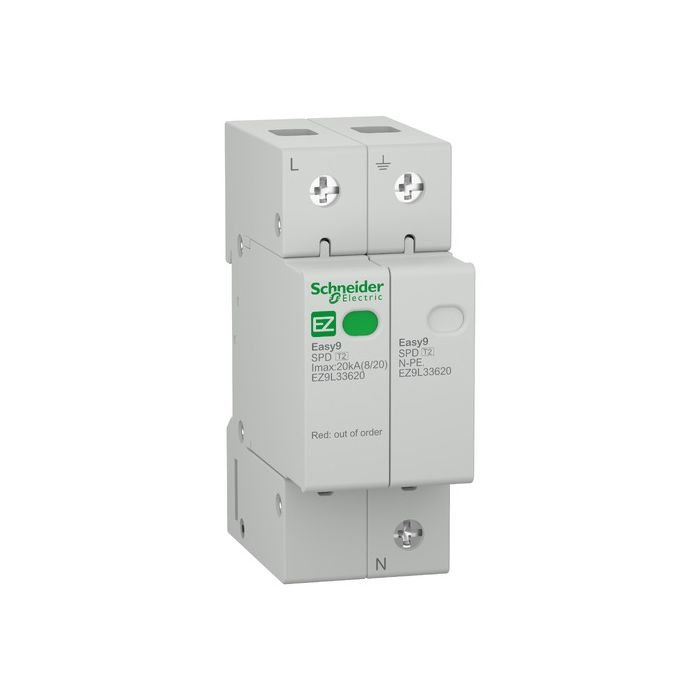

EZ9L33620 | Easy9 Surge Arrestor T2 1P-N 20kA 230V – Schneider Electric

Name: EZ9L33620 | Easy9 Surge Arrestor T2 1P-N 20kA 230V - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: EZ9L33620
Price: 2152.34 INR
Availability: BackOrder

SKU: EZ9L33620

Original price was: ₹4,679.00.Current price is: ₹2,152.34. Excl. GST

Dispatch By : 2 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric EZ9L33620 is a surge protection device (spd) from the Easy9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 230V AC, 1 Pole, IP20 on terminal:. Buy the EZ9L33620 | Easy9 Surge Arrestor T2 1P-N 20kA 230V online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	EZ9L33620
Category	Surge Protection Device (SPD)
Main
Range of product	Easy9
Product or component type	Surge arrester
Device short name	Easy9 SPD
Poles	1P + N
Remote signalling	Without
Surge arrester type	Electrical distribution network
Earthing system	TT TN-S
Disconnector device type	Associated circuit breaker at 230 V
Complementary
Surge arrester class type	Type 2
Surge arrester technology	MOV + GDT
Nominal discharge current	Common mode: 10 kA (N/PE) Common mode: 10 kA (L/N)
Maximum discharge current	Differential mode: 20 kA L/N Differential mode: 20 kA N/PE
[Uc] maximum continuous operating voltage	Differential mode: 275 V L/N Differential mode: 275 V N/PE
Maximum [Up] voltage protection level	Differential mode <1.3 kV type 2 L/N
Local signalling	Green and red flag
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	4
Height	90 mm
Width	36 mm
Depth	66.2 mm
Colour	Grey (RAL 7035)
Response time	<= 25 ns
Connections – terminals	Tunnel type terminal (downside) 5…35 mm² solid or flexible
Tightening torque	3.5 N.m
Environment
Standards	IEC 61643-11
Product certifications	GOST EAC
IP degree of protection	IP20 on terminal:
Relative humidity	5…90 %
Operating altitude	2000 m
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-5…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.300 cm
Package 1 Width	7.000 cm
Package 1 Length	10.000 cm
Package 1 Weight	213.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	57
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	12.807 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

230V AC maximum continuous operating voltage (Uc) — remains permanently connected to the live supply; clamping only activates during overvoltage events.
MOV (Metal Oxide Varistor) clamping technology — responds in nanoseconds (< 25ns) to clamp transient overvoltages before they reach connected sensitive electronics.
Visual end-of-life indicator — green flag (healthy) turns red when the MOV has absorbed its rated energy and must be replaced; ensures protection level is always verified.
35mm DIN rail mounting — installs inside the main distribution board at the point of entry; protects the entire downstream installation in a single device.
Manufactured to IEC 61643-11 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What does the 20 kA breaking capacity on the EZ9L33620 mean in practice?

A: Breaking capacity (20 kA) is the maximum prospective short-circuit current the EZ9L33620 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 20 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: After a short-circuit trip on the EZ9L33620, can it be reset and reused immediately?

A: After a short-circuit trip, do not immediately reset the EZ9L33620. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 20 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
