EZ9L33745 | Easy9 Surge Arrestor T2 3P-N 45kA 400V – Schneider Electric

Name: EZ9L33745 | Easy9 Surge Arrestor T2 3P-N 45kA 400V - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: EZ9L33745
Price: 5462.96 INR
Availability: BackOrder

SKU: EZ9L33745

Original price was: ₹11,876.00.Current price is: ₹5,462.96. Excl. GST

Dispatch By : 2 Weeks

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

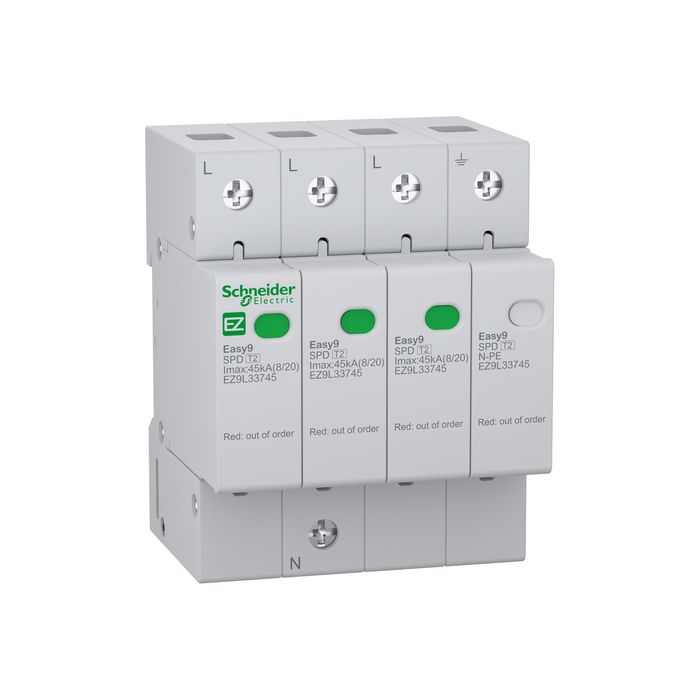

The Schneider Electric EZ9L33745 is a surge protection device (spd) from the Easy9 range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 400V AC, 3 Poles, IP20 on terminal:. Buy the EZ9L33745 | Easy9 Surge Arrestor T2 3P-N 45kA 400V online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	EZ9L33745
Category	Surge Protection Device (SPD)
Main
Range of product	Easy9
Product or component type	Surge arrester
Device short name	Easy9 SPD
Poles	3P + N
Remote signalling	Without
Surge arrester type	Electrical distribution network
Earthing system	TN-S TT
Disconnector device type	Associated circuit breaker at 400 V
Complementary
Surge arrester class type	Type 2
Surge arrester technology	MOV + GDT
Nominal discharge current	Common mode: 20 kA (N/PE) Common mode: 20 kA (L/N)
Maximum discharge current	Common mode: 45 kA N/PE Common mode: 45 kA L/N
[Uc] maximum continuous operating voltage	Differential mode: 275 V L/N Differential mode: 275 V N/PE
Maximum [Up] voltage protection level	Differential mode <1.5 kV type 2 L/N
Local signalling	Green and red flag
Mounting mode	Clip-on
Mounting support	DIN rail
9 mm pitches	8
Height	90 mm
Width	72 mm
Depth	66.2 mm
Colour	Grey (RAL 7035)
Response time	<= 25 ns
Connections – terminals	Tunnel type terminal (downside) 5…35 mm² solid or flexible
Tightening torque	3.5 N.m
Environment
Standards	IEC 61643-11
Product certifications	GOST EAC
IP degree of protection	IP20 on terminal:
Relative humidity	5…90 %
Operating altitude	2000 m
Ambient air temperature for operation	-5…60 °C
Ambient air temperature for storage	-5…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.200 cm
Package 1 Width	7.800 cm
Package 1 Length	10.000 cm
Package 1 Weight	425.000 g
Unit Type of Package 2	S03
Number of Units in Package 2	24
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	10.783 kg
Unit Type of Package 3	P06
Number of Units in Package 3	192
Package 3 Height	75.000 cm
Package 3 Width	80.000 cm
Package 3 Length	60.000 cm
Package 3 Weight	94.266 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

400V AC maximum continuous operating voltage (Uc) — remains permanently connected to the live supply; clamping only activates during overvoltage events.
MOV (Metal Oxide Varistor) clamping technology — responds in nanoseconds (< 25ns) to clamp transient overvoltages before they reach connected sensitive electronics.
Visual end-of-life indicator — green flag (healthy) turns red when the MOV has absorbed its rated energy and must be replaced; ensures protection level is always verified.
35mm DIN rail mounting — installs inside the main distribution board at the point of entry; protects the entire downstream installation in a single device.
Manufactured to IEC 61643-11 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What does the 45 kA breaking capacity on the EZ9L33745 mean in practice?

A: Breaking capacity (45 kA) is the maximum prospective short-circuit current the EZ9L33745 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 45 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

Q: After a short-circuit trip on the EZ9L33745, can it be reset and reused immediately?

A: After a short-circuit trip, do not immediately reset the EZ9L33745. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 45 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
