EZAPF10044R20N | EasyLogic APF 100A 400V rack IP20 new - Schneider Electric - Image 1

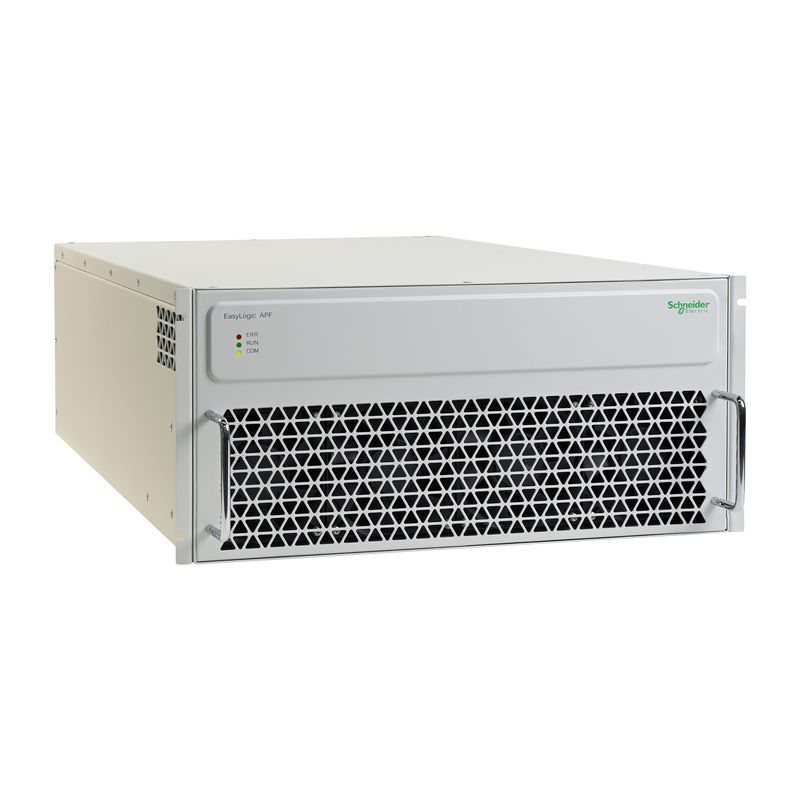

    EZAPF10044R20N | EasyLogic APF 100A 400V rack IP20 new – Schneider Electric

    SKU: EZAPF10044R20N

    Original price was: R$82,516.37.Current price is: R$70,964.07. Excl. GST

    Dispatch By : 19 Weeks

    Dispatch By : 19 Weeks

    16 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangeEasyLogic
    Product nameEasyLogic APF
    Product or component typeActive harmonic filter
    Network number of phases3 phases + neutral
    3 phases
    nominal output current100 A
    Complementary
    Network configuration3 or 4 wires
    Network rated voltage320…460 V AC
    Network frequency50 Hz +/- 3 Hz auto sensing
    60 Hz +/- 3 Hz auto sensing
    Maximum permissible voltage1.15 x Un
    Operating modePhase harmonic correction
    Neutral harmonic correction up to 300% unit rating
    Power factor correction
    Main load balancing
    THDI5 %
    Reactive power rating72 kvar 400 V AC
    Type of installationIndoor installation
    Mounting modeRack-mounted
    Heat dissipationWith forced ventilation
    Electromagnetic compatibilityElectromagnetic emission conforming to EN/IEC 61000-6-4
    Electromagnetic immunity conforming to EN/IEC 61000-6-2
    Accessibility for operationFront
    Location of connectionRear
    Net weight57 kg
    Height240 mm
    Width500 mm
    Depth790 mm
    Environment
    IP degree of protectionIP20
    Operating altitude<= 2000 m
    Ambient air temperature for operation-10…50 °C
    Relative humidity0…95 %
    StandardsIEC 62477-1
    IEC 61000-6-2
    IEC 61000-6-4
    Product certificationsCE
    Ambient air temperature for storage-30…70 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height48 cm
    Package 1 Width57 cm
    Package 1 Length92 cm
    Package 1 Weight71 kg
