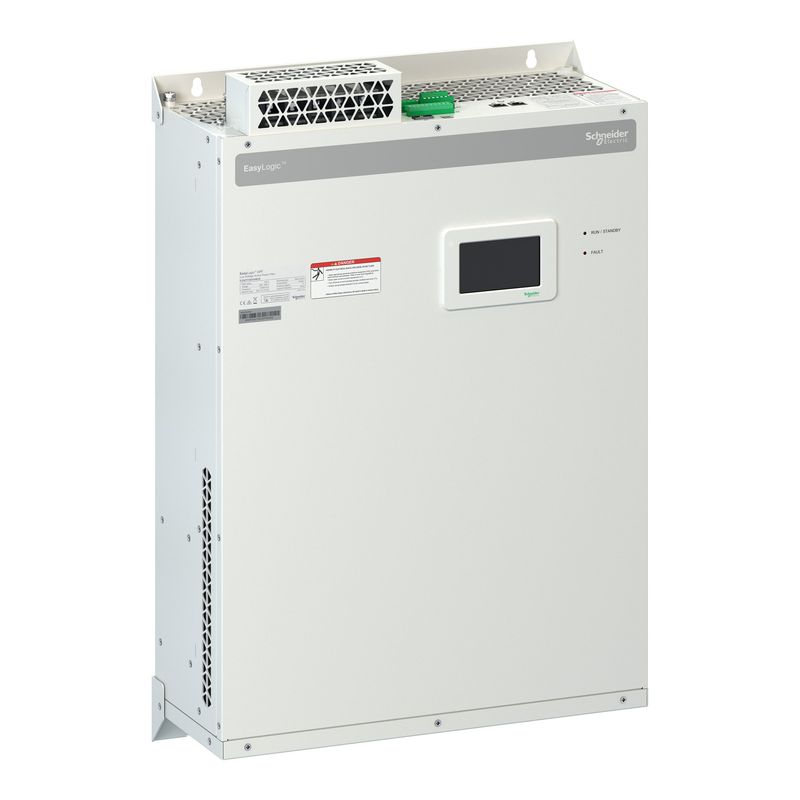

EZAPF10044W20 | EasyLogic APF 100A 400V wall mount IP20 – Schneider Electric

Name: EZAPF10044W20 - Active harmonic filter EasyLogic APF module 100A, 400V | Schneider Electric
Brand: Schneider Electric
SKU: EZAPF10044W20
Price: 824643.68 INR
Availability: BackOrder

SKU: EZAPF10044W20

Original price was: ₹958,888.00.Current price is: ₹824,643.68. Excl. GST

Dispatch By : 13 Weeks

10 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	EasyLogic
Product name	EasyLogic APF
Product or component type	Active harmonic filter
Network number of phases	3 phases 3 phases + neutral
nominal output current	100 A
Complementary
Network configuration	3 or 4 wires
Network rated voltage	240…460 V AC
Network frequency	50 Hz +/- 3 Hz auto sensing 60 Hz +/- 3 Hz auto sensing
Maximum permissible voltage	1.15 x Un
Operating mode	Phase harmonic correction Neutral harmonic correction up to 300% unit rating Power factor correction Main load balancing
THDI	5 %
Reactive power rating	72 kvar 415 V AC
Type of installation	Indoor installation
Mounting mode	Wall-mounted
Heat dissipation	With forced ventilation
Electromagnetic compatibility	Electromagnetic emission class A conforming to EN/IEC 61000-6-4 Electromagnetic immunity conforming to EN/IEC 61000-6-2
Accessibility for operation	Front
Location of connection	Top
Net weight	41 kg
Height	750 mm
Width	507 mm
Depth	205 mm
Colour	Grey (Pantone 1C)
Environment
Environmental characteristic	Operating: 3C2 conforming to IEC 60721-3-3 Operating: 3S6 conforming to IEC 60721-3-3 Storage: 3C3 conforming to IEC 60721-3-3 Storage: 3S7 conforming to IEC 60721-3-3
IP degree of protection	IP20
Operating altitude	<= 1500 m
Ambient air temperature for operation	-10…40 °C
Derating factor	1 % per 100 m 40…45 °C > 1500…3700 m Without derating 40…45 °C 80 % of In 45…50 °C
Relative humidity	0…90 %
PCBA protection	Conformal coated
Standards	IEC 62477-1 EN 61000-6-2 EN 61000-6-4 IEEE 519-2014 ISO 9001
Product certifications	CE
Ambient air temperature for storage	-20…70 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	40.7 cm
Package 1 Width	58.7 cm
Package 1 Length	78.7 cm
Package 1 Weight	50 kg
Unit Type of Package 2	P12
Number of Units in Package 2	2
Package 2 Height	94.3 cm
Package 2 Width	80 cm
Package 2 Length	120 cm
Package 2 Weight	114 kg
Contractual warranty
Warranty (in months)	18
