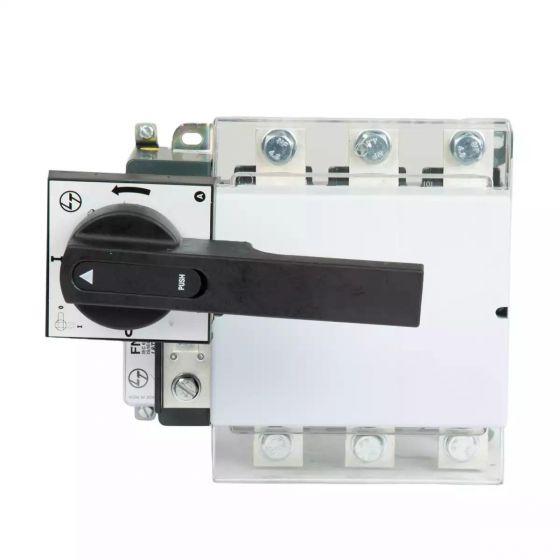

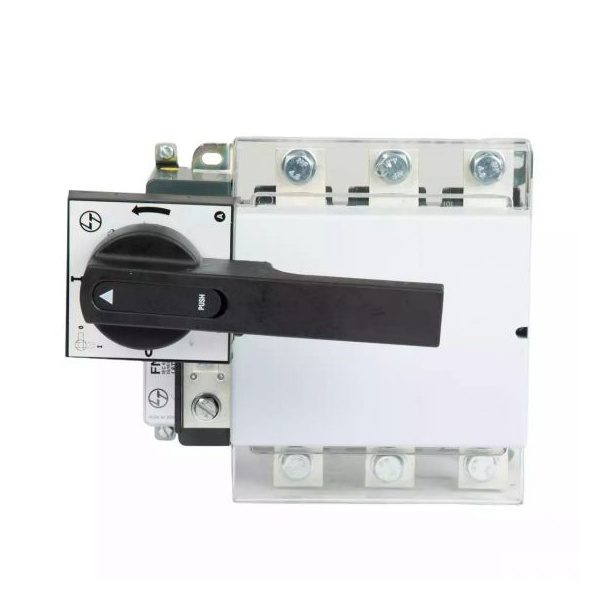

FN SD 250A TPN 415V AC Open Execution 50/60 Hz | L&T – SK95683OOOO

Name: L&T FN SD 250A TPN 415V AC Open Execution 50/60 Hz | High-Quality Electrical Switchgear
Brand: Lauritz Knudsen (L&T)
SKU: SK95683OOOO
Price: 17900.00 INR
Availability: InStock

SKU: SK95683OOOO

₹17,900.00 Excl. GST

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Sourced through authorised channels, the SK95683OOOO SK95683OOOO switch disconnector delivers dependable performance for reliable circuit protection and isolation. Key ratings include 250 A, 415V AC, 4 Poles. myelectric.in stocks the FN SD 250A TPN 415V AC Open Execution 50/60 Hz | L&T for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Parameter	Value
Brand	SK95683OOOO
Part Number / SKU	SK95683OOOO
Category	Switch Disconnector
Current Rating	250 A
Voltage Rating	415V AC
Poles	4 Poles
Frequency	60 Hz
Execution	Open (panel mounting)
Rated Frequency	50/60 Hz
Standards	IS and IEC applicable standards
Certifications	BIS certified where applicable

⚡ Key Features

250 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
415V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS and IEC applicable standards — complies with Indian BIS and IEC international safety standards.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised SK95683OOOO product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 250 A rating on the SK95683OOOO?

A: The 250 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: How many padlocks can be applied to the SK95683OOOO for LOTO safety?

A: The SK95683OOOO switch disconnector supports up to 3 simultaneous padlocks on the OFF-position locking facility. This allows multiple contractors or maintenance teams to each apply their own padlock, ensuring the circuit cannot be re-energised until all teams have removed their lock — a critical requirement for multi-contractor LOTO procedures.

Q: Can the SK95683OOOO make and break load current, or is it for isolation only?

A: This is a switch-disconnector (not a pure isolator), meaning it is rated to make and break load currents up to its rated current under AC-22A or AC-23A utilisation categories. Pure isolators must only be operated on de-energised circuits. The SK95683OOOO switch-disconnector can therefore be used for operational switching, not just maintenance isolation.
