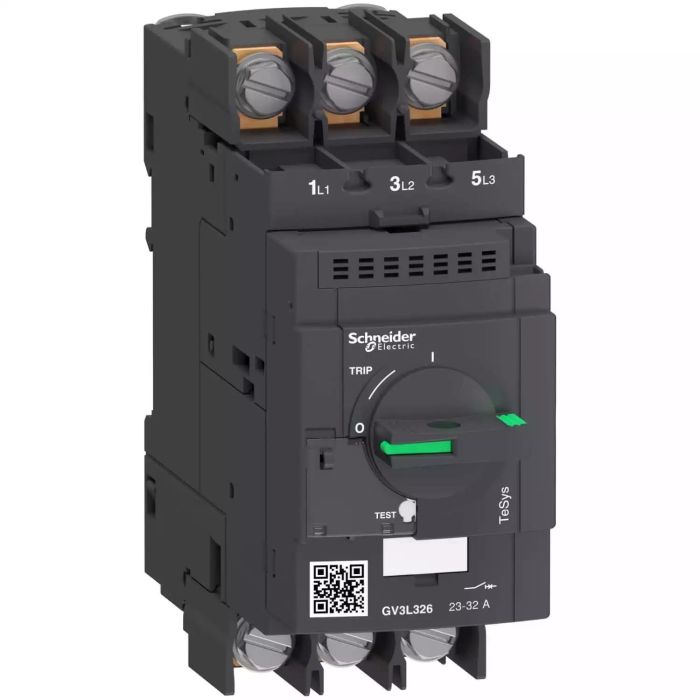

GV3L326 | GV3L MOTOR CB MAGNETIC 32A LUGS – Schneider Electric

Name: GV3L326 | GV3L MOTOR CB MAGNETIC 32A LUGS - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: GV3L326
Price: 13029.75 INR
Availability: BackOrder

SKU: GV3L326

Original price was: ₹28,955.00.Current price is: ₹13,029.75. Excl. GST

Dispatch By : 3 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-56%

GVAS225 | TeSys GV2 & GV3 – shunt trip – 220…240 V AC 50 Hz – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAS225

-57%

GVAU115 | TeSys UNDERVOLT TRIP 115V RHS MT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: GVAU115

-55%

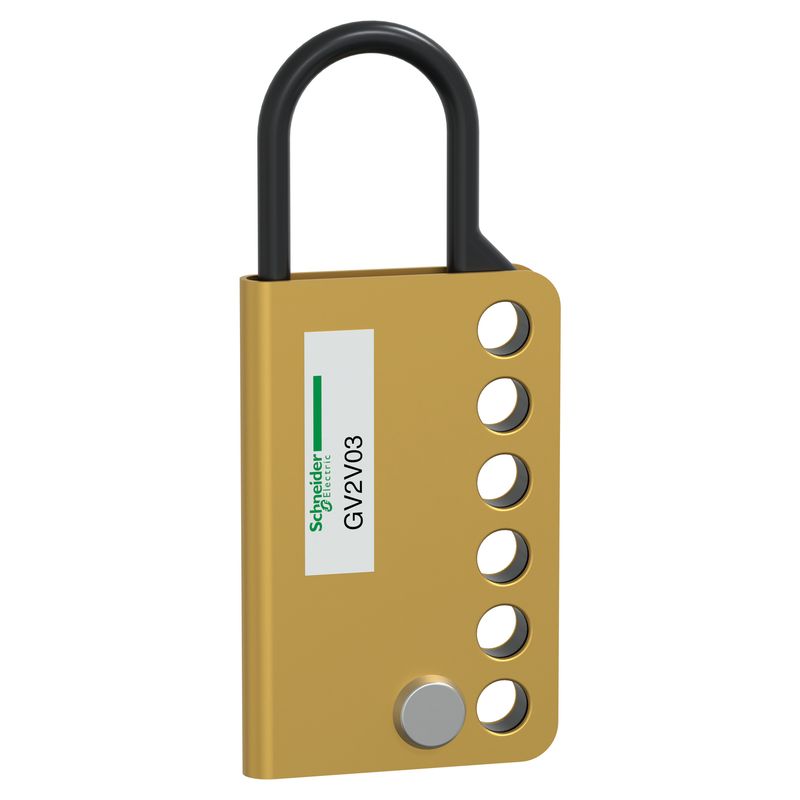

GV2V03 | PADLOCKING DEVICE FOR GV2 GV3 – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: GV2V03

-48%

A9MEM1573 | PowerTag Energy F63 3P – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: A9MEM1573

-55%

GVAS115 | GV2 GV3 SHUNT TRIP 115V RHS MOUNT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: GVAS115

-55%

GVAS385 | GV2 GV3 SHUNT TRIP 415V RHS MOUNT – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: GVAS385

-55%

GVAU385 | TeSys GV2 & GV3 – undervoltage trip – 380…400V AC 50Hz – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAU385

-55%

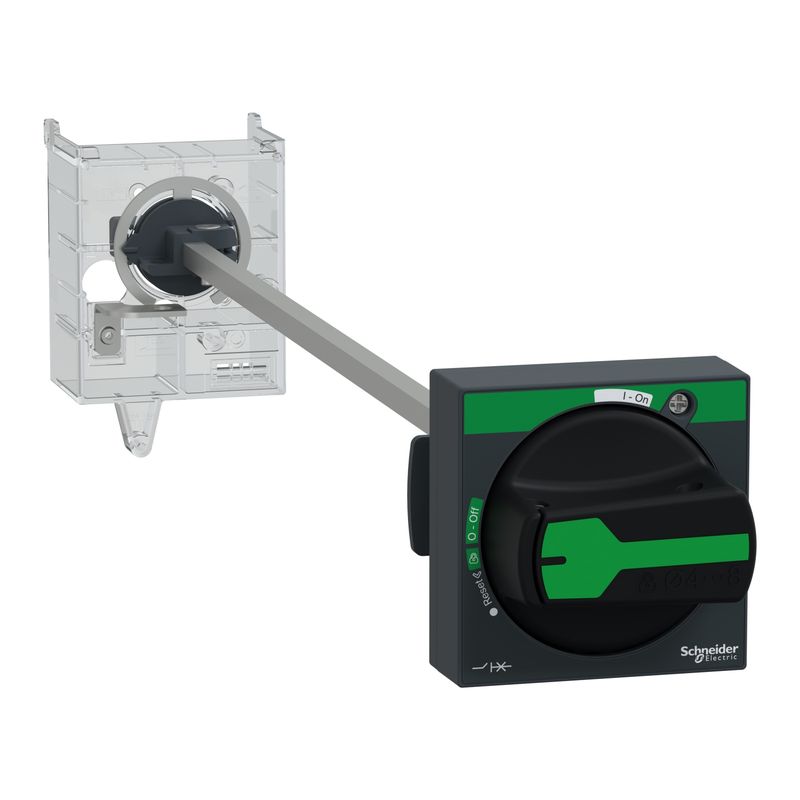

GV3APK01 | KIT HANDLE GV3 BLACK IP54 W/O TRIP – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: GV3APK01

-56%

GVAD1001 | TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NO (fault) – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAD1001

-58%

GVAE11 | TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NC – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAE11

-58%

GVAN11 | TeSys GV2 & GV3 – auxiliary contact block – 1 NO + 1 NC – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAN11

-55%

GVAD1010 | TeSys GV2 & GV3 – auxiliary contact – 1 NO + 1 NO (fault) – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAD1010

-55%

GVAM11 | GV2 GV3 AUX SHORT CCT C/O LHS – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: GVAM11

-55%

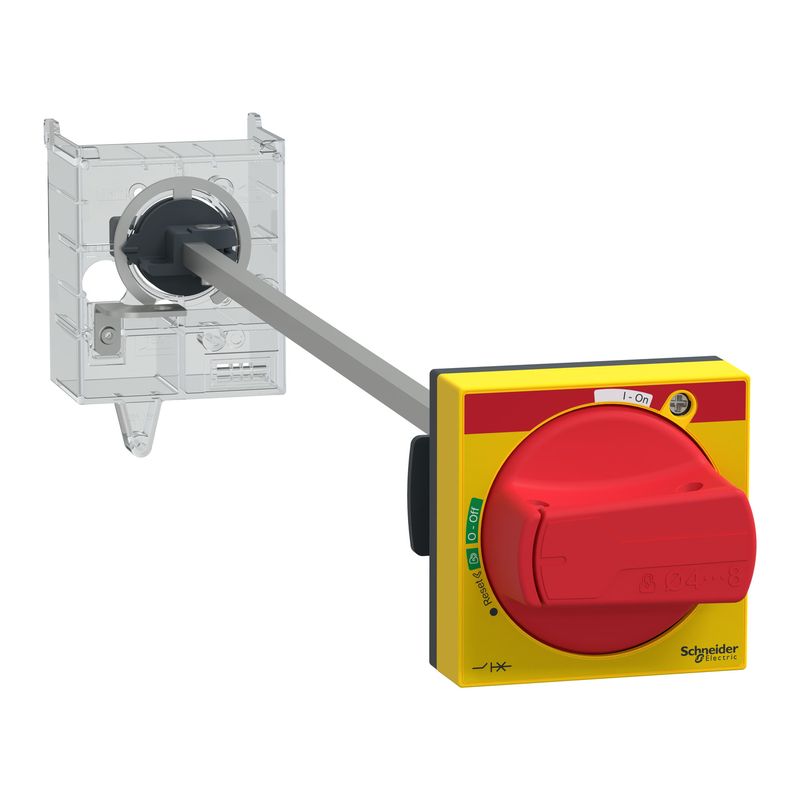

GV3APN04 | TeSys KIT HANDLE RED IP65 W/O TRIP – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: GV3APN04

-55%

GV3APN01 | Extended rotary handle kit,TeSys GV3, IP54, black handle, with trip indication, for GV3L-GV3P – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GV3APN01

-30%

GVAU225 | TeSys GV2 & GV3 – undervoltage trip – 220…240 V AC 50 Hz – Schneider Electric

Auxiliaries and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: GVAU225

The Schneider Electric GV3L326 is an electrical component from the TeSys Deca range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 32 A, 690 V AC 50/60 Hz, 3P. Buy the GV3L326 | GV3L MOTOR CB MAGNETIC 32A LUGS online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	GV3L326
Category	Electrical Component
Main
Range	TeSys Deca
Product name	TeSys GV3
Product or component type	Motor circuit breaker
Device short name	GV3L
Device application	Motor protection
Trip unit technology	Magnetic
Complementary
Poles description	3P
Network type	AC
Utilisation category	Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1
Network frequency	50/60 Hz conforming to IEC 60947-2
Motor power kW	15 kW at 400/415 V AC 50/60 Hz 18.5 kW at 500 V AC 50/60 Hz 22 kW at 690 V AC 50/60 Hz
Breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz 100 kA Icu at 400/415 V AC 50/60 Hz 50 kA Icu at 440 V AC 50/60 Hz 12 kA Icu at 500 V AC 50/60 Hz 6 kA Icu at 690 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz 100 % at 400/415 V AC 50/60 Hz 100 % at 440 V AC 50/60 Hz 50 % at 500 V AC 50/60 Hz 50 % at 690 V AC 50/60 Hz
Control type	Rotary handle
[In] rated current	32 A
Magnetic tripping current	448 A
[Ith] conventional free air thermal current	32 A conforming to IEC 60947-2
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Suitability for isolation	Yes conforming to IEC 60947-1
Power dissipation per pole	8 W
Mechanical durability	50000 cycles
Electrical durability	50000 cycles for AC-3 at 415 V In
Rated duty	Uninterrupted conforming to IEC 60947-4-1
Tightening torque	6 N.m – on lugs-ring terminals
Fixing mode	35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws)
Mounting position	Horizontal Vertical
Width	55 mm
Height	132 mm
Depth	136 mm
Product weight	0.96 kg
Colour	Dark grey
Connection pitch	17.5 mm without spreaders
Environment
Standards	EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
Product certifications	CCC UL CSA EAC LROS (Lloyds register of shipping) BV ABS DNV-GL UKCA
IP degree of protection	IP20 conforming to IEC 60529
Climatic withstand	conforming to IACS E10
Ambient air temperature for storage	-40…80 °C
Fire resistance	960 °C conforming to IEC 60695-2-11
Ambient air temperature for operation	-20…60 °C
Mechanical robustness	Shocks: 15 Gn for 11 ms contactor open Shocks: 30 Gn for 11 ms contactor closed Vibrations: 4 Gn, 5…300 Hz
Operating altitude	3000 m
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	16.5 cm
Package 1 Width	5.5 cm
Package 1 Length	13.6 cm
Package 1 Weight	898 g
Contractual warranty
Warranty (in months)	18

⚡ Key Features

32 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

GV3APN01GV2V03GV3APN04GV3APK01GVAE11GVAN11GVAD1010GVAD1001GVAU385GVAS225GVAU225GVAM11GVAS385GVAS115GVAU115A9MEM1573

❓ Frequently Asked Questions

Q: What is the significance of the 32 A rating on the GV3L326?

A: The 32 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
