SKU:
GV2ME203

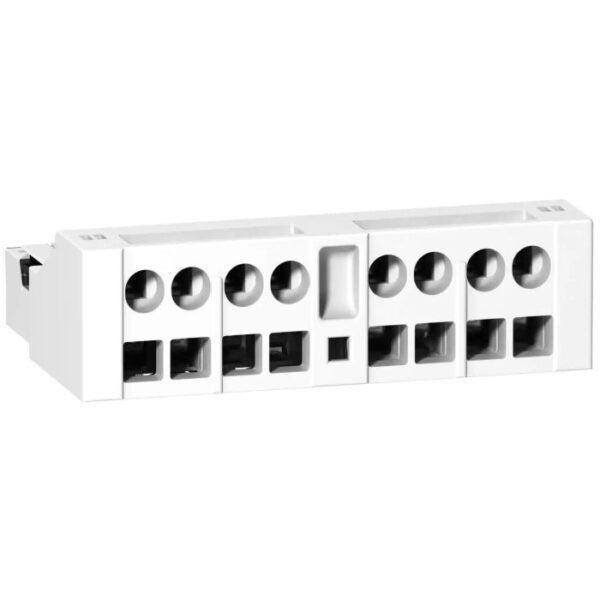

Sourced through authorised channels, the Schneider Electric GVAE113 electrical component from the TeSys range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 24…240 V AC. myelectric.in stocks the GVAE113 | TeSys SPRING THERM PLUG IN AUX for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | GVAE113 |
| Category | Electrical Component |
| Main | |
| Range | TeSys TeSys Deca |
| Device short name | GVAE |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2L GV2ME GV3L GV2RT GV2P GV3P GV2LE LS1D323 |
| Mounting location | Front side |
| Pole contact composition | 1 NO + 1 NC |
| Quantity per set | Set of 10 |
| Complementary | |
| [Ui] rated insulation voltage | 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14 250 V conforming to IEC 60947-1 |
| [Ue] rated operational voltage | 24…240 V AC 24…60 V DC |
| [Ith] conventional free air thermal current | 2.5 A |
| Mechanical durability | 100000 cycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Protection type | GG fuse 10 A GB2CB06 circuit breaker 10 A |
| Rated operational power in VA | 120 VA at 110…120 V AC-15 – electrical durability: 100000 cycles 120 VA at 230…240 V AC-15 – electrical durability: 100000 cycles 48 VA at 24 V AC-15 – electrical durability: 100000 cycles 60 VA at 48 V AC-15 – electrical durability: 100000 cycles |
| Rated operational power in W | 15 W at 48 V DC-13 – electrical durability: 100000 cycles 24 W at 24 V DC-13 – electrical durability: 100000 cycles 9 W at 60 V DC-13 – electrical durability: 100000 cycles |
| Height | 13 mm |
| Width | 44.5 mm |
| Depth | 31.5 mm |
| Product weight | 0.05 kg |
| Colour | Dark grey |
| Environment | |
| Environmental characteristic | Normal environment |
| Product certifications | UKCA |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 1.500 cm |
| Package 1 Width | 8.000 cm |
| Package 1 Length | 8.000 cm |
| Package 1 Weight | 16.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 3.000 cm |
| Package 2 Width | 20.000 cm |
| Package 2 Length | 24.000 cm |
| Package 2 Weight | 174.000 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 260 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 4.938 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
GV2ME103GV2ME063GV2ME083GV2ME143GV2ME073GV2ME053GV2ME163GV2ME203GV2ME043GV2ME033GV2ME223GV2ME023GV2ME213GV2ME013GV2RT163
