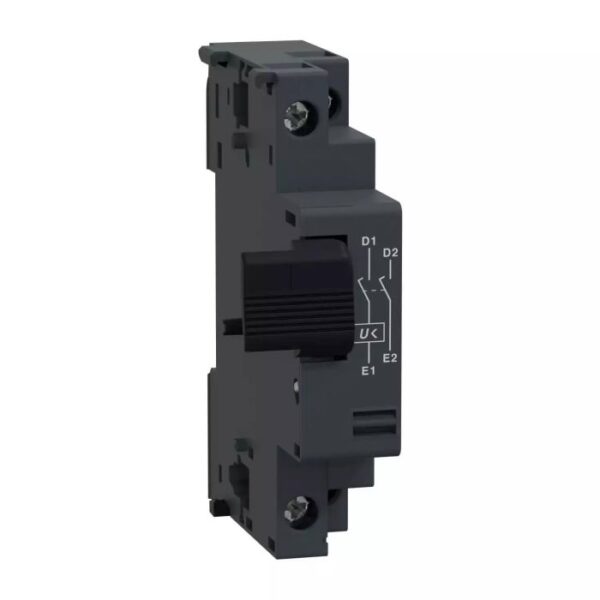

GVAX225 | TeSys SHUNT TRIP INRS 220V-50 – Schneider Electric

Name: GVAX225 | TeSys SHUNT TRIP INRS 220V-50 - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: GVAX225
Price: 4234.50 INR
Availability: BackOrder

SKU: GVAX225

Original price was: ₹9,410.00.Current price is: ₹4,234.50. Excl. GST

Dispatch By : 3 Weeks

19 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-58%

GV2ME20 | Motor circuit breaker, TeSys GV2, 3P, 13-18 A, thermal magnetic, screw clamp terminals – Schneider Electric

MPCB

Schneider Electric

Excl. GST

Add to basket

SKU: GV2ME20

-58%

GV2ME07 | Motor circuit breaker, TeSys GV2, 3P, 1.6-2.5 A, thermal magnetic, screw clamp terminals – Schneider Electric

MPCB

Schneider Electric

Excl. GST

Add to basket

SKU: GV2ME07

-58%

GV2ME10 | Motor circuit breaker, TeSys GV2, 3P, 4-6.3 A, thermal magnetic, screw clamp terminals – Schneider Electric

MPCB

Schneider Electric

Excl. GST

Add to basket

SKU: GV2ME10

-58%

GV2ME08 | Motor circuit breaker, TeSys GV2, 3P, 2.5-4 A, thermal magnetic, screw clamp terminals – Schneider Electric

MPCB

Schneider Electric

Excl. GST

Add to basket

SKU: GV2ME08

The Schneider Electric GVAX225 is a circuit breaker accessory from the TeSys range, engineered for reliable circuit protection and isolation in demanding Indian and international installations. Key ratings include 220V AC. Buy the GVAX225 | TeSys SHUNT TRIP INRS 220V-50 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	GVAX225
Category	Circuit Breaker Accessory
Main
Range	TeSys TeSys Deca
Product or component type	Safety undervoltage trip
Device short name	GVAX
[Uc] control circuit voltage	220…240 V AC 50 Hz
Complementary
Range compatibility	TeSys GV2ME TeSys Deca
Control circuit voltage limits	0.85…1.1 Un
[Ui] rated insulation voltage	690 V AC conforming to IEC 60947-1 600 V AC conforming to UL 60947-4-1 600 V AC conforming to CSA C22.2 No 60947-4-1
Threshold tripping voltage	0.7…0.35 Un
Inrush power in VA	12 VA AC
Inrush power in W	8 W
Hold-in power consumption in VA	3.5 VA AC
Hold-in power consumption in W	1.1 W
Operating time	10…15 ms conforming to IEC 60947-1
On-load factor	100 %
Connections – terminals	Screw clamp terminals 1 cable(s) 1…2.5 mm²solid Screw clamp terminals 2 cable(s) 1…2.5 mm²solid Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
Tightening torque	< 1.4 N.m on screw clamp terminals
Mechanical durability	30000 cycles
Quantity per set	Set of 10
Height	89 mm
Width	18 mm
Depth	66 mm
Product weight	0.105 kg
Colour	Dark grey
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	3.800 cm
Package 1 Width	8.500 cm
Package 1 Length	9.500 cm
Package 1 Weight	121.000 g
Unit Type of Package 2	S01
Number of Units in Package 2	16
Package 2 Height	15.000 cm
Package 2 Width	15.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	2.130 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Shunt trip coil (MX/MXF) — applies control voltage to trip the circuit breaker remotely and instantly; used for emergency stop buttons, fire alarm interlock (electrically held open during alarm), and ATS transfer schemes.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
