HMIDT732 | 15 Touch Smart Display XGA - Schneider Electric
Original price was: $3,710.34.$1,780.96Current price is: $1,780.96. Excl. GST
HMIDT952 | 19W Touch Smart Display FWXGA - Schneider Electric
Original price was: $4,228.70.$2,029.77Current price is: $2,029.77. Excl. GST
-52%

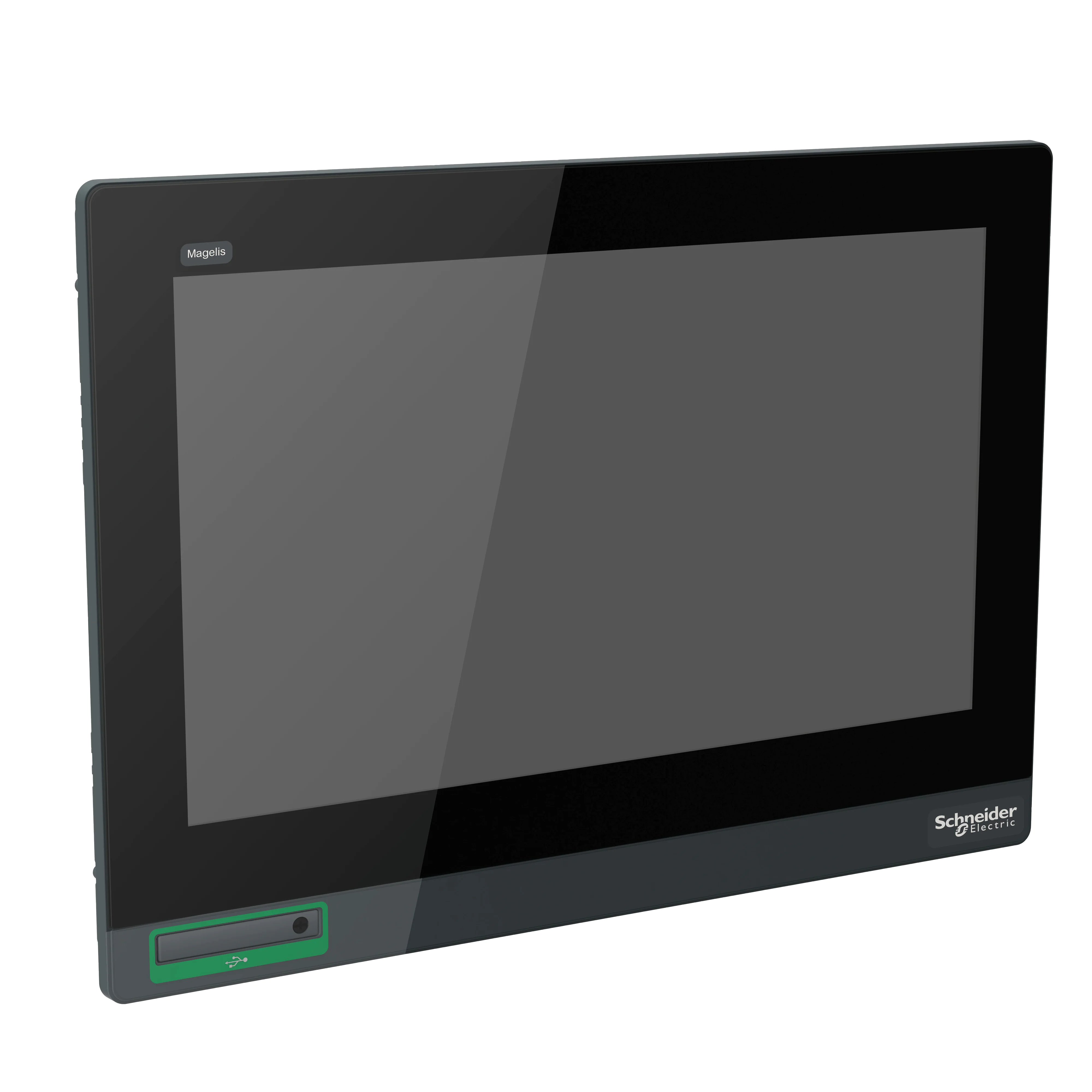

HMIDT752 | 15W Touch Smart Display FWXGA – Schneider Electric
Delivery Lead Time: 2 Months
Original price was: $4,829.09.$2,317.96Current price is: $2,317.96. Excl. GST
Dispatch By : 11 Weeks
Dispatch By : 11 Weeks
18
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Sourced through authorised channels, the Schneider Electric HMIDT752 hmi / touch panel from the Harmony GTU range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include Front panel: IP66. myelectric.in stocks the HMIDT752 | 15W Touch Smart Display FWXGA for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | HMIDT752 |
| Category | HMI / Touch Panel |
| Main | |
| Range of product | Harmony GTU |
| Terminal type | Touchscreen display |
| Product or component type | Flat screen |
| [Us] rated supply voltage | 12…24 V DC power supply |
| Supply voltage limits | 10.8…28.8 V |
| Power consumption in W | 17 W |
| Inrush current | 30 A |
| Complementary | |
| Integrated connection type | USB 2.0 type A USB 2.0 type mini B |
| Touchscreen resolution | 2048 x 2048 |
| Pixel resolution | 1366 x 768 |
| Display size | 15.6 inch |
| Aspect ratio | 4:3 |
| Display type | Colour TFT LCD |
| Display resolution | 1366 x 768 pixels FWXGA |
| Display colour | 16 million colours |
| Backlight lifespan | 50000 hours |
| Touch panel | Multi-touch projected capactive technology (PCT) 50000000 cycles |
| Function available | Brightness sensor |
| Type of cooling | Natural convection |
| Type of installation | Indoor installation |
| Cut-out dimensions | 396 (+ 1/- 0) x 277 (+ 1/- 0) mm |
| Width | 414 mm |
| Height | 295 mm |
| Depth | 69 mm |
| Product weight | 5 kg |
| Environment | |
| IP degree of protection | Front panel: IP66 Front panel: IP67 |
| NEMA degree of protection | NEMA 4X front panel |
| Standards | UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2 |
| Product certifications | KC CE RCM CULus UKCA UKEX |
| Ambient air temperature for operation | 0…55 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage | -20…60 °C |
| Relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| Vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2 |
| Shock resistance | 147 m/s² conforming to IEC 61131-2 |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.000 cm |
| Package 1 Width | 43.000 cm |
| Package 1 Length | 53.000 cm |
| Package 1 Weight | 5.630 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 16 |
| Package 2 Height | 135.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 105.000 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
