HMISCU6A5 | 3.5 SMALL CONTROLLER PANEL FOR MACHINE – Schneider Electric

Name: Schneider Electric HMISCU6A5 3.5" HMI Controller Panel
Brand: Schneider Electric
SKU: HMISCU6A5
Price: 38383.84 INR
Availability: BackOrder

SKU: HMISCU6A5

Delivery Lead Time: 2 Months

Original price was: ₹87,236.00.Current price is: ₹38,383.84. Excl. GST

Dispatch By : 10 Weeks

18 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-60%

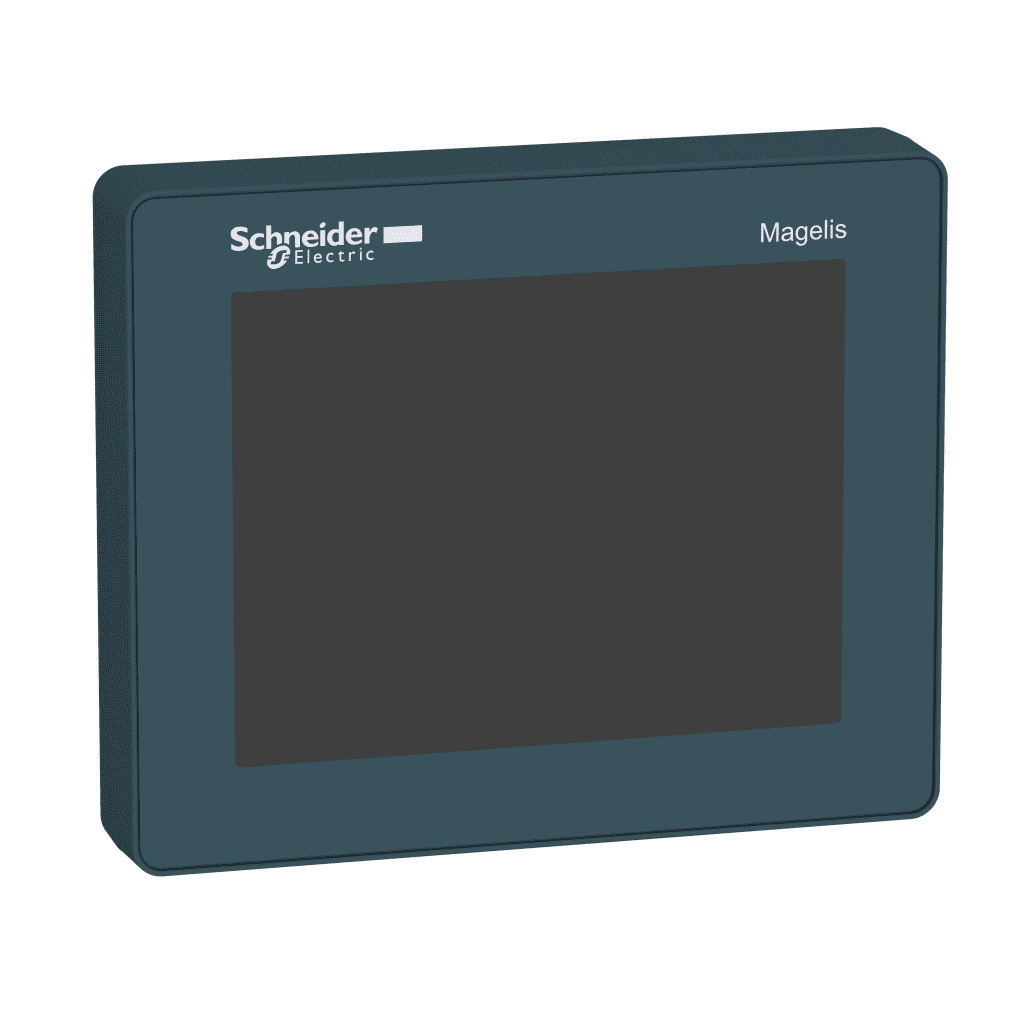

HMIS65 | STU 3in5 front module – Schneider Electric

Human Machine Interface (HMI)

Schneider Electric

Excl. GST

Add to basket

SKU: HMIS65

HMISBC REAR MODULE SMALL CONTROLLER PROCESS Schneider Electric pf

-60%

HMISAC | REAR MODULE SMALL CONTROLLER MACHINE – Schneider Electric

Human Machine Interface (HMI)

Schneider Electric

Excl. GST

Add to basket

SKU: HMISAC

The Schneider Electric HMISCU6A5 is a hmi / touch panel from the Harmony SCU range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include IP20 (rear panel). Buy the HMISCU6A5 | 3.5 SMALL CONTROLLER PANEL FOR MACHINE online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	HMISCU6A5
Category	HMI / Touch Panel
Main
Range of product	Harmony SCU
Product or component type	Small touch HMI controller
Display size	3.5 inch
Display type	with backlit LED colour TFT LCD
Touch panel	Analogue
Software package	SoMachine
Device presentation	Complete product
Complementary
Display resolution	320 x 240 pixels QVGA
Backlight lifespan	50000 hours with 65000 colours
Brightness	16 levels via touch panel
View angle horiz x vert	60° left 60° right 40° top 60° bottom
Character font	Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese) Korean Chinese (simplified Chinese)
Supply	External source
[Us] rated supply voltage	24 V (20.4…28.8 V)DC
Immunity to microbreaks	10 ms
Inrush current	30 A
Power consumption in W	15 W
Local signalling	No indicator
Number of pages	Limited by internal memory capacity
Processor name	ARM926EJ-S
Memory description	Flash NAND, 128 MB Internal data storage FRAM, 128 kB Application run DRAM, 128 MB
Integrated connection type	1 serial link – RJ45 – RS232/RS485 (rate: <= 115.2 kbits/s) 1 Ethernet TCP/IP – RJ45 1 USB 2.0 type mini B 1 USB 2.0 type A CANopen master bus – SUB-D 9
Realtime clock	Built-in
Downloadable protocols	CANopen Modbus TCP/IP Modbus
Fixing mode	By 1 nut – diameter: Ø 22 mm, mounting on: 1…6 mm thick panel
Enclosure material	PC/PBT
Shock resistance	147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27
Vibration resistance	+/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6
Electromagnetic compatibility	Electrostatic discharge immunity test – test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test – test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields – test level: 10 V/m (80 MHz…3 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test – test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 2 kV (relay wires) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (COM line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test – test level: 1 kV (CAN line) conforming to IEC 61000-4-4 Surge immunity test – test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 Surge immunity test – test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 Surge immunity test – test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 Surge immunity test – test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 Conducted RF disturbances – test level: 10 V (0.15…80 MHz) conforming to IEC 61000-4-6 Conducted emission – test level: 150 kHz…30 MHz conforming to EN 55011 Radiated emission – test level: 30 MHz…1 GHz conforming to EN 55011
Discrete input number	2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 14 for digital input conforming to IEC 61131-2 Type 1
Discrete input voltage	24 V DC, discrete input logic: sink or source (positive/negative)
Number of common point	1 for fast input (HSC mode) 2 for digital input
Discrete input current	7.83 mA for fast input 5 mA for digital
Input impedance	2.81 kOhm 4.7 kOhm
Sensor power supply	15…28.8 V DC >= 15 V, current (state 1): >= 5 mA <= 5 V, current (state 0): <= 1.5 mA 15…28.8 V DC >= 15 V, current (state 1): >= 2.5 mA <= 5 V, current (state 0): <= 1 mA
Configurable filtering time	0 ms no filter (none) 0.004…0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) 3…12 ms integrator (none/run/stop)
Maximum input frequency	100 kHz for fast input (encoder mode) – control type A/B 100 kHz for fast input – control type single phase 100 kHz for fast input – control type pulse/direction
Maximum cable distance between devices	Shielded cable: <10 m for fast input Shielded cable: <100 m for digital input Unshielded cable: <50 m for digital input
Connection pitch	3.5 mm
Overvoltage protection	With overvoltage protection
Isolation between channels and internal logic	500 V DC
Isolation between channels	None
Discrete output number	2 fast output (normal mode), output logic: source 8 digital output, output logic: source
Discrete output voltage	24 V DC (voltage limit: 19.2…28.8 V) with transistor discrete output(s) 24 V DC (voltage limit: 5…30 V) with relay discrete output(s) 220 V AC (voltage limit: 100…250 V) with relay discrete output(s)
Input/output number	2 for fast input, terminal(s): FI0…FI1 14 for digital input, terminal(s): DI0…DI13 2 for fast output, terminal(s): FQ0…FQ1 8 for digital output, terminal(s): DQ0…DQ7
Discrete output current	2 A 4 A), response time 5 ms with opening contact for digital output 2 A 4 A), response time 2 ms with closing contact for digital output 300 mA, response time 2 ms for fast output (normal mode) 50 mA, response time 2 ms for fast output (PWM or PTO mode)
Insulation resistance	> 10 MOhm between the I/O and internal logic > 10 MOhm between power supply and earth
Maximum output frequency	100 kHz for fast output (PTO mode) 1 kHz for fast output (PWM mode)
Absolute accuracy error	+/- 0.1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) 1 % of full scale cyclic ratio 1…99% for fast output (PWM or PTO mode) +/- 5 % of full scale cyclic ratio 10…90% for fast output (PWM or PTO mode) +/- 10 % of full scale cyclic ratio 20…80% for fast output (PWM or PTO mode) +/- 15 % of full scale cyclic ratio 30…70% for fast output (PWM or PTO mode)
Height	74.95 mm
Width	128 mm
Depth	102 mm
Product weight	0.512 kg
Environment
Standards	IEC 61000-6-2 FCC Class A UL 508 EN 61131-2 CSA C22.2 No 213 Class I Division 2 ANSI/ISA 12-12-01
Product certifications	cULus 508 cUL 1604 Class 1 Division 2 KCC C-Tick cULus CSA 22-2 No 142 GOST UKCA UKEX
Marking	CE
Ambient air temperature for operation	0…50 °C
Ambient air temperature for storage	-20…60 °C
Relative humidity	5…85 % without condensation
Operating altitude	<= 2000 m
Storage altitude	0…10000 m
Maximum pressure	800…1114 hPa
IP degree of protection	IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529
NEMA degree of protection	NEMA 4X front panel
Pollution degree	2 conforming to IEC 60664
Environmental characteristic	Corrosive gas free
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	11.800 cm
Package 1 Width	19.000 cm
Package 1 Length	27.000 cm
Package 1 Weight	1.217 kg
Unit Type of Package 2	S03
Number of Units in Package 2	4
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	5.595 kg
Contractual warranty
Warranty (in months)	18
