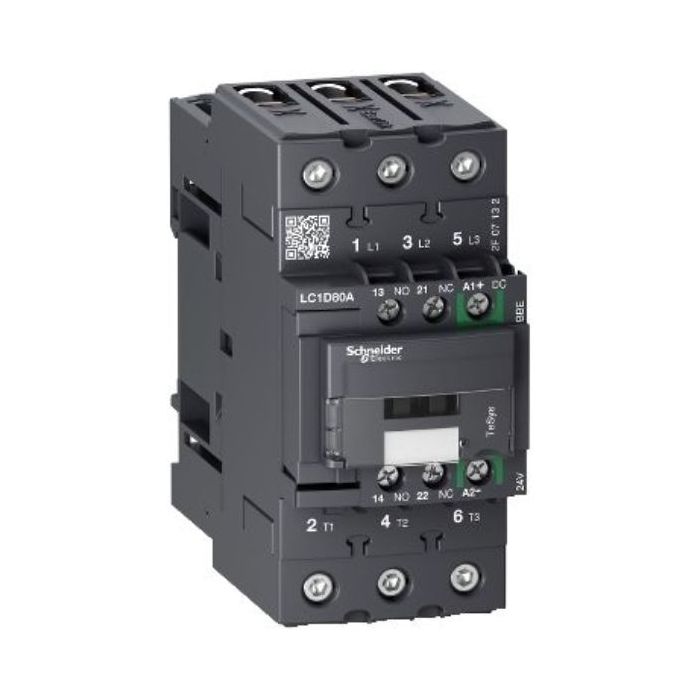

LC1D80ABBE | TeSys 80A 3P contactor with 24V DC control – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D80ABBE

LC1D95BD TeSys D contactor 3P 3 NO AC-3 lc1d95bd image web

-56%

LC1D95BD | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 95 A - 24 V DC standard coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D95BD

-55%

LP1D80004ED | 4P CONTACTOR 125A AC-1 48VDC COIL – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LP1D80004ED

LC1D80BD TeSys D contactor 3P 3 NO AC-3 lc1d80bd image web

-55%

LC1D80BD | TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 80 A - 24 V DC standard coil - Schneider Electric

Power Contactor

Schneider Electric

Excl. GST

Add to basket

SKU: LC1D80BD

Looking for the LA4DE3E | SUPPRESSOR BLOCK? This genuine Schneider Electric contactor accessory from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include IP2X. Order part number LA4DE3E from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LA4DE3E
Category	Contactor Accessory
Main
Range	TeSys
Device short name	LA4D
Product or component type	Suppressor module
Product compatibility	4P LP1D80 3P LC1D80…D95
Complementary
Mounting location	Top
Mounting mode	By screws
Suppressor technology	Varistor (peak limiting)
[Uc] control circuit voltage	24…48 V DC
Maximum peak voltage	2 Uc
Product weight	0.018 kg
Environment
Standards	IEC 60947-5-1 EN 60947-5-1 CSA C22.2 No 60947-5-1 UL 60947-5-1 GB/T 14048.5
Product certifications	UL CSA
IP degree of protection	IP2X conforming to IEC 60529
Ambient air temperature for operation	-25…55 °C
Ambient air temperature for storage	-40…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	5.000 cm
Package 1 Width	4.000 cm
Package 1 Length	2.700 cm
Package 1 Weight	16.000 g
Unit Type of Package 2	S01
Number of Units in Package 2	78
Package 2 Height	15.000 cm
Package 2 Width	15.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	1.455 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Coil surge suppressor module — absorbs the voltage transient generated when the contactor coil de-energises, protecting PLC transistor outputs and nearby electronics from switching spikes.
Clips directly onto the contactor coil terminals (A1/A2) — no panel space, wiring, or separate mounting required.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LC1D80BDLC1D95BDLC1D806BDLP1D80004BDLP1D80008BDLC1D80ABBELC1D80BWLC1D95EDLP1D80004ED

❓ Frequently Asked Questions

Q: Does the LA4DE3E suppressor type affect contactor drop-out time?

A: Yes, slightly. RC suppressors and varistors add minimal delay (a few milliseconds) and are suitable for almost all applications. Diode suppressors (DC coils only) give the slowest drop-out — relevant only in fast-reversing or braking applications where contactor release time matters. For standard motor starting duty, the difference is negligible.

Q: Why fit the LA4DE3E suppressor module on a contactor coil?

A: When a contactor coil de-energises, the collapsing magnetic field generates a high-voltage transient (several hundred volts to kV) that can destroy PLC transistor outputs, weld small relay contacts, and disturb nearby electronics. The LA4DE3E clamps this transient at source. It is strongly recommended whenever a PLC, electronic timer, or sensitive control circuit switches the coil.
