LA9G82 | Push-in terminal adap for overload relay – Schneider Electric

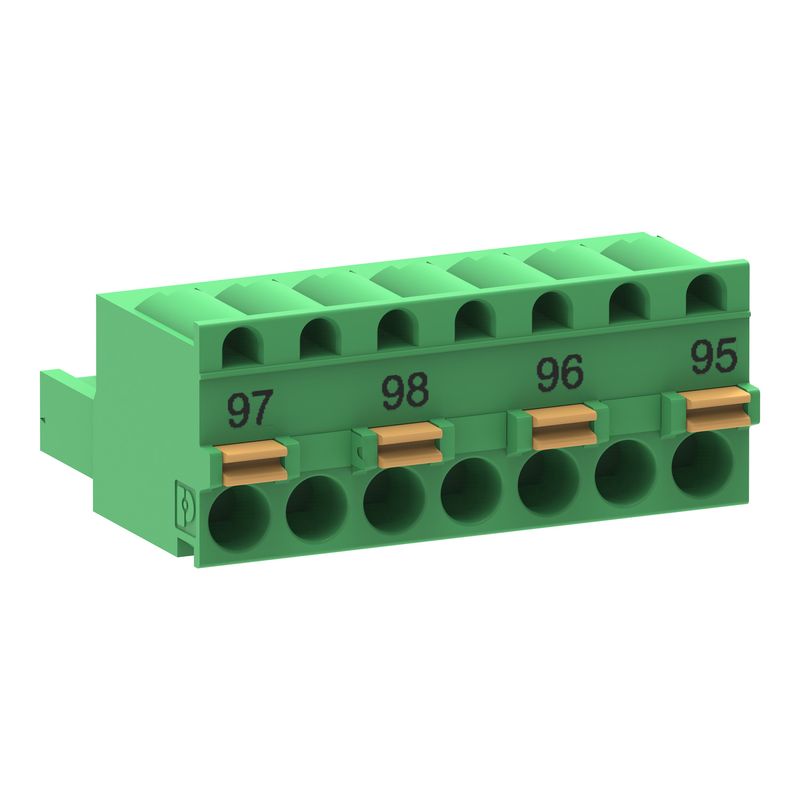

Name: LA9G82 - Terminal block, TeSys Giga electronic overload relay, for LR9G | Schneider Electric
Brand: Schneider Electric
SKU: LA9G82
Price: 765.00 INR
Availability: BackOrder

SKU: LA9G82

Original price was: ₹1,700.00.Current price is: ₹765.00. Excl. GST

Dispatch By : 5 Weeks

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	TeSys
Device short name	LA9G
Product or component type	Connector
Device application	Control circuit
Range compatibility	TeSys G
Quantity per set	Set of 1
Complementary
Rated voltage	600 V AC 50/60 Hz UL 600 V AC 50/60 Hz IEC
[Ie] rated operational current	10 A
Pin number	4
Dielectric test voltage	3000 kV, 1 minute AC
Overvoltage category	III
Connections – terminals	Control circuit: push-in 1 cable(s) 0.2…2.5 mm² solid stranded without cable end Control circuit: push-in 1 cable(s) 0.25…2.5 mm² flexible with cable end Control circuit: push-in 2 cable(s) 0.5…1.0 mm² with cable end
Net weight	0.05 kg
Height	15 mm
Width	26 mm
Depth	36 mm
Environment
IP degree of protection	IP20 conforming to IEC 60529
Pollution degree	3 conforming to IEC 60947-1
Standards	EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-60…80 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	2.0 cm
Package 1 Width	5.5 cm
Package 1 Length	8.0 cm
Package 1 Weight	15.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	10
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	566.0 g
Contractual warranty
Warranty (in months)	18
