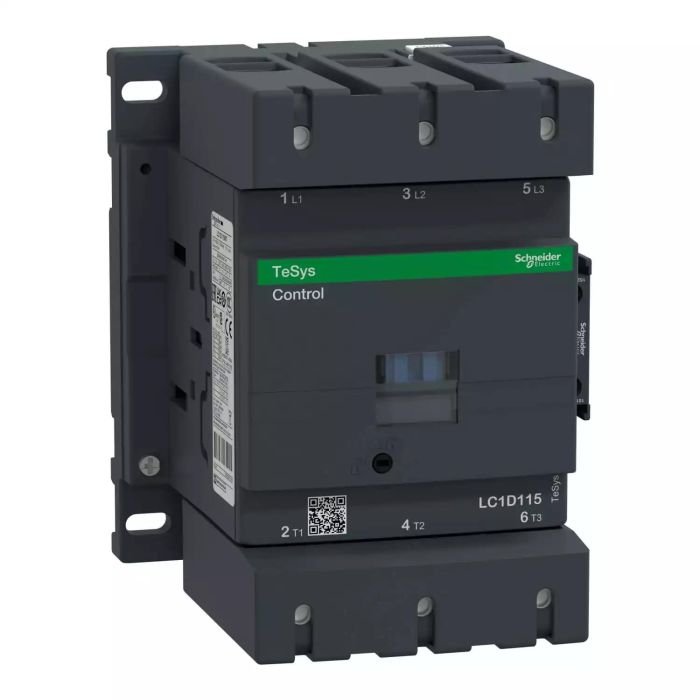

LC1D115FE7 TeSys D Contactor – Schneider Electric

Product Description

The Schneider Electric LC1D115FE7 is a high-performance TeSys D contactor designed for reliable switching of electrical loads in industrial applications. This 3-pole contactor offers exceptional durability and performance for motor control applications.

Key Features:

Current Rating: 115A at AC-3, 415V
Coil Voltage: 230V AC
Poles: 3 (3NO)
Mounting: Screw or snap-on mounting
Mechanical Life: 10 million operations
Electrical Life: 1 million operations at AC-3
Standards: IEC 60947-4-1, UL 60947-4-1
Compact Design: Space-saving for panel optimization

Applications:

Motor control and protection
Industrial automation systems
HVAC equipment
Pump and compressor control
Material handling systems

Technical Specifications:

Parameter	Value
Rated Operational Current (Ie)	115A
Rated Operational Voltage (Ue)	690V AC
Rated Insulation Voltage (Ui)	1000V AC
Power Consumption	18VA
Weight	0.85 kg

Why Choose Schneider Electric Contactors?

Schneider Electric’s TeSys D contactors are known for their reliability, durability, and superior performance in demanding industrial environments. The LC1D115FE7 model offers excellent electrical and mechanical endurance, ensuring long service life with minimal maintenance.

Note: Always consult the product datasheet and follow local electrical codes for proper installation and operation.
