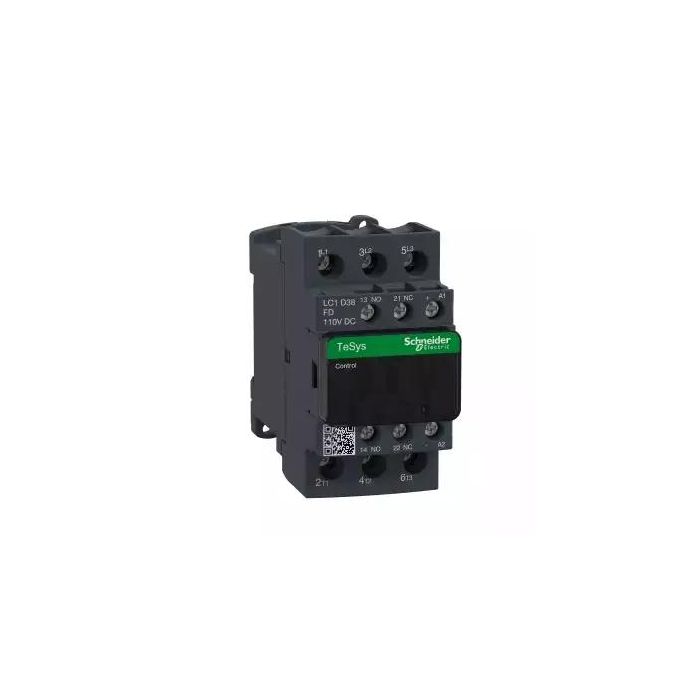

LC1D38FD | TeSys3PCTR38A AC3 18.5KW1NO1NC110VDC COI – Schneider Electric
Original price was: ₹21,845.00.₹9,830.25Current price is: ₹9,830.25. Excl. GST
Dispatch By : 5 Weeks
Dispatch By : 5 Weeks
13
People watching this product now!
Order protection
Buy with complete confidence.
We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included
Dedicated account manager
Technical support
Bulk & business pricing
3-day replacement
Additional Addons/Accessories
-55%
LADN11 | Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹955.00.₹429.75Current price is: ₹429.75. Excl. GST
SKU:
LADN11
-56%
GV2G245 | 2 TAP OFFS BUSBAR GV2 63A 45MM PITCH – Schneider Electric
Original price was: ₹4,000.00.₹1,760.00Current price is: ₹1,760.00. Excl. GST
SKU:
GV2G245
-55%
LADT2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹6,895.00.₹3,102.75Current price is: ₹3,102.75. Excl. GST
SKU:
LADT2
-55%
LADN20 | Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹1,045.00.₹470.25Current price is: ₹470.25. Excl. GST
SKU:
LADN20
-55%
LAD9V5 | UPSTREAM BUS BAR SCREW – Schneider Electric
Original price was: ₹1,185.00.₹533.25Current price is: ₹533.25. Excl. GST
SKU:
LAD9V5
-15%
LAD9R1V | Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, with electrical interlock – Schneider Electric
Original price was: ₹2,970.00.₹2,524.50Current price is: ₹2,524.50. Excl. GST
SKU:
LAD9R1V
-15%
LAD9V2 | Mechanical interlock, TeSys D contactors LC1D09-D38 LC1DT20-DT40 – Schneider Electric
Original price was: ₹1,430.00.₹1,215.50Current price is: ₹1,215.50. Excl. GST
SKU:
LAD9V2
-55%
LADR0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹6,895.00.₹3,102.75Current price is: ₹3,102.75. Excl. GST
SKU:
LADR0
-55%
LADN02 | Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹1,065.00.₹479.25Current price is: ₹479.25. Excl. GST
SKU:
LADN02
-55%
LAD4DDL | FREE WHEELING DIODE 24-250VAC D09-D38 – Schneider Electric
Original price was: ₹4,860.00.₹2,187.00Current price is: ₹2,187.00. Excl. GST
SKU:
LAD4DDL
-55%
LADN40 | Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹1,740.00.₹783.00Current price is: ₹783.00. Excl. GST
SKU:
LADN40
-15%
LAD9R1 | Kit for assembling 3P reversing contactors, LC1D09-D38 with screw clamp terminals, without electrical interlock – Schneider Electric
Original price was: ₹2,995.00.₹2,545.75Current price is: ₹2,545.75. Excl. GST
SKU:
LAD9R1
-55%
LADT4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹6,895.00.₹3,102.75Current price is: ₹3,102.75. Excl. GST
SKU:
LADT4
-55%
LADR2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹6,895.00.₹3,102.75Current price is: ₹3,102.75. Excl. GST
SKU:
LADR2
-52%
GV2G445 | Linergy FT – Comb busbar – 63 A – 4 tap-offs – 45 mm pitch – Schneider Electric
Original price was: ₹6,290.00.₹3,019.20Current price is: ₹3,019.20. Excl. GST
SKU:
GV2G445
-55%
LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric
Original price was: ₹1,370.00.₹616.50Current price is: ₹616.50. Excl. GST
SKU:
LAD9ET1S
-55%
LADN13 | Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹1,740.00.₹783.00Current price is: ₹783.00. Excl. GST
SKU:
LADN13
-55%
LADN22 | Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹1,740.00.₹783.00Current price is: ₹783.00. Excl. GST
SKU:
LADN22
-55%
LADT0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹6,895.00.₹3,102.75Current price is: ₹3,102.75. Excl. GST
SKU:
LADT0
-55%
LADR4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹6,895.00.₹3,102.75Current price is: ₹3,102.75. Excl. GST
SKU:
LADR4
-55%
LADS2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric
Original price was: ₹7,350.00.₹3,307.50Current price is: ₹3,307.50. Excl. GST
SKU:
LADS2
-55%
LAD6K10F | LATCH BLK LC1 D09-D65A 110V – Schneider Electric
Original price was: ₹13,065.00.₹5,879.25Current price is: ₹5,879.25. Excl. GST
SKU:
LAD6K10F
-55%
LADN04 | Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹2,555.00.₹1,149.75Current price is: ₹1,149.75. Excl. GST
SKU:
LADN04
-55%
LADN31 | Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, screw clamp terminals – Schneider Electric
Original price was: ₹1,740.00.₹783.00Current price is: ₹783.00. Excl. GST
SKU:
LADN31
-55%
LAD9V6 | DOWNSTREAM BUS BAR SCREW – Schneider Electric
Original price was: ₹1,485.00.₹668.25Current price is: ₹668.25. Excl. GST
SKU:
LAD9V6
Looking for the LC1D38FD | TeSys3PCTR38A AC3 18.5KW1NO1NC110VDC COI? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 50 A, Power circuit: <= 690 V AC 25...400 Hz, 3P. Order part number LC1D38FD from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.
📋 Technical Specifications
| Product | |
| Brand | Schneider Electric |
| Part Number / SKU | LC1D38FD |
| Category | Electrical Component |
| Main | |
| Range | TeSys TeSys Deca |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load Motor control |
| Utilisation category | AC-4 AC-1 AC-3 AC-3e |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25…400 Hz Power circuit: <= 300 V DC |
| [Ie] rated operational current | 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage | 110 V DC |
| Complementary | |
| Motor power kW | 18.5 kW at 500 V AC 50/60 Hz (AC-3) 18.5 kW at 660…690 V AC 50/60 Hz (AC-3) 7.5 kW at 400 V AC 50/60 Hz (AC-4) 18.5 kW at 380…400 V AC 50/60 Hz (AC-3) 9 kW at 220…230 V AC 50/60 Hz (AC-3) 18.5 kW at 415…440 V AC 50/60 Hz (AC-3) 18.5 kW at 500 V AC 50/60 Hz (AC-3e) 18.5 kW at 660…690 V AC 50/60 Hz (AC-3e) 18.5 kW at 380…400 V AC 50/60 Hz (AC-3e) 9 kW at 220…230 V AC 50/60 Hz (AC-3e) 18.5 kW at 415…440 V AC 50/60 Hz (AC-3e) |
| Motor power hp | 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors 5 hp at 240 V AC 50/60 Hz for 1 phase motors 20 hp at 480 V AC 50/60 Hz for 3 phases motors 25 hp at 600 V AC 50/60 Hz for 3 phases motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 10 A (at 60 °C) for signalling circuit 50 A (at 60 °C) for power circuit |
| Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 550 A at 440 V for power circuit conforming to IEC 60947 |
| Rated breaking capacity | 550 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 60 A 40 °C – 10 min for power circuit 430 A 40 °C – 1 s for power circuit 150 A 40 °C – 1 min for power circuit 310 A 40 °C – 10 s for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit |
| Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 63 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 2 mOhm – Ith 50 A 50 Hz for power circuit |
| Power dissipation per pole | 5 W AC-1 3 W AC-3 3 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified Power circuit: 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 30 Mcycles |
| Electrical durability | 1.4 Mcycles 50 A AC-1 at Ue <= 440 V 1.4 Mcycles 38 A AC-3 at Ue <= 440 V 1.4 Mcycles 38 A AC-3e at Ue <= 440 V |
| Control circuit type | DC standard |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits | 0.1…0.25 Uc (-40…70 °C):drop-out DC 0.7…1.25 Uc (-40…60 °C):operational DC 1…1.25 Uc (60…70 °C):operational DC |
| Inrush power in W | 5.4 W (at 20 °C) |
| Hold-in power consumption in W | 5.4 W at 20 °C |
| Operating time | 20 ±20 % ms opening 63 ±15 % ms closing |
| Time constant | 28 ms |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections – terminals | Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 2.5…10 mm² – cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…10 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1.5…6 mm² – cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…10 mm² – cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5…10 mm² – cable stiffness: solid without cable end |
| Tightening torque | Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2 Power circuit: 2.5 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm Power circuit: 2.5 N.m – on screw clamp terminals – with screwdriver Philips No 2 Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver pozidriv No 2 Power circuit: 2.5 N.m – on screw clamp terminals – with screwdriver pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency | 25…400 Hz |
| Minimum switching voltage | 17 V for signalling circuit |
| Minimum switching current | 5 mA for signalling circuit |
| Insulation resistance | > 10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |
| Mounting support | Rail Plate |
| Environment | |
| Standards | CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1 |
| Product certifications | UL CCC CSA Marine UKCA EAC CB Scheme |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Protective treatment | TH conforming to IEC 60068-2-30 |
| Climatic withstand | conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat |
| Permissible ambient air temperature around the device | -40…60 °C 60…70 °C with derating |
| Operating altitude | 0…3000 m |
| Fire resistance | 850 °C conforming to IEC 60695-2-1 |
| Flame retardance | V1 conforming to UL 94 |
| Mechanical robustness | Vibrations contactor open (2 Gn, 5…300 Hz) Vibrations contactor closed (4 Gn, 5…300 Hz) Shocks contactor closed (15 Gn for 11 ms) Shocks contactor open (8 Gn for 11 ms) |
| Height | 85 mm |
| Width | 45 mm |
| Depth | 101 mm |
| Product weight | 0.54 kg |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.700 cm |
| Package 1 Width | 9.700 cm |
| Package 1 Length | 11.900 cm |
| Package 1 Weight | 578.000 g |
| Contractual warranty | |
| Warranty (in months) | 18 |
⚡ Key Features
- Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
- BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
- Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
- GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
- Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
🔗 Compatible Products & Accessories
The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:
LAD9V2LAD9R1VLAD9R1LAD9V6LAD9V5LAD9ET1SGV2G445GV2G245LAD4DDLLADN22LADN11LADN20LADT2LADN40LAD6K10FLADN31LADN02LADT0LADS2LADR2LADR0LADN04LADN13LADR4LADT4
