LC1D40008E7 | 4P CONT 60A AC-1 2NO 2NC 48VAC COIL - Schneider Electric - Image 1
Click to enlarge

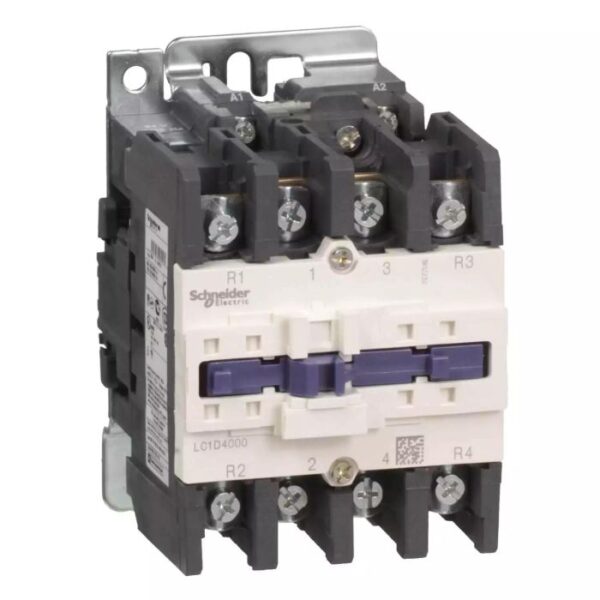

    LC1D40008E7 | 4P CONT 60A AC-1 2NO 2NC 48VAC COIL – Schneider Electric

    SKU: LC1D40008E7

    Original price was: ₹42,920.00.Current price is: ₹19,314.00. Excl. GST

    Dispatch By : 3 Weeks

    Dispatch By : 3 Weeks

    17 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    LADR4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr4 image 1500x1500
    -55%

    LADR4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADR4
    LADN02 Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals Schneider Electric ladn02 image 1500x1500
    -55%

    LADN02 | Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,065.00.Current price is: ₹479.25. Excl. GST
    Add to basket
    SKU: LADN02
    LADN13 Auxiliary contact block, TeSys D, 1NO 3NC, front mounting, screw clamp terminals Schneider Electric ladn13 image 1500x
    -55%

    LADN13 | Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN13
    LADN20 Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider Electric ladn20 image 1500x1500
    -55%

    LADN20 | Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,045.00.Current price is: ₹470.25. Excl. GST
    Add to basket
    SKU: LADN20
    LADN40 Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals Schneider Electric ladn40 image 1500x1500
    -55%

    LADN40 | Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN40
    LADN11 Auxiliary contact block, TeSys D, 1NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn11 image 1500x
    -55%

    LADN11 | Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹955.00.Current price is: ₹429.75. Excl. GST
    Add to basket
    SKU: LADN11
    LADN31 Auxiliary contact block, TeSys D, 3NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn31 image 1500x
    -55%

    LADN31 | Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN31
    LAD8N11 Auxiliary contact block, TeSys D, 1NO 1NC, side mounting, screw clamp terminals Schneider Electric lad8n11 image 1500
    -55%

    LAD8N11 | Auxiliary contact block, TeSys D, 1NO + 1NC, side mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹3,675.00.Current price is: ₹1,653.75. Excl. GST
    Add to basket
    SKU: LAD8N11
    LADR0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr0 image 1500x1500
    -55%

    LADR0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADR0
    LADN04 Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider Electric ladn04 image 1500x1500
    -55%

    LADN04 | Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹2,555.00.Current price is: ₹1,149.75. Excl. GST
    Add to basket
    SKU: LADN04
    LADN22 Auxiliary contact block, TeSys D, 2NO 2NC, front mounting, screw clamp terminals Schneider Electric ladn22 image 1500x
    -55%

    LADN22 | Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN22
    LADT2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt2 image 1500x1500
    -55%

    LADT2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADT2
    LAD8N02 Auxiliary contact block, TeSys D, 2NC, side mounting, screw clamp terminals Schneider Electric lad8n02 image 01 1500x
    -56%

    LAD8N02 | Auxiliary contact block, TeSys D, 2NC, side mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹3,870.00.Current price is: ₹1,702.80. Excl. GST
    Add to basket
    SKU: LAD8N02
    -55%

    LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

    Schneider Electric
    Original price was: ₹1,370.00.Current price is: ₹616.50. Excl. GST
    Add to basket
    SKU: LAD9ET1S
    LX1D6E7 TeSys D contactor coil LX1D6 48 V AC 50 60 Hz for 80 95 A contactor Schneider Electric odadf100001 ter 1500x1500
    -45%

    LX1D6E7 | TeSys D – contactor coil – LX1D6 – 48 V AC 50/60 Hz for 80 & 95 A contactor – Schneider Electric

    Schneider Electric
    Original price was: ₹9,805.00.Current price is: ₹5,392.75. Excl. GST
    Add to basket
    SKU: LX1D6E7
    -55%

    LA4DA2E | RC SUPPRESSOR 24-48VAC FOR D80…D150 – Schneider Electric

    Schneider Electric
    Original price was: ₹3,205.00.Current price is: ₹1,442.25. Excl. GST
    Add to basket
    SKU: LA4DA2E
    LADR2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr2 image 1500x1500
    -55%

    LADR2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADR2
    LAD8N20 Auxiliary contact block, TeSys D, 2NO, side mounting, screw clamp terminals Schneider Electric lad8n20 image 1500x150
    -55%

    LAD8N20 | Auxiliary contact block, TeSys D, 2NO, side mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹3,675.00.Current price is: ₹1,653.75. Excl. GST
    Add to basket
    SKU: LAD8N20
    LADS2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric lads2 image 1500x1500
    -55%

    LADS2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹7,350.00.Current price is: ₹3,307.50. Excl. GST
    Add to basket
    SKU: LADS2
    LADT0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt0 image 1500x1500
    -55%

    LADT0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADT0
    LADT4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt4 image 1500x1500
    -55%

    LADT4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADT4

      Looking for the LC1D40008E7 | 4P CONT 60A AC-1 2NO 2NC 48VAC COIL? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 60 A, Power circuit: <= 690 V AC 25...400 Hz, 4P. Order part number LC1D40008E7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULC1D40008E7
      CategoryElectrical Component
      Main
      RangeTeSys
      Range of productTeSys Deca
      Product or component typeContactor
      Device short nameLC1D
      Contactor applicationResistive load
      Utilisation categoryAC-1
      Poles description4P
      [Ue] rated operational voltagePower circuit: <= 690 V AC 25…400 Hz
      Power circuit: <= 300 V DC
      [Ie] rated operational current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
      [Uc] control circuit voltage48 V AC 50/60 Hz
      Complementary
      Compatibility codeLC1D
      Pole contact composition2 NO + 2 NC
      Protective coverWith
      [Ith] conventional free air thermal current60 A (at 60 °C) for power circuit
      Irms rated making capacity800 A at 440 V for power circuit conforming to IEC 60947
      Rated breaking capacity800 A at 440 V for power circuit conforming to IEC 60947
      [Icw] rated short-time withstand current320 A 40 °C – 10 s for power circuit
      720 A 40 °C – 1 s for power circuit
      72 A 40 °C – 10 min for power circuit
      165 A 40 °C – 1 min for power circuit
      Associated fuse rating80 A gG at <= 690 V coordination type 1 for power circuit
      80 A gG at <= 690 V coordination type 2 for power circuit
      Average impedance1.5 mOhm – Ith 60 A 50 Hz for power circuit
      Power dissipation per pole5.4 W AC-1
      [Ui] rated insulation voltagePower circuit: 600 V CSA certified
      Power circuit: 600 V UL certified
      Power circuit: 690 V conforming to IEC 60947-4-1
      Overvoltage categoryIII
      Pollution degree3
      [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
      Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
      B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
      Mechanical durability6 Mcycles
      Electrical durability1.4 Mcycles 60 A AC-1 at Ue <= 440 V
      Control circuit typeAC at 50/60 Hz
      Coil technologyWithout built-in suppressor module
      Control circuit voltage limits0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
      0.8…1.1 Uc (-40…60 °C):operational AC 50 Hz
      0.85…1.1 Uc (-40…60 °C):operational AC 60 Hz
      1…1.1 Uc (60…70 °C):operational AC 50/60 Hz
      Inrush power in VA140 VA 60 Hz cos phi 0.75 (at 20 °C)
      160 VA 50 Hz cos phi 0.75 (at 20 °C)
      Hold-in power consumption in VA13 VA 60 Hz cos phi 0.3 (at 20 °C)
      15 VA 50 Hz cos phi 0.3 (at 20 °C)
      Heat dissipation4…5 W at 50/60 Hz
      Operating time4…19 ms opening
      12…26 ms closing
      Maximum operating rate3600 cyc/h at 60 °C
      Connections – terminalsControl circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end
      Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end
      Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end
      Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end
      Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end
      Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end
      Power circuit: screw clamp terminals 1 1…35 mm² – cable stiffness: flexible without cable end
      Power circuit: screw clamp terminals 2 1…25 mm² – cable stiffness: flexible without cable end
      Power circuit: screw clamp terminals 1 1…35 mm² – cable stiffness: flexible with cable end
      Power circuit: screw clamp terminals 2 1…25 mm² – cable stiffness: flexible with cable end
      Power circuit: screw clamp terminals 1 1…35 mm² – cable stiffness: solid without cable end
      Power circuit: screw clamp terminals 2 1…25 mm² – cable stiffness: solid without cable end
      Tightening torqueControl circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
      Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2
      Power circuit: 8 N.m – on screw clamp terminals – cable 25…35 mm² hexagonal screw head 4 mm
      Power circuit: 5 N.m – on screw clamp terminals – cable 1…25 mm² hexagonal screw head 4 mm
      Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
      Mounting supportRail
      Plate
      Environment
      StandardsCSA C22.2 No 14
      EN 60947-4-1
      EN 60947-5-1
      IEC 60947-4-1
      IEC 60947-5-1
      UL 60947-4-1
      Product certificationsCCC
      CSA
      BV
      UL
      DNV
      RINA
      LROS (Lloyds register of shipping)
      GOST
      GL
      IP degree of protectionIP20 front face conforming to IEC 60529
      Protective treatmentTH conforming to IEC 60068-2-30
      Climatic withstandconforming to IACS E10 exposure to damp heat
      Permissible ambient air temperature around the device-40…60 °C
      60…70 °C with derating
      Operating altitude0…3000 m
      Fire resistance850 °C conforming to IEC 60695-2-1
      Flame retardanceV1 conforming to UL 94
      Mechanical robustnessShocks contactor open (8 Gn for 11 ms)
      Shocks contactor closed (10 Gn for 11 ms)
      Vibrations contactor opened (2 Gn, 5…300 Hz)
      Vibrations contactor closed (4 Gn, 5…300 Hz)
      Height127 mm
      Width85 mm
      Depth125 mm
      Product weight1.44 kg
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height15.500 cm
      Package 1 Width11.000 cm
      Package 1 Length13.800 cm
      Package 1 Weight1.474 kg
      Unit Type of Package 2S02
      Number of Units in Package 25
      Package 2 Height15.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight7.639 kg
      Unit Type of Package 3P06
      Number of Units in Package 380
      Package 3 Height75.000 cm
      Package 3 Width60.000 cm
      Package 3 Length80.000 cm
      Package 3 Weight133.060 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 60 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
      • 48V AC coil or control supply voltage — directly compatible with standard panel control circuits.
      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      LAD9ET1SLA4DA2ELA4DE1ELADN22LADN11LADN20LAD8N11LADT2LADN40LADN31LADN02LADT0LAD8N20LADS2LADR2LADR0LADN04LADN13LADR4LADT4LAD8N02LX1D6E7

      ❓ Frequently Asked Questions

      Q: What is the significance of the 60 A rating on the LC1D40008E7?

      A: The 60 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

      Q: The LC1D40008E7 has a coil voltage of 48V AC — what control supply is needed?

      A: This Schneider Electric device requires a 48V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

      Customer Reviews

      Related Products

      Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

      Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

      Lauritz Knudsen (L&T)
      Read more
      SKU: CS91463PO1O
      MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

      MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

      Lauritz Knudsen (L&T)
      ₹12,550.00 Excl. GST
      Add to basket
      SKU: CS92103SODO
      XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
      -46%

      XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

      Schneider Electric
      Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
      Add to basket
      SKU: XB5AR31N
      ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
      -35%

      ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

      Schneider Electric
      Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
      Add to basket
      SKU: ZB2BW36C
      Placeholder
      -20%

      MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

      Schneider Electric
      Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
      Add to basket
      SKU: MS13MD09
      Placeholder
      -50%

      30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

      Schneider Electric
      Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
      Add to basket
      SKU: 30002572
