LC1D50AFD | TeSys 3P EVLK CTR 50A 22KW AC3 110VDC - Schneider Electric - Image 1
Click to enlarge

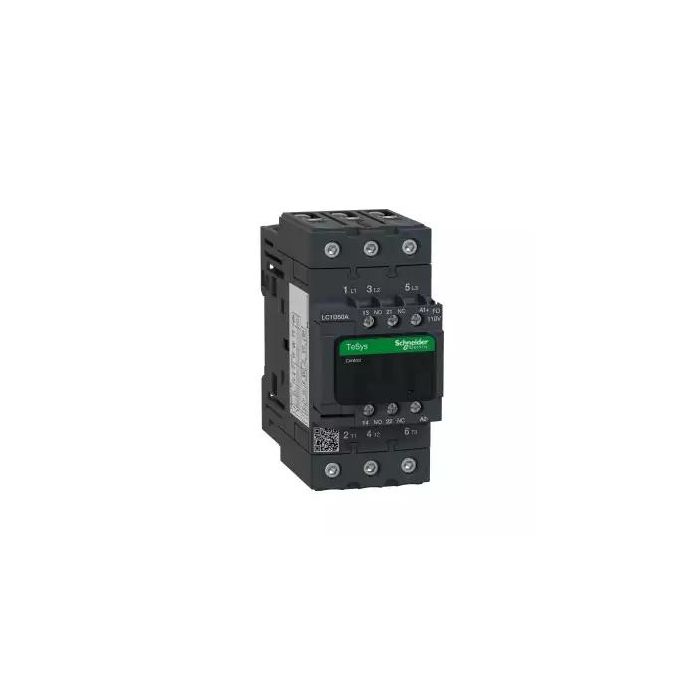

    LC1D50AFD | TeSys 3P EVLK CTR 50A 22KW AC3 110VDC – Schneider Electric

    SKU: LC1D50AFD

    Original price was: ₹34,555.00.Current price is: ₹15,549.75. Excl. GST

    Dispatch By : 3 Weeks

    Dispatch By : 3 Weeks

    14 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    LADR0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr0 image 1500x1500
    -55%

    LADR0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADR0
    LADT4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt4 image 1500x1500
    -55%

    LADT4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADT4
    LADN22 Auxiliary contact block, TeSys D, 2NO 2NC, front mounting, screw clamp terminals Schneider Electric ladn22 image 1500x
    -55%

    LADN22 | Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN22
    LAD4CM Mechanical interlock, TeSys D contactors LC1D40A-D80A LC1DT60A-DT80A Schneider Electric pf106908 1500x1500
    -55%

    LAD4CM | Mechanical interlock, TeSys D contactors LC1D40A-D80A LC1DT60A-DT80A – Schneider Electric

    Schneider Electric
    Original price was: ₹2,905.00.Current price is: ₹1,307.25. Excl. GST
    Add to basket
    SKU: LAD4CM
    LADN20 Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider Electric ladn20 image 1500x1500
    -55%

    LADN20 | Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,045.00.Current price is: ₹470.25. Excl. GST
    Add to basket
    SKU: LADN20
    LADN11 Auxiliary contact block, TeSys D, 1NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn11 image 1500x
    -55%

    LADN11 | Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹955.00.Current price is: ₹429.75. Excl. GST
    Add to basket
    SKU: LADN11
    LADT2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt2 image 1500x1500
    -55%

    LADT2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADT2
    -55%

    LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

    Schneider Electric
    Original price was: ₹1,370.00.Current price is: ₹616.50. Excl. GST
    Add to basket
    SKU: LAD9ET1S
    LADR2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr2 image 1500x1500
    -55%

    LADR2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADR2
    LADN02 Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals Schneider Electric ladn02 image 1500x1500
    -55%

    LADN02 | Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,065.00.Current price is: ₹479.25. Excl. GST
    Add to basket
    SKU: LADN02
    -55%

    GV3G264 | 2 GV3 BREAKERS POWER BUSBAR – Schneider Electric

    Schneider Electric
    Original price was: ₹7,180.00.Current price is: ₹3,231.00. Excl. GST
    Add to basket
    SKU: GV3G264
    LADN04 Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider Electric ladn04 image 1500x1500
    -55%

    LADN04 | Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹2,555.00.Current price is: ₹1,149.75. Excl. GST
    Add to basket
    SKU: LADN04
    Placeholder
    -55%

    LAD4D3U | TeSys Deca Diode 24-250VDC Suppressor – Schneider Electric

    Original price was: ₹2,525.00.Current price is: ₹1,136.25. Excl. GST
    Add to basket
    SKU: LAD4D3U
    -14%

    LAD9R3 | LC1D40A-D65A REVERSOR KIT – Schneider Electric

    Schneider Electric
    Original price was: ₹7,050.00.Current price is: ₹6,063.00. Excl. GST
    Add to basket
    SKU: LAD9R3
    LADR4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr4 image 1500x1500
    -55%

    LADR4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADR4
    -55%

    LAD6K10F | LATCH BLK LC1 D09-D65A 110V – Schneider Electric

    Schneider Electric
    Original price was: ₹13,065.00.Current price is: ₹5,879.25. Excl. GST
    Add to basket
    SKU: LAD6K10F
    LADN31 Auxiliary contact block, TeSys D, 3NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn31 image 1500x
    -55%

    LADN31 | Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN31
    LADS2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric lads2 image 1500x1500
    -55%

    LADS2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹7,350.00.Current price is: ₹3,307.50. Excl. GST
    Add to basket
    SKU: LADS2
    LADN40 Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals Schneider Electric ladn40 image 1500x1500
    -55%

    LADN40 | Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN40
    LADN13 Auxiliary contact block, TeSys D, 1NO 3NC, front mounting, screw clamp terminals Schneider Electric ladn13 image 1500x
    -55%

    LADN13 | Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
    Add to basket
    SKU: LADN13
    LADT0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt0 image 1500x1500
    -55%

    LADT0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

    Schneider Electric
    Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
    Add to basket
    SKU: LADT0

      Looking for the LC1D50AFD | TeSys 3P EVLK CTR 50A 22KW AC3 110VDC? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 50 A, Power circuit: <= 690 V AC 25...400 Hz, 3P. Order part number LC1D50AFD from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULC1D50AFD
      CategoryElectrical Component
      Main
      RangeTeSys
      TeSys Deca
      Range of productTeSys Deca
      Product or component typeContactor
      Device short nameLC1D
      Contactor applicationResistive load
      Motor control
      Utilisation categoryAC-3
      AC-3e
      AC-1
      AC-4
      Poles description3P
      [Ue] rated operational voltagePower circuit: <= 690 V AC 25…400 Hz
      Power circuit: <= 300 V DC
      [Ie] rated operational current50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
      80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
      50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
      [Uc] control circuit voltage110 V DC
      Complementary
      Motor power kW15 kW at 220/230 V AC 50/60 Hz (AC-3)
      22 kW at 380/400 V AC 50/60 Hz (AC-3)
      25 kW at 415 V AC 50/60 Hz (AC-3)
      30 kW at 440 V AC 50/60 Hz (AC-3)
      30 kW at 500 V AC 50/60 Hz (AC-3)
      33 kW at 660/690 V AC 50/60 Hz (AC-3)
      15 kW at 220/230 V AC 50/60 Hz (AC-3e)
      22 kW at 380/400 V AC 50/60 Hz (AC-3e)
      25 kW at 415 V AC 50/60 Hz (AC-3e)
      30 kW at 440 V AC 50/60 Hz (AC-3e)
      30 kW at 500 V AC 50/60 Hz (AC-3e)
      33 kW at 660/690 V AC 50/60 Hz (AC-3e)
      11 kW at 400 V AC 50/60 Hz (AC-4)
      Motor power hp3 hp at 115 V AC 50/60 Hz for 1 phase motors
      7.5 hp at 230/240 V AC 50/60 Hz for 1 phase motors
      15 hp at 200/208 V AC 50/60 Hz for 3 phases motors
      15 hp at 230/240 V AC 50/60 Hz for 3 phases motors
      40 hp at 460/480 V AC 50/60 Hz for 3 phases motors
      40 hp at 575/600 V AC 50/60 Hz for 3 phases motors
      Compatibility codeLC1D
      Pole contact composition3 NO
      Protective coverWith
      [Ith] conventional free air thermal current10 A (at 60 °C) for signalling circuit
      80 A (at 60 °C) for power circuit
      Irms rated making capacity140 A AC for signalling circuit conforming to IEC 60947-5-1
      250 A DC for signalling circuit conforming to IEC 60947-5-1
      900 A at 440 V for power circuit conforming to IEC 60947
      Rated breaking capacity900 A at 440 V for power circuit conforming to IEC 60947
      [Icw] rated short-time withstand current400 A 40 °C – 10 s for power circuit
      810 A 40 °C – 1 s for power circuit
      84 A 40 °C – 10 min for power circuit
      208 A 40 °C – 1 min for power circuit
      100 A – 1 s for signalling circuit
      120 A – 500 ms for signalling circuit
      140 A – 100 ms for signalling circuit
      Associated fuse rating10 A gG for signalling circuit conforming to IEC 60947-5-1
      100 A gG at <= 690 V coordination type 1 for power circuit
      100 A gG at <= 690 V coordination type 2 for power circuit
      Average impedance1.5 mOhm – Ith 80 A 50 Hz for power circuit
      Power dissipation per pole3.7 W AC-3
      9.6 W AC-1
      3.7 W AC-3e
      [Ui] rated insulation voltagePower circuit: 600 V CSA certified
      Power circuit: 600 V UL certified
      Signalling circuit: 690 V conforming to IEC 60947-1
      Signalling circuit: 600 V CSA certified
      Signalling circuit: 600 V UL certified
      Power circuit: 690 V conforming to IEC 60947-4-1
      Overvoltage categoryIII
      Pollution degree3
      [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
      Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
      B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
      Mechanical durability10 Mcycles
      Electrical durability1.45 Mcycles 50 A AC-3 at Ue <= 440 V
      0.5 Mcycles 80 A AC-1 at Ue <= 440 V
      1.45 Mcycles 50 A AC-3e at Ue <= 440 V
      Control circuit typeDC standard
      Coil technologyBuilt-in bidirectional peak limiting diode suppressor
      Control circuit voltage limits0.1…0.3 Uc (-40…70 °C):drop-out DC
      0.75…1.25 Uc (-40…60 °C):operational DC
      1…1.25 Uc (60…70 °C):operational DC
      Inrush power in W19 W (at 20 °C)
      Hold-in power consumption in W7.4 W at 20 °C
      Operating time50 ±15 % ms closing
      16…24 ms opening
      Time constant34 ms
      Maximum operating rate3600 cyc/h at 60 °C
      Connections – terminalsControl circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end
      Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end
      Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end
      Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end
      Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end
      Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end
      Power circuit: screw clamp terminals 1 1…35 mm² – cable stiffness: flexible without cable end
      Power circuit: screw clamp terminals 2 1…25 mm² – cable stiffness: flexible without cable end
      Power circuit: screw clamp terminals 1 1…35 mm² – cable stiffness: flexible with cable end
      Power circuit: screw clamp terminals 2 1…25 mm² – cable stiffness: flexible with cable end
      Power circuit: screw clamp terminals 1 1…35 mm² – cable stiffness: solid without cable end
      Power circuit: screw clamp terminals 2 1…25 mm² – cable stiffness: solid without cable end
      Tightening torqueControl circuit: 1.7 N.m – on EverLink BTR screw connectors – with screwdriver flat Ø 6 mm
      Control circuit: 1.7 N.m – on EverLink BTR screw connectors – with screwdriver Philips No 2
      Power circuit: 8 N.m – on EverLink BTR screw connectors – cable 25…35 mm² hexagonal screw head 4 mm
      Power circuit: 5 N.m – on EverLink BTR screw connectors – cable 1…25 mm² hexagonal screw head 4 mm
      Control circuit: 1.7 N.m – on EverLink BTR screw connectors – with screwdriver pozidriv No 2
      Power circuit: 2.5 N.m – on EverLink BTR screw connectors – with screwdriver pozidriv No 2
      Auxiliary contact composition1 NO + 1 NC
      Auxiliary contacts typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
      type mirror contact 1 NC conforming to IEC 60947-4-1
      Signalling circuit frequency25…400 Hz
      Minimum switching voltage17 V for signalling circuit
      Minimum switching current5 mA for signalling circuit
      Insulation resistance> 10 MOhm for signalling circuit
      Non-overlap time1.5 ms on de-energisation between NC and NO contact
      1.5 ms on energisation between NC and NO contact
      Mounting supportRail
      Plate
      Environment
      StandardsEN 60947-4-1
      EN 60947-5-1
      IEC 60947-4-1
      IEC 60947-5-1
      CSA C22.2 No 14
      UL 60947-4-1
      IEC 60335-2-40:Annex JJ
      UL 60335-2-40:Annex JJ
      IEC 60335-1:Clause 30.2
      Product certificationsCCC
      UL
      CB Scheme
      CSA
      CE
      UKCA
      Marine
      EAC
      IP degree of protectionIP20 front face conforming to IEC 60529
      Protective treatmentTH conforming to IEC 60068-2-30
      Climatic withstandconforming to IACS E10 exposure to damp heat
      conforming to IEC 60947-1 Annex Q category D exposure to damp heat
      Permissible ambient air temperature around the device-40…60 °C
      60…70 °C with derating
      Operating altitude0…3000 m
      Fire resistance850 °C conforming to IEC 60695-2-1
      Mechanical robustnessVibrations contactor open (2 Gn, 5…300 Hz)
      Vibrations contactor closed (4 Gn, 5…300 Hz)
      Shocks contactor closed (15 Gn for 11 ms)
      Shocks contactor open (10 Gn for 11 ms)
      Height122 mm
      Width55 mm
      Depth120 mm
      Product weight0.93 kg
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height6.2 cm
      Package 1 Width13.7 cm
      Package 1 Length15.3 cm
      Package 1 Weight995 g
      Unit Type of Package 2S02
      Number of Units in Package 210
      Package 2 Height15 cm
      Package 2 Width30 cm
      Package 2 Length40 cm
      Package 2 Weight10.288 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 50 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      GV3G264LAD9R3LAD4CMLAD9ET1SLADN22LAD4D3ULADN11LADN20LADT2LADN40LAD6K10FLADN31LADN02LADT0LADS2LADR2LADR0LADN04LADN13LADR4LADT4

      ❓ Frequently Asked Questions

      Q: What is the significance of the 50 A rating on the LC1D50AFD?

      A: The 50 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

      Customer Reviews

      Related Products

      Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

      Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

      Lauritz Knudsen (L&T)
      Read more
      SKU: CS91463PO1O
      MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

      MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

      Lauritz Knudsen (L&T)
      ₹12,550.00 Excl. GST
      Add to basket
      SKU: CS92103SODO
      XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
      -46%

      XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

      Schneider Electric
      Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
      Add to basket
      SKU: XB5AR31N
      ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
      -35%

      ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

      Schneider Electric
      Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
      Add to basket
      SKU: ZB2BW36C
      Placeholder
      -20%

      MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

      Schneider Electric
      Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
      Add to basket
      SKU: MS13MD09
      Placeholder
      -50%

      30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

      Schneider Electric
      Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
      Add to basket
      SKU: 30002572
