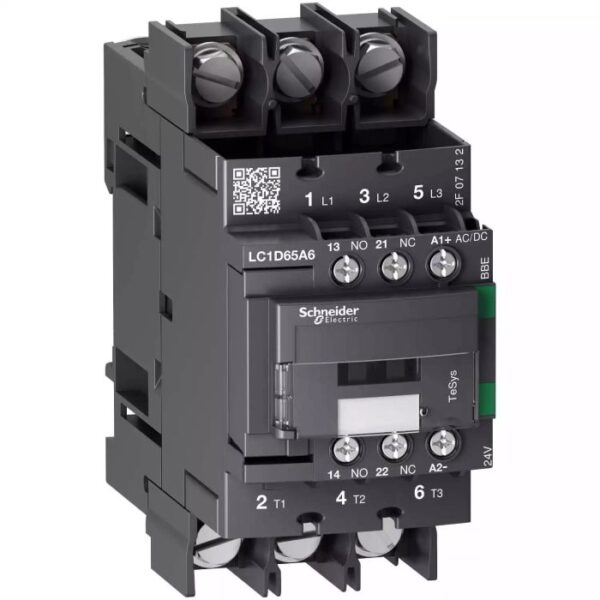

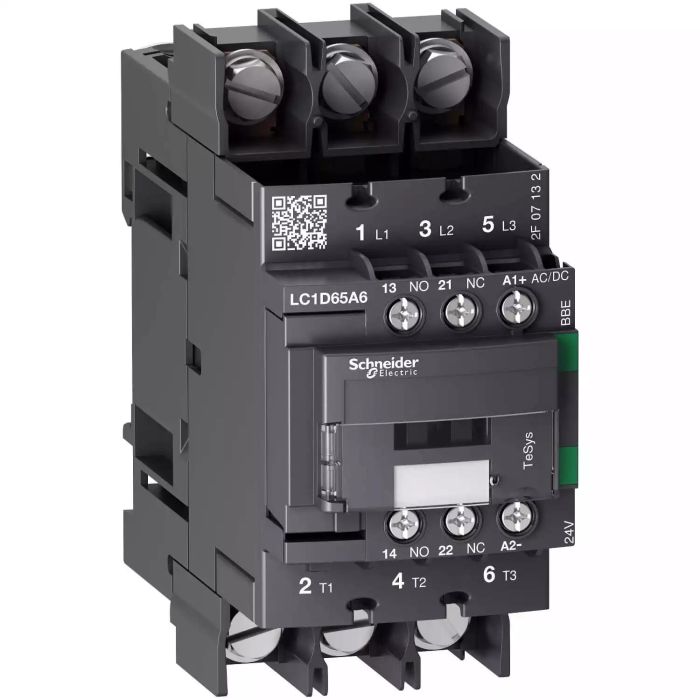

LC1D65A6BBE | TeSys CONT 3P 65A AC3 NO+NC 24V DC LUGS – Schneider Electric

Name: LC1D65A6BBE | TeSys CONT 3P 65A AC3 NO+NC 24V DC LUGS - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LC1D65A6BBE
Price: 22104.00 INR
Availability: BackOrder

SKU: LC1D65A6BBE

Original price was: ₹49,120.00.Current price is: ₹22,104.00. Excl. GST

Dispatch By : 10 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

LADN206 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LADN206

-55%

LADN046 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LADN046

-55%

LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAD9ET1S

-55%

LADN136 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LADN136

-55%

LADN316 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LADN316

-55%

LADN226 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LADN226

-55%

LAD4CM | Mechanical interlock, TeSys D contactors LC1D40A-D80A LC1DT60A-DT80A – Schneider Electric

Auxiliary and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: LAD4CM

-55%

LADN116 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LADN116

-55%

LA4DB3B | SUPPRESSOR BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LA4DB3B

-55%

LADT46 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: LADT46

-55%

LADN406 | TeSys CONTACTS BLOCK – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LADN406

Looking for the LC1D65A6BBE | TeSys CONT 3P 65A AC3 NO+NC 24V DC LUGS? This genuine Schneider Electric electrical component from the TeSys Deca Advanced range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 80 A, Power circuit: <= 690 V AC 25...400 Hz, 3P. Order part number LC1D65A6BBE from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LC1D65A6BBE
Category	Electrical Component
Main
Range of product	TeSys Deca Advanced
Product or component type	Contactor
Device short name	LC1D
Contactor application	Motor control Resistive load
Utilisation category	AC-3 AC-3e AC-1 AC-4
Poles description	3P
[Ue] rated operational voltage	Power circuit: <= 690 V AC 25…400 Hz
[Ie] rated operational current	80 A (at <60 °C) at <= 440 V AC-1 for power circuit 65 A (at <60 °C) at <= 440 V AC-3 for power circuit 65 A (at <60 °C) at <= 440 V AC-3e for power circuit
[Uc] control circuit voltage	24 V DC
Complementary
Motor power kW	18.5 kW at 220/230 V AC 50/60 Hz (AC-3) 30 kW at 380/400 V AC 50/60 Hz (AC-3) 37 kW at 415 V AC 50/60 Hz (AC-3) 37 kW at 440 V AC 50/60 Hz (AC-3) 37 kW at 500 V AC 50/60 Hz (AC-3) 37 kW at 660/690 V AC 50/60 Hz (AC-3) 18.5 kW at 220/230 V AC 50/60 Hz (AC-3e) 30 kW at 380/400 V AC 50/60 Hz (AC-3e) 37 kW at 415 V AC 50/60 Hz (AC-3e) 37 kW at 440 V AC 50/60 Hz (AC-3e) 37 kW at 500 V AC 50/60 Hz (AC-3e) 37 kW at 660/690 V AC 50/60 Hz (AC-3e) 11 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp	5 hp at 115 V AC 60 Hz for 1 phase motors 10 hp at 230/240 V AC 60 Hz for 1 phase motors 20 hp at 200/208 V AC 60 Hz for 3 phases motors 20 hp at 230/240 V AC 60 Hz for 3 phases motors 40 hp at 460/480 V AC 60 Hz for 3 phases motors 50 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	With
[Ith] conventional free air thermal current	80 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit
Irms rated making capacity	1000 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity	1000 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current	110 A 40 °C – 10 min for power circuit 260 A 40 °C – 1 min for power circuit 640 A 40 °C – 10 s for power circuit 900 A 40 °C – 1 s for power circuit 100 A – 1 s for signalling circuit 120 A – 500 ms for signalling circuit 140 A – 100 ms for signalling circuit
Associated fuse rating	125 A gG at <= 690 V coordination type 1 for power circuit 125 A gG at <= 690 V coordination type 2 for power circuit 10 A gG for signalling circuit conforming to IEC 60947-5-1
Average impedance	1.5 mOhm – Ith 80 A 50 Hz for power circuit
Power dissipation per pole	9.6 W AC-1 6.3 W AC-3 6.3 W AC-3e
[Ui] rated insulation voltage	Power circuit: 690 V conforming to IEC 60947-4-1 Signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category	III
Pollution degree	3
[Uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability	10 Mcycles
Electrical durability	1.8 Mcycles 57 A AC-3 at Ue <= 440 V 0.5 Mcycles 80 A AC-1 at Ue <= 440 V 1.8 Mcycles 57 A AC-3e at Ue <= 440 V
Control circuit type	DC DC low consumption
Coil technology	Built-in bidirectional peak limiting
Control circuit voltage limits	<= 0.1 Uc (-40…70 °C):drop-out DC 0.8…1.2 Uc (-40…60 °C):operational DC 1…1.2 Uc (60…70 °C):operational DC
Inrush power in W	11.5 W (at 20 °C)
Hold-in power consumption in W	0.5 W at 20 °C
Heat dissipation	0.5 W
Operating time	55…65 ms closing 20…80 ms opening
Maximum operating rate	3600 cyc/h at 60 °C
Connections – terminals	Power circuit: lugs-ring terminals – external diameter: 16.5 mm Control circuit: lugs-ring terminals – external diameter: 8 mm
Tightening torque	Control circuit: 1.7 N.m – on lugs-ring terminals – with screwdriver flat Ø 6 mm M3.5 Control circuit: 1.7 N.m – on lugs-ring terminals – with screwdriver Philips No 2 M3.5 Power circuit: 6 N.m – on lugs-ring terminals hexagonal screw head 10 mm M6 Power circuit: 6 N.m – on lugs-ring terminals – with screwdriver pozidriv No 2 M4 Control circuit: 1.7 N.m – on lugs-ring terminals – with screwdriver pozidriv No 2 M3.5
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency	25…400 Hz
Minimum switching voltage	17 V for signalling circuit
Minimum switching current	5 mA for signalling circuit
Insulation resistance	> 10 MOhm for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Mounting support	Rail Plate
Environment
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC 60335-1
Product certifications	CCC CSA EAC UL KC DNV-GL LROS (Lloyds register of shipping) UKCA
IP degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Permissible ambient air temperature around the device	-40…60 °C 60…70 °C with derating
Operating altitude	0…3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	Vibrations contactor open (2 Gn, 5…300 Hz) Vibrations contactor closed (4 Gn, 5…300 Hz) Shocks contactor open (10 Gn for 11 ms) Shocks contactor closed (15 Gn for 11 ms)
Height	122 mm
Width	55 mm
Depth	120 mm
Product weight	1.002 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	6.000 cm
Package 1 Width	13.500 cm
Package 1 Length	15.500 cm
Package 1 Weight	976.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	10
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	10.075 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

65 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
24V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LAD4CMLAD9ET1SLA4DB3BLADN226LADN116LADN406LADN206LADN316LADN046LADN136LADT46

❓ Frequently Asked Questions

Q: What is the significance of the 65 A rating on the LC1D65A6BBE?

A: The 65 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.
