LC1D80004N7 CONT 125A 4P 415V50 60Hz Schneider Electric lc1d80004n7
Click to enlarge

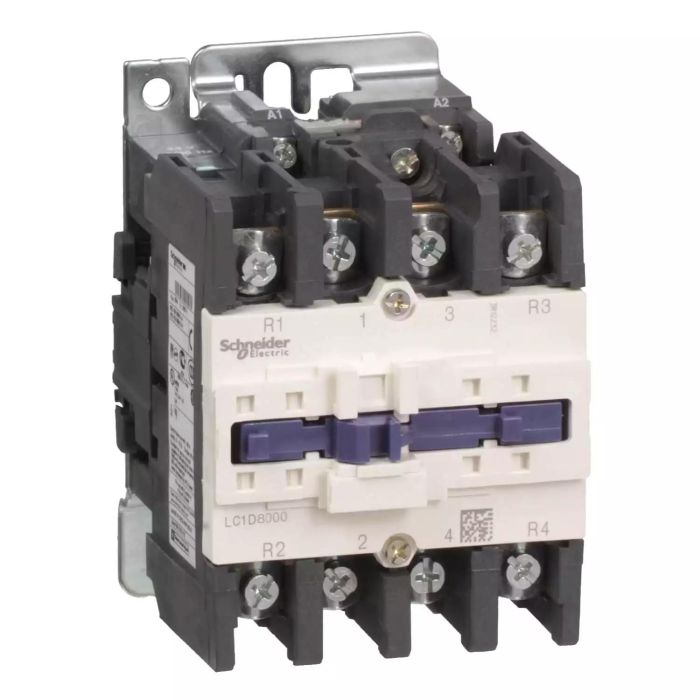

LC1D80004N7 | CONT 125A 4P 415V50/60Hz – Schneider Electric

SKU: LC1D80004N7

Original price was: ₹72,240.00.Current price is: ₹32,508.00. Excl. GST

Dispatch By : 8 Weeks

Dispatch By : 8 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LC1D80004N7

Same-day dispatch · GST invoice available

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LADT2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt2 image 1500x1500
-55%

LADT2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT2
LADN40 Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals Schneider Electric ladn40 image 1500x1500
-55%

LADN40 | Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN40
LAD8N20 Auxiliary contact block, TeSys D, 2NO, side mounting, screw clamp terminals Schneider Electric lad8n20 image 1500x150
-55%

LAD8N20 | Auxiliary contact block, TeSys D, 2NO, side mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹3,675.00.Current price is: ₹1,653.75. Excl. GST
Add to basket
SKU: LAD8N20
LADN22 Auxiliary contact block, TeSys D, 2NO 2NC, front mounting, screw clamp terminals Schneider Electric ladn22 image 1500x
-55%

LADN22 | Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN22
LADN20 Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider Electric ladn20 image 1500x1500
-55%

LADN20 | Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,045.00.Current price is: ₹470.25. Excl. GST
Add to basket
SKU: LADN20
LADN04 Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider Electric ladn04 image 1500x1500
-55%

LADN04 | Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,555.00.Current price is: ₹1,149.75. Excl. GST
Add to basket
SKU: LADN04
-55%

LA4DA2N | RC SUPPRESSOR 380-415VAC FOR D80…D150 – Schneider Electric

Schneider Electric
Original price was: ₹5,055.00.Current price is: ₹2,274.75. Excl. GST
Add to basket
SKU: LA4DA2N
LADN31 Auxiliary contact block, TeSys D, 3NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn31 image 1500x
-55%

LADN31 | Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN31
LADS2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric lads2 image 1500x1500
-55%

LADS2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹7,350.00.Current price is: ₹3,307.50. Excl. GST
Add to basket
SKU: LADS2
LADR2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr2 image 1500x1500
-55%

LADR2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR2
LADT0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt0 image 1500x1500
-55%

LADT0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT0
LADN02 Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals Schneider Electric ladn02 image 1500x1500
-55%

LADN02 | Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,065.00.Current price is: ₹479.25. Excl. GST
Add to basket
SKU: LADN02
LADN11 Auxiliary contact block, TeSys D, 1NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn11 image 1500x
-55%

LADN11 | Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹955.00.Current price is: ₹429.75. Excl. GST
Add to basket
SKU: LADN11
LADR4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr4 image 1500x1500
-55%

LADR4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR4
LADR0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr0 image 1500x1500
-55%

LADR0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR0
LAD8N11 Auxiliary contact block, TeSys D, 1NO 1NC, side mounting, screw clamp terminals Schneider Electric lad8n11 image 1500
-55%

LAD8N11 | Auxiliary contact block, TeSys D, 1NO + 1NC, side mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹3,675.00.Current price is: ₹1,653.75. Excl. GST
Add to basket
SKU: LAD8N11
-55%

LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

Schneider Electric
Original price was: ₹1,370.00.Current price is: ₹616.50. Excl. GST
Add to basket
SKU: LAD9ET1S
LAD8N02 Auxiliary contact block, TeSys D, 2NC, side mounting, screw clamp terminals Schneider Electric lad8n02 image 01 1500x
-56%

LAD8N02 | Auxiliary contact block, TeSys D, 2NC, side mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹3,870.00.Current price is: ₹1,702.80. Excl. GST
Add to basket
SKU: LAD8N02
LADT4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt4 image 1500x1500
-55%

LADT4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT4
LADN13 Auxiliary contact block, TeSys D, 1NO 3NC, front mounting, screw clamp terminals Schneider Electric ladn13 image 1500x
-55%

LADN13 | Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN13

    Looking for the LC1D80004N7 | CONT 125A 4P 415V50/60Hz? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 125 A, Power circuit: <= 300 V DC 25...400 Hz, 4P. Order part number LC1D80004N7 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULC1D80004N7
    CategoryElectrical Component
    Main
    RangeTeSys
    Range of productTeSys Deca
    Product or component typeContactor
    Device short nameLC1D
    Contactor applicationResistive load
    Utilisation categoryAC-1
    Poles description4P
    [Ue] rated operational voltagePower circuit: <= 300 V DC 25…400 Hz
    Power circuit: <= 690 V AC
    [Ie] rated operational current125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
    80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
    [Uc] control circuit voltage415 V AC 50/60 Hz
    Complementary
    Motor power kW22 kW at 220…230 V AC 50/60 Hz
    37 kW at 380…400 V AC 50/60 Hz
    45 kW at 660…690 V AC 50/60 Hz
    55 kW at 500 V AC 50/60 Hz
    45 kW at 415…440 V AC 50/60 Hz
    Compatibility codeLC1D
    Pole contact composition4 NO
    Protective coverWithout
    [Ith] conventional free air thermal current125 A (at 60 °C) for power circuit
    Irms rated making capacity1100 A at 440 V for power circuit conforming to IEC 60947
    Rated breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current640 A 40 °C – 10 s for power circuit
    990 A 40 °C – 1 s for power circuit
    135 A 40 °C – 10 min for power circuit
    320 A 40 °C – 1 min for power circuit
    Associated fuse rating200 A gG at <= 690 V coordination type 1 for power circuit
    160 A gG at <= 690 V coordination type 2 for power circuit
    Average impedance0.8 mOhm – Ith 125 A 50 Hz for power circuit
    Power dissipation per pole12.5 W AC-1
    [Ui] rated insulation voltagePower circuit: 600 V CSA certified
    Power circuit: 600 V UL certified
    Power circuit: 1000 V conforming to IEC 60947-4-1
    Overvoltage categoryIII
    Pollution degree3
    [Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947
    Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
    B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    Mechanical durability4 Mcycles
    Electrical durability0.8 Mcycles 125 A AC-1 at Ue <= 440 V
    Control circuit typeAC at 50/60 Hz
    Coil technologyWithout built-in suppressor module
    Control circuit voltage limits0.85…1.1 Uc (-40…55 °C):operational AC 60 Hz
    0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
    0.8…1.1 Uc (-40…55 °C):operational AC 50 Hz
    1…1.1 Uc (55…70 °C):operational AC 50/60 Hz
    Inrush power in VA245 VA 60 Hz cos phi 0.75 (at 20 °C)
    245 VA 50 Hz cos phi 0.75 (at 20 °C)
    Hold-in power consumption in VA26 VA 60 Hz cos phi 0.3 (at 20 °C)
    26 VA 50 Hz cos phi 0.3 (at 20 °C)
    Heat dissipation6…10 W at 50/60 Hz
    Operating time20…35 ms closing
    6…20 ms opening
    Maximum operating rate3600 cyc/h at 60 °C
    Connections – terminalsControl circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 1 1…2.5 mm² – cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid without cable end
    Power circuit: connector 1 4…50 mm² – cable stiffness: flexible without cable end
    Power circuit: connector 2 4…25 mm² – cable stiffness: flexible without cable end
    Power circuit: connector 1 4…50 mm² – cable stiffness: flexible with cable end
    Power circuit: connector 2 4…16 mm² – cable stiffness: flexible with cable end
    Power circuit: connector 1 4…50 mm² – cable stiffness: solid without cable end
    Power circuit: connector 2 4…25 mm² – cable stiffness: solid without cable end
    Tightening torqueControl circuit: 1.2 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
    Control circuit: 1.2 N.m – on screw clamp terminals – with screwdriver Philips No 2
    Power circuit: 12 N.m – on connector – with screwdriver flat Ø 6 to Ø 8 mm
    Power circuit: 12 N.m – on connector hexagonal screw head 4 mm
    Control circuit: 1.2 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
    Mounting supportPlate
    Rail
    Environment
    StandardsEN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    CSA C22.2 No 14
    UL 60947-4-1
    IEC 60335-2-40:Annex JJ
    UL 60335-2-40:Annex JJ
    IEC 60335-1:Clause 30.2
    Product certificationsCCC
    UL
    CB Scheme
    CSA
    CE
    UKCA
    Marine
    EAC
    IP degree of protectionIP20 front face conforming to IEC 60529
    Protective treatmentTH conforming to IEC 60068-2-30
    Climatic withstandconforming to IACS E10 exposure to damp heat
    Permissible ambient air temperature around the device-40…60 °C
    60…70 °C with derating
    Operating altitude0…3000 m
    Fire resistance850 °C conforming to IEC 60695-2-1
    Flame retardanceV1 conforming to UL 94
    Mechanical robustnessVibrations contactor open (2 Gn, 5…300 Hz)
    Shocks contactor open (8 Gn for 11 ms)
    Vibrations contactor closed (3 Gn, 5…300 Hz)
    Shocks contactor closed (10 Gn for 11 ms)
    Height127 mm
    Width96 mm
    Depth125 mm
    Product weight1.76 kg
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height11.0 cm
    Package 1 Width16.0 cm
    Package 1 Length16.3 cm
    Package 1 Weight1.75 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 125 A current rating — confirmed from product specifications; size wiring and terminals to match or exceed this value.
    • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LAD9ET1SLA4DA2NLADN22LADN11LADN20LAD8N11LADT2LADN40LADN31LADN02LADT0LAD8N20LADS2LADR2LADR0LADN04LADN13LADR4LADT4LAD8N02

    ❓ Frequently Asked Questions

    Q: What is the significance of the 125 A rating on the LC1D80004N7?

    A: The 125 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
