LC1D806F5 CONTACTOR Schneider Electric lc1d806f5
Click to enlarge

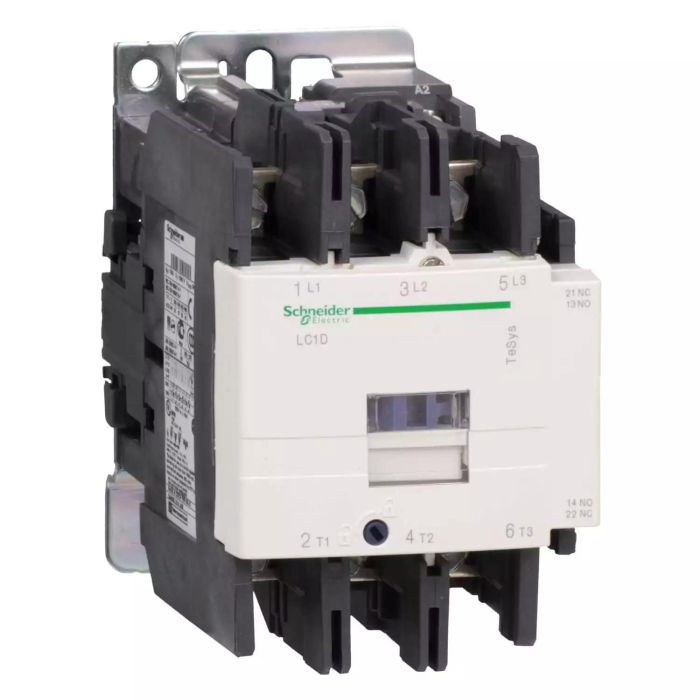

LC1D806F5 | CONTACTOR – Schneider Electric

SKU: LC1D806F5

Original price was: ₹45,075.00.Current price is: ₹20,283.75. Excl. GST

Dispatch By : 3 Weeks

Dispatch By : 3 Weeks

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

LA4DE2U | VARISTOR SUPPRES 110-250VAC FOR D80-D115 – Schneider Electric

Schneider Electric
Original price was: ₹3,205.00.Current price is: ₹1,442.25. Excl. GST
Add to basket
SKU: LA4DE2U
Placeholder
-55%

LADN046 | TeSys CONTACTS BLOCK – Schneider Electric

Original price was: ₹5,020.00.Current price is: ₹2,259.00. Excl. GST
Add to basket
SKU: LADN046
Placeholder
-55%

LA4DT4U | ELECTRONIC TIMER DELAY ON 25- 500 SEC – Schneider Electric

Original price was: ₹12,180.00.Current price is: ₹5,481.00. Excl. GST
Add to basket
SKU: LA4DT4U
-55%

LADN406 | TeSys CONTACTS BLOCK – Schneider Electric

Schneider Electric
Original price was: ₹5,020.00.Current price is: ₹2,259.00. Excl. GST
Add to basket
SKU: LADN406
Placeholder
-44%

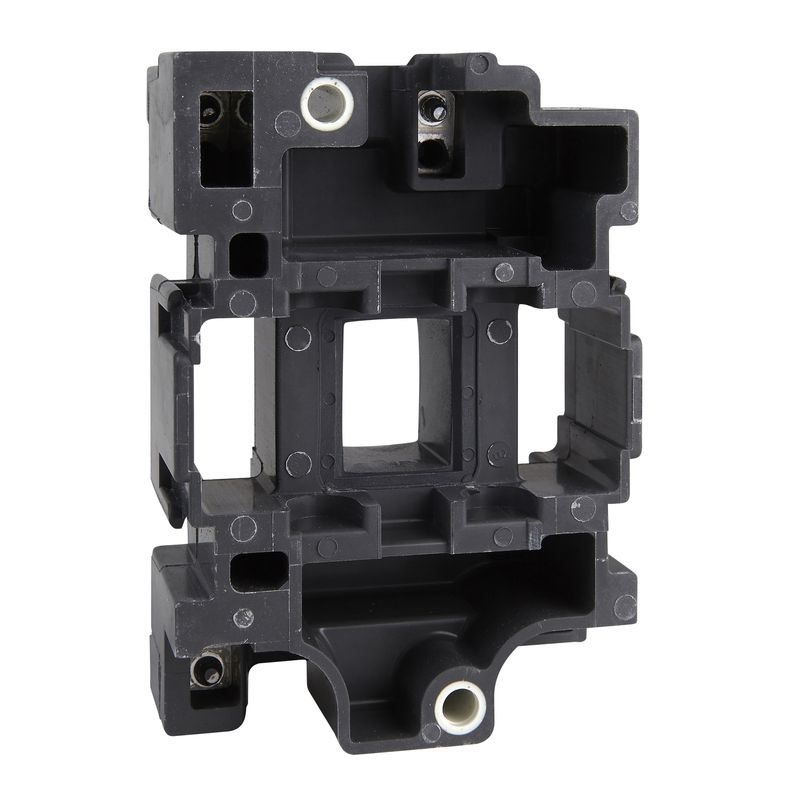

LX1D6F5 | COIL OLD D40-D95 110VAC 50HZ – Schneider Electric

Original price was: ₹13,120.00.Current price is: ₹7,347.20. Excl. GST
Add to basket
SKU: LX1D6F5
Placeholder
-55%

LA4DA2U | TeSys D – suppressor module – RC circuit – 110…240 V AC – Schneider Electric

Schneider Electric
Original price was: ₹3,355.00.Current price is: ₹1,509.75. Excl. GST
Add to basket
SKU: LA4DA2U
-55%

LA4DFB | INTERFACE MODULE RELAY 24VDC – Schneider Electric

Schneider Electric
Original price was: ₹10,015.00.Current price is: ₹4,506.75. Excl. GST
Add to basket
SKU: LA4DFB
Placeholder
-55%

LADN136 | TeSys CONTACTS BLOCK – Schneider Electric

Original price was: ₹5,915.00.Current price is: ₹2,661.75. Excl. GST
Add to basket
SKU: LADN136
Placeholder
-55%

LADN116 | TeSys CONTACTS BLOCK – Schneider Electric

Original price was: ₹2,285.00.Current price is: ₹1,028.25. Excl. GST
Add to basket
SKU: LADN116
Placeholder
-55%

LADN316 | TeSys CONTACTS BLOCK – Schneider Electric

Original price was: ₹5,725.00.Current price is: ₹2,576.25. Excl. GST
Add to basket
SKU: LADN316
-14%

LA4DT2U | ELECTRONIC TIMER DELAY ON 1.5 – 30SEC – Schneider Electric

Schneider Electric
Original price was: ₹10,880.00.Current price is: ₹9,356.80. Excl. GST
Add to basket
SKU: LA4DT2U
Placeholder
-55%

LADT46 | TeSys CONTACTS BLOCK – Schneider Electric

Original price was: ₹16,300.00.Current price is: ₹7,335.00. Excl. GST
Add to basket
SKU: LADT46
-14%

LA4DT0U | ELECTRONIC TIMER DELAY ON 0.1 – 2SEC – Schneider Electric

Schneider Electric
Original price was: ₹10,880.00.Current price is: ₹9,356.80. Excl. GST
Add to basket
SKU: LA4DT0U
-55%

LADN226 | TeSys CONTACTS BLOCK – Schneider Electric

Schneider Electric
Original price was: ₹4,360.00.Current price is: ₹1,962.00. Excl. GST
Add to basket
SKU: LADN226
Placeholder
-55%

LADN206 | TeSys CONTACTS BLOCK – Schneider Electric

Original price was: ₹3,130.00.Current price is: ₹1,408.50. Excl. GST
Add to basket
SKU: LADN206
Placeholder
-55%

LA4DWB | DC SUPPLY BLOCK – Schneider Electric

Original price was: ₹26,495.00.Current price is: ₹11,922.75. Excl. GST
Add to basket
SKU: LA4DWB
-55%

LA4DA2G | SUPPRESSOR BLOCK – Schneider Electric

Schneider Electric
Original price was: ₹5,055.00.Current price is: ₹2,274.75. Excl. GST
Add to basket
SKU: LA4DA2G

    Looking for the LC1D806F5 | CONTACTOR? This genuine Schneider Electric contactor from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 125 A, Power circuit: <= 300 V DC 25...400 Hz, 3P. Order part number LC1D806F5 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULC1D806F5
    CategoryContactor
    Main
    RangeTeSys
    Range of productTeSys Deca
    Product or component typeContactor
    Device short nameLC1D
    Contactor applicationResistive load
    Motor control
    Utilisation categoryAC-3
    AC-3e
    AC-4
    AC-1
    Poles description3P
    [Ue] rated operational voltagePower circuit: <= 300 V DC 25…400 Hz
    Power circuit: <= 690 V AC
    [Ie] rated operational current125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit
    80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
    80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
    [Uc] control circuit voltage110 V AC 50 Hz
    Complementary
    Motor power kW22 kW at 220…230 V AC 50/60 Hz (AC-3)
    37 kW at 380…400 V AC 50/60 Hz (AC-3)
    45 kW at 415…440 V AC 50/60 Hz (AC-3)
    55 kW at 500 V AC 50/60 Hz (AC-3)
    45 kW at 660…690 V AC 50/60 Hz (AC-3)
    15 kW at 400 V AC 50/60 Hz (AC-4)
    22 kW at 220…230 V AC 50/60 Hz (AC-3e)
    37 kW at 380…400 V AC 50/60 Hz (AC-3e)
    45 kW at 415…440 V AC 50/60 Hz (AC-3e)
    55 kW at 500 V AC 50/60 Hz (AC-3e)
    45 kW at 660…690 V AC 50/60 Hz (AC-3e)
    Motor power hp7.5 hp at 120 V AC 50/60 Hz for 1 phase motors
    15 hp at 230/240 V AC 50/60 Hz for 1 phase motors
    30 hp at 200/208 V AC 50/60 Hz for 3 phases motors
    30 hp at 230/240 V AC 50/60 Hz for 3 phases motors
    60 hp at 460/480 V AC 50/60 Hz for 3 phases motors
    60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
    Compatibility codeLC1D
    Pole contact composition3 NO
    Protective coverWith
    [Ith] conventional free air thermal current10 A (at 60 °C) for signalling circuit
    125 A (at 60 °C) for power circuit
    Irms rated making capacity140 A AC for signalling circuit conforming to IEC 60947-5-1
    250 A DC for signalling circuit conforming to IEC 60947-5-1
    1100 A at 440 V for power circuit conforming to IEC 60947
    Rated breaking capacity1100 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current640 A 40 °C – 10 s for power circuit
    990 A 40 °C – 1 s for power circuit
    135 A 40 °C – 10 min for power circuit
    320 A 40 °C – 1 min for power circuit
    100 A – 1 s for signalling circuit
    120 A – 500 ms for signalling circuit
    140 A – 100 ms for signalling circuit
    Associated fuse rating10 A gG for signalling circuit conforming to IEC 60947-5-1
    200 A gG at <= 690 V coordination type 1 for power circuit
    160 A gG at <= 690 V coordination type 2 for power circuit
    Average impedance0.8 mOhm – Ith 125 A 50 Hz for power circuit
    Power dissipation per pole5.1 W AC-3
    12.5 W AC-1
    5.1 W AC-3e
    [Ui] rated insulation voltagePower circuit: 600 V CSA certified
    Power circuit: 600 V UL certified
    Power circuit: 1000 V conforming to IEC 60947-4-1
    Signalling circuit: 690 V conforming to IEC 60947-1
    Signalling circuit: 600 V CSA certified
    Signalling circuit: 600 V UL certified
    Overvoltage categoryIII
    Pollution degree3
    [Uimp] rated impulse withstand voltage8 kV conforming to IEC 60947
    Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
    B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    Mechanical durability10 Mcycles
    Electrical durability0.8 Mcycles 125 A AC-1 at Ue <= 440 V
    1.5 Mcycles 80 A AC-3 at Ue <= 440 V
    1.5 Mcycles 80 A AC-3e at Ue <= 440 V
    Control circuit typeAC at 50 Hz
    Coil technologyWithout built-in suppressor module
    Control circuit voltage limits0.3…0.6 Uc (-40…70 °C):drop-out AC 50 Hz
    0.85…1.1 Uc (-40…55 °C):operational AC 50 Hz
    1…1.1 Uc (55…70 °C):operational AC 50 Hz
    Inrush power in VA200 VA 50 Hz cos phi 0.75 (at 20 °C)
    Hold-in power consumption in VA20 VA 50 Hz cos phi 0.3 (at 20 °C)
    Heat dissipation6…10 W at 50 Hz
    Operating time20…35 ms closing
    6…20 ms opening
    Maximum operating rate3600 cyc/h at 60 °C
    Connections – terminalsControl circuit: lugs-ring terminals – external diameter: 8 mm
    Power circuit: bars 1 – busbar cross section: 3 x 16 mm
    Power circuit: lugs-ring terminals – external diameter: 17 mm
    Tightening torqueControl circuit: 1.2 N.m – on lugs-ring terminals – with screwdriver flat Ø 6 mm M3.5
    Control circuit: 1.2 N.m – on lugs-ring terminals – with screwdriver Philips No 2 M3.5
    Power circuit: 5 N.m – on lugs-ring terminals – with screwdriver flat Ø 8 mm M6
    Power circuit: 5 N.m – on lugs-ring terminals hexagonal screw head 10 mm M6
    Power circuit: 5 N.m – on bars – with screwdriver flat Ø 8 mm M6
    Power circuit: 5 N.m – on bars hexagonal screw head 10 mm M6
    Control circuit: 1.2 N.m – on lugs-ring terminals – with screwdriver pozidriv No 2 M3.5
    Auxiliary contact composition1 NO + 1 NC
    Auxiliary contacts typetype mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
    type mirror contact 1 NC conforming to IEC 60947-4-1
    Signalling circuit frequency25…400 Hz
    Minimum switching voltage17 V for signalling circuit
    Minimum switching current5 mA for signalling circuit
    Insulation resistance> 10 MOhm for signalling circuit
    Non-overlap time1.5 ms on de-energisation between NC and NO contact
    1.5 ms on energisation between NC and NO contact
    Mounting supportPlate
    Rail
    Environment
    StandardsEN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    CSA C22.2 No 14
    UL 60947-4-1
    IEC 60335-2-40:Annex JJ
    UL 60335-2-40:Annex JJ
    IEC 60335-1:Clause 30.2
    Product certificationsCCC
    UL
    CB Scheme
    CSA
    CE
    UKCA
    Marine
    EAC
    IP degree of protectionIP20 front face conforming to IEC 60529
    Protective treatmentTH conforming to IEC 60068-2-30
    Climatic withstandconforming to IACS E10 exposure to damp heat
    Permissible ambient air temperature around the device-40…60 °C
    60…70 °C with derating
    Operating altitude0…3000 m
    Fire resistance850 °C conforming to IEC 60695-2-1
    Flame retardanceV1 conforming to UL 94
    Mechanical robustnessVibrations contactor open (2 Gn, 5…300 Hz)
    Shocks contactor open (8 Gn for 11 ms)
    Vibrations contactor closed (3 Gn, 5…300 Hz)
    Shocks contactor closed (10 Gn for 11 ms)
    Height127 mm
    Width85 mm
    Depth130 mm
    Product weight1.59 kg
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height11.0 cm
    Package 1 Width16.0 cm
    Package 1 Length16.3 cm
    Package 1 Weight1.6 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LA4DA2ULA4DFBLA4DE2ULA4DA2GLA4DT2ULA4DWBLA4DT0ULA4DT4ULADN226LADN116LADN406LADN206LADN316LADN046LADN136LADT46LX1D6F5

    ❓ Frequently Asked Questions

    Q: Can the LC1D806F5 be used for reversing duty (forward/reverse motor control)?

    A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The Schneider Electric series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.

    Q: Can multiple LC1D806F5 contactors be wired for star-delta starting?

    A: Yes. Star-delta starters use three contactors: main (KM1), star (KM2), and delta (KM3). The Schneider Electric contactor series supports mechanical and electrical interlocking accessories that prevent simultaneous energisation of star and delta contactors — critical for safety. Ensure all three contactors are rated correctly for the motor FLC and star-delta transition current.

    Q: What is the electrical and mechanical life of the LC1D806F5?

    A: Schneider Electric contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

    Q: Which Schneider Electric accessories are compatible with the LC1D806F5?

    A: The Schneider Electric LC1D806F5 series supports snap-on accessories including auxiliary contact blocks, coil surge suppressors, mechanical interlocks, and direct-mount overload relays. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the LC1D806F5.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
