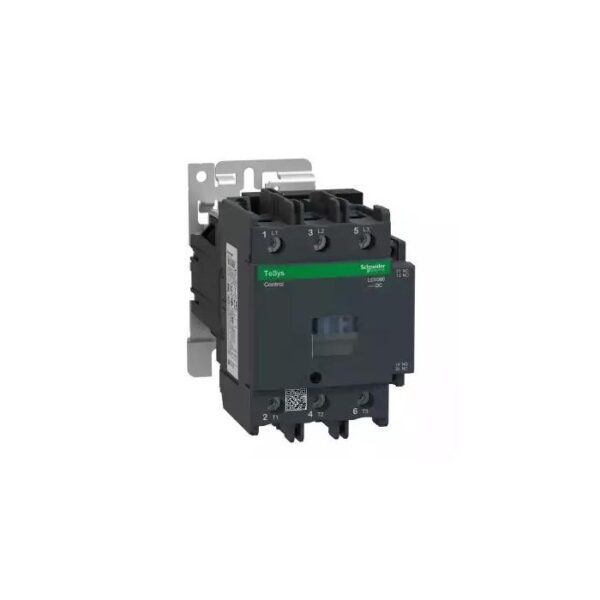

LC1D80MD – TeSys D Contactor (3P, 80A, 220V AC Coil)
Product Overview
The Schneider Electric LC1D80MD is a high-performance TeSys D series contactor designed for reliable switching of electrical circuits. With a 3-pole configuration and 80A current rating, this contactor is ideal for industrial and commercial applications requiring robust performance.
Key Features
- Current Rating: 80A at 415V AC
- Poles: 3 (Three Phase)
- Coil Voltage: 220V AC
- Mounting: DIN rail or screw mounting
- Mechanical Life: 10 million operations
- Electrical Life: 500,000 operations at full load
- Compact Design: Saves panel space
- High Performance: Suitable for motor control and power switching applications
- Safety Standards: Complies with IEC/EN 60947-4-1 standards
Technical Specifications
| Product Range | TeSys D |
| Model Number | LC1D80MD |
| Rated Operational Current (Ie) | 80A |
| Rated Operational Voltage (Ue) | 690V AC |
| Power Consumption | 18VA |
| Contact Material | Silver Alloy |
| Terminal Type | Screw Clamp |
| Weight | Approx. 0.85 kg |
Applications
- Motor control circuits
- Industrial automation systems
- HVAC equipment
- Pump control
- Compressor control
- Power distribution systems
Compatibility
This contactor is compatible with Schneider Electric’s range of auxiliary contacts (LA1, LA2, LA3, LA4), mechanical interlocks (LAD), and pneumatic timers for enhanced functionality.
Safety Information
Installation should be performed by qualified personnel only. Ensure proper isolation before working on the contactor. Follow all local electrical codes and regulations.
