Product Description

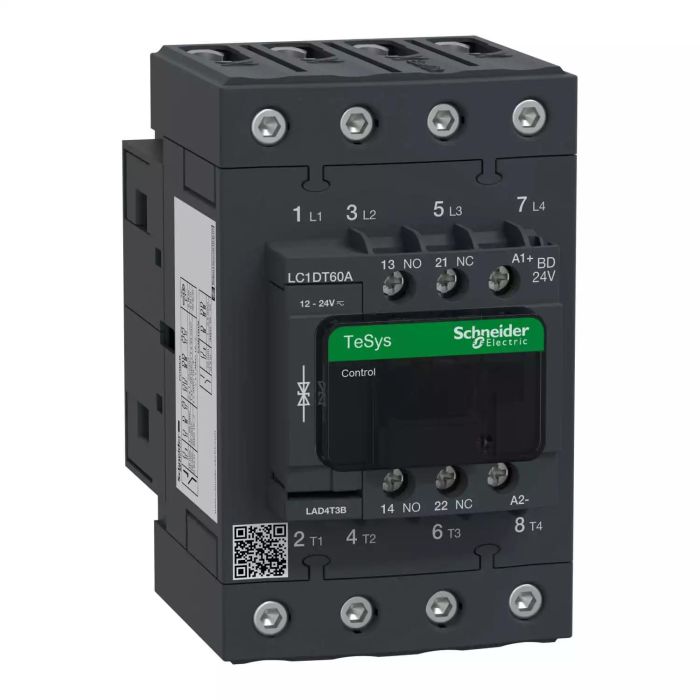

The TeSys LC1DT60ABD is a high-performance 4-pole contactor from Schneider Electric’s renowned TeSys range, designed specifically for electric vehicle charging applications (EVLK series). This robust contactor features a 60A AC1 rating and operates on 24V DC coil voltage, making it ideal for demanding electrical control applications.

Key Features:

• 4-Pole Design: Provides complete circuit control for three-phase applications plus neutral
• 60A AC1 Rating: Suitable for resistive or slightly inductive loads
• 24V DC Coil: Low voltage operation for enhanced safety
• EVLK Series: Specifically designed for electric vehicle charging infrastructure
• High Durability: Mechanical endurance of 1,000,000 operations
• Compact Design: Space-saving solution for control panels
• Silver Alloy Contacts: Ensures reliable performance and long service life
• Screw Clamp Terminals: Secure and reliable connections

Technical Specifications:

• Brand: Schneider Electric
• Model: LC1DT60ABD
• Series: TeSys EVLK
• Number of Poles: 4
• Rated Current: 60A (AC1)
• Coil Voltage: 24V DC
• Contact Material: Silver alloy
• Mounting Type: DIN rail mountable
• Operating Temperature: -25°C to +60°C
• Standards: IEC/EN 60947-4-1, UL 508

Applications:

• Electric vehicle charging stations
• Industrial control panels
• Power distribution systems
• Motor control centers
• HVAC systems
• Lighting control systems

This Schneider Electric contactor offers reliable performance, long service life, and meets international quality standards, making it an excellent choice for professional electrical installations.
