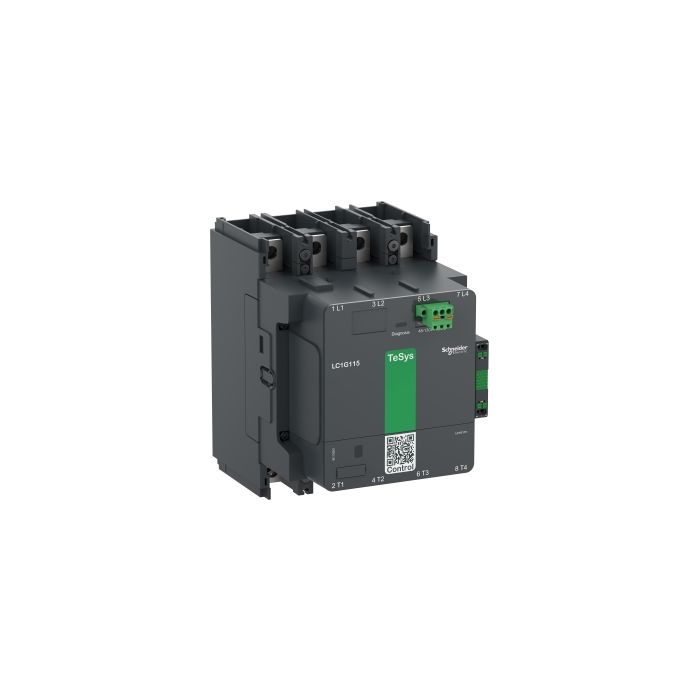

LC1G1154KUEN | ContactorTeSysGiga115 4PStd100-250V ACDC – Schneider Electric

Name: LC1G1154KUEN | ContactorTeSysGiga115 4PStd100-250V ACDC - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LC1G1154KUEN
Price: 38821.50 INR
Availability: BackOrder

SKU: LC1G1154KUEN

Original price was: ₹86,270.00.Current price is: ₹38,821.50. Excl. GST

Dispatch By : 4 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-55%

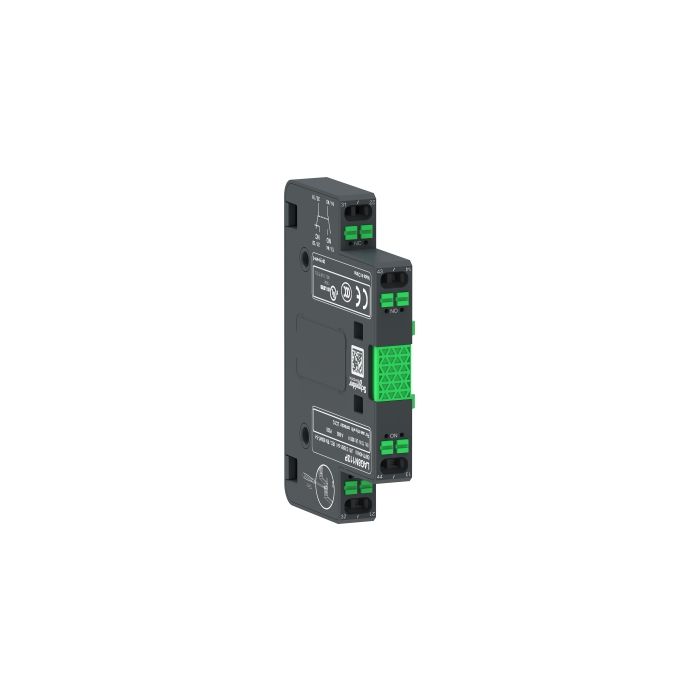

LAG8N113P | AUX contact 1NO+1NC push-in type L1/R1 – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAG8N113P

-55%

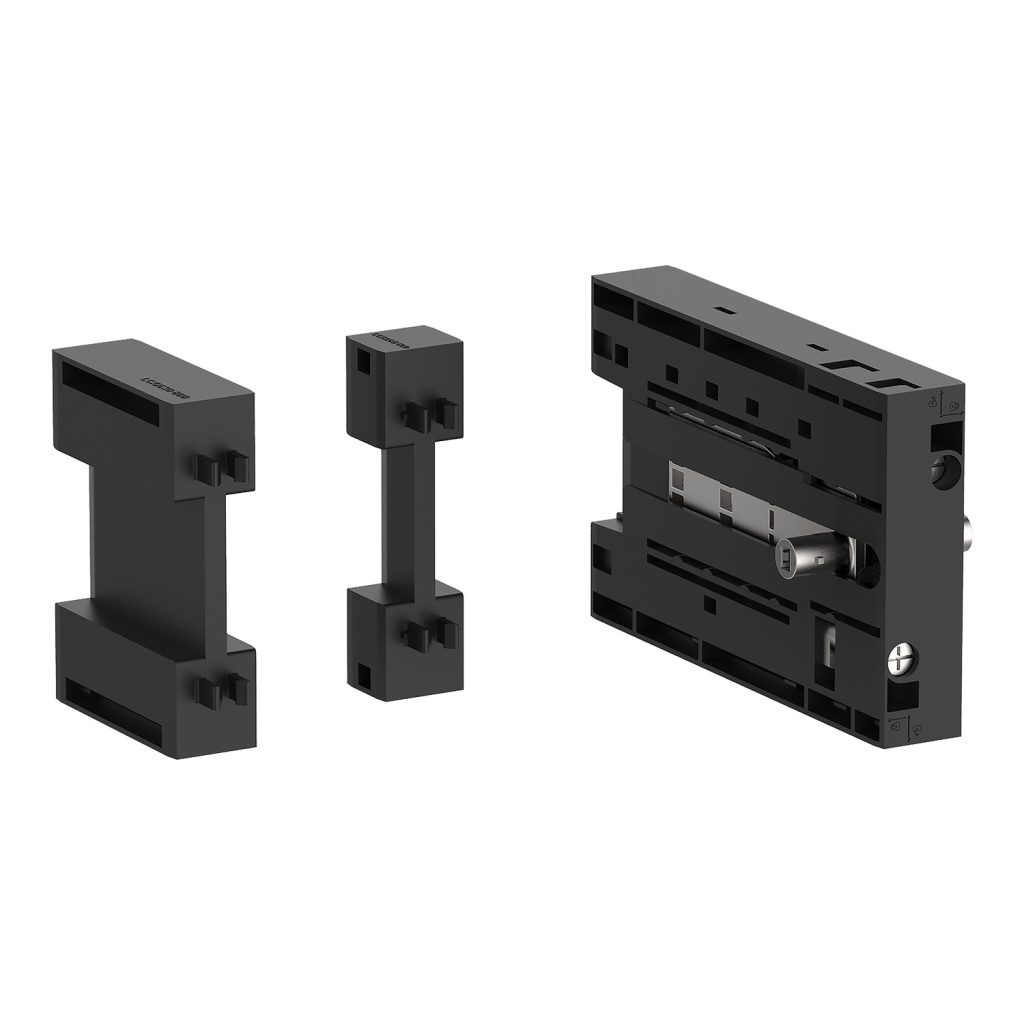

LA9G970 | Mechanical Interlock, for TeSys Giga contactor LC1G115-500, IP20 – Schneider Electric

Auxiliary and Accessories

Schneider Electric

Excl. GST

Add to basket

SKU: LA9G970

-55%

LAG8N203P | AUX contact 2NO push-in type L1/R1 – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAG8N203P

-51%

LAG8N113 | AUX contact 1NO+1NC push-in terminals – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LAG8N113

Looking for the LC1G1154KUEN | ContactorTeSysGiga115 4PStd100-250V ACDC? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 115 A, <= 1000 V AC 50/60 Hz, 4P. Order part number LC1G1154KUEN from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LC1G1154KUEN
Category	Electrical Component
Main
Range	TeSys
Range of product	TeSys Giga
Product or component type	Contactor
Device short name	LC1G
Contactor application	Power switching
Utilisation category	AC-3 AC-3e AC-1 AC-5a AC-5b AC-6a AC-6b DC-1 DC-3 DC-5
Poles description	4P
[Ue] rated operational voltage	<= 1000 V AC 50/60 Hz <= 460 V DC
[Ie] rated operational current	115 A (at <60 °C) at <= 440 V AC-3 250 A (at <40 °C) at <= 1000 V AC-1
[Uc] control circuit voltage	100…250 V AC 50/60 Hz 100…250 V DC
Control circuit voltage limits	Operational: 0.8 Uc Min…1.1 Uc Max (at <60 °C) Drop-out: 0.1 Uc Max…0.45 Uc Min (at <60 °C)
Complementary
[Uimp] rated impulse withstand voltage	8 kV
Overvoltage category	III
[Ith] conventional free air thermal current	250 A (at 40 °C)
Rated breaking capacity	1040 A at 440 V
[Icw] rated short-time withstand current	1.1 kA – 10 s 0.64 kA – 30 s 0.52 kA – 1 min 0.4 kA – 3 min 0.32 kA – 10 min
Associated fuse rating	125 A aM at <= 440 V for motor 125 A aM at <= 690 V for motor 315 A gG at <= 690 V 300 A UL Type J at <= 600 V
Average impedance	0.00018 Ohm
[Ui] rated insulation voltage	1000 V
Power dissipation per pole	10 W AC-1 – Ith 250 A 3 W AC-3 – Ith 115 A
Compatibility code	LC1G
Pole contact composition	4 NO
Auxiliary contact composition	1 NO + 1 NC
Irms rated making capacity	1560 A at 440 V
Coil technology	Built-in bidirectional peak limiting
Safety reliability level	B10d = 400000 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 3000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Mechanical durability	8 Mcycles
inrush power in VA (50/60 Hz, AC)	540 VA
inrush power in W (DC)	380 W
hold-in power consumption in VA (50/60 Hz, AC)	12.4 VA
hold-in power consumption in W (DC)	7.8 W
Operating time	40…70 ms closing 15…50 ms opening
Maximum operating rate	600 cyc/h AC-3 600 cyc/h AC-3e 300 cyc/h AC-1
Connections – terminals	Power circuit: bar 2 – busbar cross section: 25 x 6 mm Power circuit: lugs-ring terminals 1 185 mm² Control circuit: push-in 1 0.2…2.5 mm² – cable stiffness: solid stranded without cable end Control circuit: push-in 1 0.25…2.5 mm² – cable stiffness: flexible with cable end Control circuit: push-in 2 0.5…1.0 mm² with cable end Control circuit: push-in 0.75…2.5 mm² – cable stiffness: solid stranded without cable end Control circuit: push-in 0.75…2.5 mm² – cable stiffness: flexible with cable end
Connection pitch	35 mm
Mounting support	Plate
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 JIS C8201-4-1 JIS C8201-5-1 UL 60335-1 UL 60335-2-40:Annex JJ
Product certifications	CB Scheme CCC cULus EAC CE UKCA EU-RO-MR by DNV-GL
Tightening torque	18 N.m
Height	193 mm
Width	143 mm
Depth	193 mm
Product weight	4.4 kg
Environment
IP degree of protection	IP2X front face with shrouds conforming to IEC 60529 IP2X front face with shrouds conforming to VDE 0106
Ambient air temperature for operation	-25…60 °C
Ambient air temperature for storage	-60…80 °C
Mechanical robustness	Vibrations 5…300 Hz 2 gn contactor open Vibrations 5…300 Hz 4 gn contactor closed Shocks 10 gn 11 ms contactor open Shocks 15 gn 11 ms contactor closed
Colour	Dark grey
Protective treatment	TH
Permissible ambient air temperature around the device	-40…70 °C at Uc
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	25 cm
Package 1 Width	20.8 cm
Package 1 Length	32 cm
Package 1 Weight	5.5 kg
Unit Type of Package 2	P06
Number of Units in Package 2	8
Package 2 Height	75 cm
Package 2 Width	60 cm
Package 2 Length	80 cm
Package 2 Weight	52.5 kg
Contractual warranty
Warranty (in months)	18
