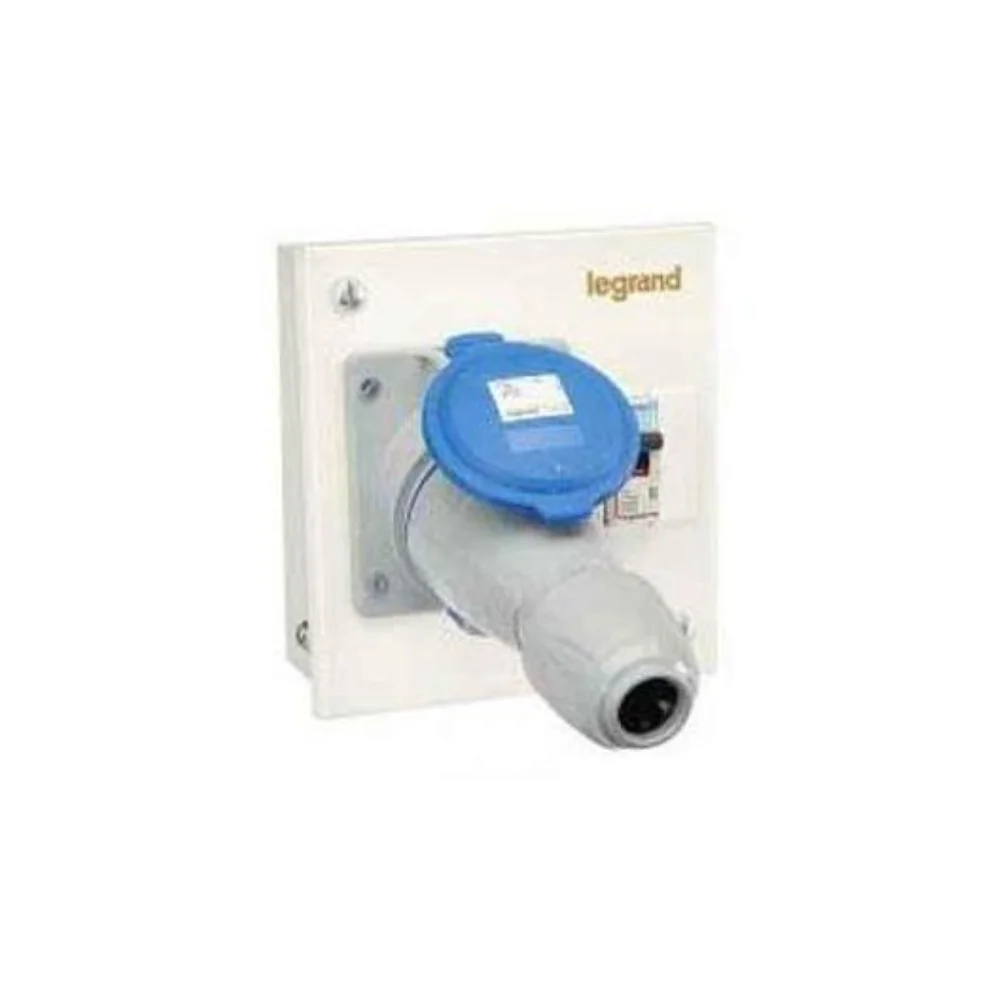

Legrand Ekinox3 P-17 Tempra Plug & Socket Distribution Board 32 A, 3P+E-FP, 8 Module | 5078 61

Name: Legrand Ekinox3 P-17 Tempra Plug & Socket Distribution Board 32 A, 3P+E-FP, 8 Module | 5078 61 - myelectric.in
Brand: Legrand
SKU: 5078 61
Price: 8516.00 INR
Availability: InStock

SKU: 5078 61

₹8,516.00 Excl. GST

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Leading Brand 5078 61 is a distribution board, engineered for safe and organised power distribution in demanding Indian and international installations. Key ratings include 32 A, 3 Poles. Buy the Legrand Ekinox3 P-17 Tempra Plug & Socket Distribution Board 32 A, 3P+E-FP, 8 Module | 5078 61 online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Parameter	Value
Brand	Leading Brand
Part Number / SKU	5078 61
Category	Distribution Board
Current Rating	32 A
Pin Configuration	4 Pin (3P+E) — 3 Phase + Earth (no neutral)
Poles	3 Poles
Module Capacity	8 modules
Standard	IEC 61439-3 / IS 8623
Certifications	BIS certified where applicable

⚡ Key Features

8 modules — accommodates this number of standard 17.5mm DIN rail modules (MCBs, RCCBs, RCBOs) plus busbars and neutral terminal blocks.
35mm DIN rail and neutral busbar pre-fitted — ready to accept MCBs, RCCBs, RCBOs, and surge protection devices directly from the box with no additional mounting hardware.
Knock-out cable entry points on top, bottom, and sides — accommodate PVC conduit, steel conduit, trunking, or direct cable entry without drilling the enclosure body.
Flame-retardant thermoplastic construction (UL 94 V-0) — self-extinguishes within 10 seconds; does not propagate flame in the event of internal fault or external fire exposure.
Manufactured to IEC 61439-3 / IS 8623 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Leading Brand product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 32 A rating on the 5078 61?

A: The 32 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: The 5078 61 has a 4 Pin (3P+E) — 3 Phase + Earth (no neutral) configuration — can it be used with a standard 3-pin socket?

A: No. The 4 Pin (3P+E) — 3 Phase + Earth (no neutral) configuration on the 5078 61 is an IEC 60309 industrial standard and physically incompatible with domestic 3-pin or 5-pin BS 1363/IS 1293 sockets. This is intentional — the colour coding and keyway system prevents accidental connection to the wrong voltage. Match the plug to a correctly rated IEC 60309 socket of the same pin count, current rating, and IP rating.

Q: How many single-pole MCBs can be installed in the 5078 61 with 8 modules?

A: With 8 modules available, the 5078 61 can accommodate that many standard 17.5mm-pitch single-pole devices. Multi-pole MCBs occupy proportionally more space: 2P = 2 modules, 3P = 3 modules, 4P = 4 modules. Mixed configurations (e.g. one 2P RCCB + remaining SP MCBs) can be planned using the module count.
