LP1D40008FD | TeSys D contactor - 4P(2 NO + 2 NC) - AC-1 - <= 440 V 60 A - 110 V DC coil - Schneider Electric - Image 1
Click to enlarge

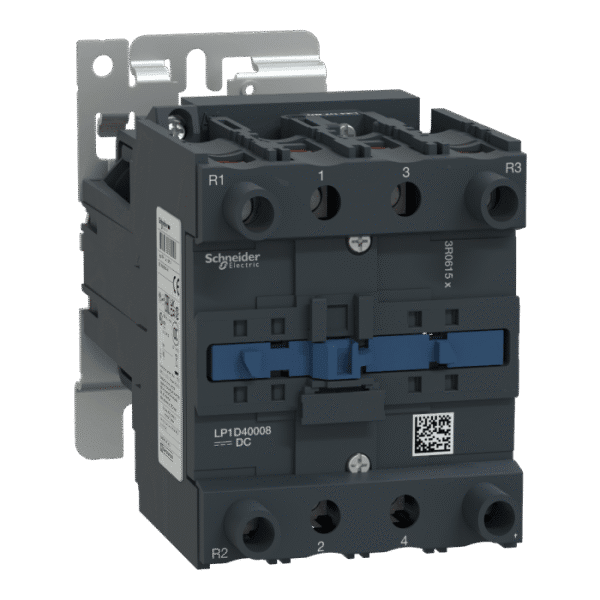

LP1D40008FD | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 60 A - 110 V DC coil - Schneider Electric

SKU: LP1D40008FD

Original price was: ₹40,370.00.Current price is: ₹18,166.50. Excl. GST

Dispatch By : 8 Weeks

Dispatch By : 8 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LP1D40008FD

Same-day dispatch · GST invoice available

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

LADT4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt4 image 1500x1500
-55%

LADT4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT4
LADN13 Auxiliary contact block, TeSys D, 1NO 3NC, front mounting, screw clamp terminals Schneider Electric ladn13 image 1500x
-55%

LADN13 | Auxiliary contact block, TeSys D, 1NO + 3NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN13
LADN11 Auxiliary contact block, TeSys D, 1NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn11 image 1500x
-55%

LADN11 | Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹955.00.Current price is: ₹429.75. Excl. GST
Add to basket
SKU: LADN11
-55%

LA4DC3U | FLYWHEEL DIODE SUPPRES 24-250VDC D80-D95 – Schneider Electric

Schneider Electric
Original price was: ₹3,355.00.Current price is: ₹1,509.75. Excl. GST
Add to basket
SKU: LA4DC3U
LADR0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr0 image 1500x1500
-55%

LADR0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR0
LADN40 Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals Schneider Electric ladn40 image 1500x1500
-55%

LADN40 | Auxiliary contact block, TeSys D, 4NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN40
LADN31 Auxiliary contact block, TeSys D, 3NO 1NC, front mounting, screw clamp terminals Schneider Electric ladn31 image 1500x
-55%

LADN31 | Auxiliary contact block, TeSys D, 3NO + 1NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN31
LADR4 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr4 image 1500x1500
-55%

LADR4 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR4
LADT2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt2 image 1500x1500
-55%

LADT2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT2
LADS2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric lads2 image 1500x1500
-55%

LADS2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹7,350.00.Current price is: ₹3,307.50. Excl. GST
Add to basket
SKU: LADS2
LADR2 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladr2 image 1500x1500
-55%

LADR2 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADR2
LADN22 Auxiliary contact block, TeSys D, 2NO 2NC, front mounting, screw clamp terminals Schneider Electric ladn22 image 1500x
-55%

LADN22 | Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,740.00.Current price is: ₹783.00. Excl. GST
Add to basket
SKU: LADN22
LADN02 Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals Schneider Electric ladn02 image 1500x1500
-55%

LADN02 | Auxiliary contact block, TeSys D, 2NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,065.00.Current price is: ₹479.25. Excl. GST
Add to basket
SKU: LADN02
LADT0 TeSys D time delay auxiliary contact block 1 NO 1 NC screw clamp terminals Schneider Electric ladt0 image 1500x1500
-55%

LADT0 | TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹6,895.00.Current price is: ₹3,102.75. Excl. GST
Add to basket
SKU: LADT0
-55%

LAD9ET1S | TeSys SAFETY COVER RED FOR 09-38A – 40 – Schneider Electric

Schneider Electric
Original price was: ₹1,370.00.Current price is: ₹616.50. Excl. GST
Add to basket
SKU: LAD9ET1S
LADN20 Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider Electric ladn20 image 1500x1500
-55%

LADN20 | Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹1,045.00.Current price is: ₹470.25. Excl. GST
Add to basket
SKU: LADN20
LADN04 Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider Electric ladn04 image 1500x1500
-55%

LADN04 | Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals – Schneider Electric

Schneider Electric
Original price was: ₹2,555.00.Current price is: ₹1,149.75. Excl. GST
Add to basket
SKU: LADN04

    Looking for the LP1D40008FD | TeSys D contactor – 4P(2 NO + 2 NC) – AC-1 – <= 440 V 60 A - 110 V DC coil? This genuine Schneider Electric contactor from the TeSys range is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 60 A, Power circuit: <= 1000 V AC 25...400 Hz, 4P. Order part number LP1D40008FD from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULP1D40008FD
    CategoryContactor
    Main
    RangeTeSys
    Range of productTeSys Deca
    Product or component typeContactor
    Device short nameLP1D
    Contactor applicationResistive load
    Utilisation categoryAC-1
    Poles description4P
    [Ue] rated operational voltagePower circuit: <= 1000 V AC 25…400 Hz
    [Ie] rated operational current60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
    [Uc] control circuit voltage110 V DC
    Complementary
    Compatibility codeLP1D
    Pole contact composition2 NO + 2 NC
    Protective coverWith
    [Ith] conventional free air thermal current60 A (at 60 °C) for power circuit
    Irms rated making capacity800 A at 440 V for power circuit conforming to IEC 60947
    Rated breaking capacity800 A at 440 V for power circuit conforming to IEC 60947
    [Icw] rated short-time withstand current72 A 40 °C – 10 min for power circuit
    165 A 40 °C – 1 min for power circuit
    320 A 40 °C – 10 s for power circuit
    720 A 40 °C – 1 s for power circuit
    Associated fuse rating80 A gG at <= 690 V coordination type 1 for power circuit
    80 A gG at <= 690 V coordination type 2 for power circuit
    Average impedance1.5 mOhm – Ith 60 A 50 Hz for power circuit
    Power dissipation per pole5.4 W AC-1
    [Ui] rated insulation voltagePower circuit: 690 V conforming to IEC 60947-4-1
    Power circuit: 600 V CSA certified
    Power circuit: 600 V UL certified
    Overvoltage categoryIII
    Pollution degree3
    [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947
    Safety reliability levelB10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
    B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
    Mechanical durability10 Mcycles
    Electrical durability1.4 Mcycles 60 A AC-1 at Ue <= 440 V
    Control circuit typeDC DC standard
    Coil technologyBuilt-in bidirectional peak limiting diode suppressor
    Control circuit voltage limits0.1…0.3 Uc (-40…55 °C):drop-out DC
    0.85…1.1 Uc (-40…55 °C):operational DC
    Inrush power in W22 W (at 20 °C)
    Hold-in power consumption in W22 W at 20 °C
    Operating time4…19 ms opening
    12…26 ms closing
    Time constant75 ms
    Maximum operating rate3600 cyc/h at 60 °C
    Connections – terminalsPower circuit: screw clamp terminals 1 2.5…25 mm² – cable stiffness: flexible without cable end
    Power circuit: screw clamp terminals 2 2.5…16 mm² – cable stiffness: flexible without cable end
    Power circuit: screw clamp terminals 1 2.5…25 mm² – cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 2 2.5…10 mm² – cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 1 2.5…25 mm² – cable stiffness: solid
    Power circuit: screw clamp terminals 2 2.5…16 mm² – cable stiffness: solid
    Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: flexible without cable end
    Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 2 1…2.5 mm² – cable stiffness: flexible with cable end
    Control circuit: screw clamp terminals 1 1…4 mm² – cable stiffness: solid
    Control circuit: screw clamp terminals 2 1…4 mm² – cable stiffness: solid
    Tightening torquePower circuit: 8 N.m – on screw clamp terminals – cable 25…35 mm² hexagonal screw head 4 mm
    Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm
    Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver Philips No 2
    Power circuit: 5 N.m – on screw clamp terminals – cable 1…25 mm² hexagonal screw head 4 mm
    Control circuit: 1.7 N.m – on screw clamp terminals – with screwdriver pozidriv No 2
    Mounting supportPlate
    Rail
    Environment
    StandardsCSA C22.2 No 14
    EN 60947-4-1
    EN 60947-5-1
    IEC 60947-4-1
    IEC 60947-5-1
    UL 60947-4-1
    Product certificationsUL
    CSA
    CCC
    EAC
    UKCA
    CB
    DNV-GL
    RINA
    BV
    LROS (Lloyds register of shipping)
    IP degree of protectionIP20 front face conforming to IEC 60529
    Permissible ambient air temperature around the device-40…60 °C
    60…70 °C with derating
    Operating altitude0…3000 m
    Fire resistance850 °C conforming to IEC 60695-2-1
    Flame retardanceV1 conforming to UL 94
    Mechanical robustnessShocks contactor open (8 Gn for 11 ms)
    Shocks contactor closed (10 Gn for 11 ms)
    Vibrations contactor opened (2 Gn, 5…300 Hz)
    Vibrations contactor closed (4 Gn, 5…300 Hz)
    Height127 mm
    Width85 mm
    Depth182 mm
    Product weight2.21 kg
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height22.5 cm
    Package 1 Width14.8 cm
    Package 1 Length18.0 cm
    Package 1 Weight2.4 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • 60 A AC-3 rated — suits up to a 30 kW squirrel-cage induction motor at 415V for direct-on-line (DOL) starting and running.
    • 110V DC coil — connects directly to pushbutton station, PLC digital output, or timer relay; suitable for standard 50Hz Indian industrial control circuits.
    • 4 Poles main contacts with silver-alloy (AgSnO₂) tips — rated for AC-3 duty (DOL motor starting/stopping); low contact resistance reduces heat at rated current.
    • Main contacts rated up to 440V AC — compatible with 415V AC three-phase Indian supply and 480V AC North American systems.
    • TeSys D series — world-standard contactor footprint; clip-on LA1D/LA4D auxiliary contact blocks and accessories attach without tools; compatible with TeSys LRD overload relays for direct-mount DOL starters.
    • Manufactured to IEC 60947-4-1 / IS 13947-4-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

    🔗 Compatible Products & Accessories

    The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

    LAD9ET1SLA4DC3ULADN22LADN11LADN20LADT2LADN40LADN31LADN02LADT0LADS2LADR2LADR0LADN04LADN13LADR4LADT4

    ❓ Frequently Asked Questions

    Q: Is the LP1D40008FD rated 60 A for AC-3 motor duty or AC-1 resistive duty?

    A: The 60 A rating of this Schneider Electric contactor applies to AC-3 duty (squirrel cage motor starting and running). For AC-1 (resistive/non-inductive) loads, the current can be up to ~1.3× the AC-3 rating. AC-4 (plugging/reversing) requires significant de-rating — consult the Schneider Electric selection table.

    Q: The LP1D40008FD has a coil voltage of 110V DC — what control supply is needed?

    A: This Schneider Electric device requires a 110V DC control supply connected to the coil terminals (A1 and A2). For DC coils, observe polarity where marked. DC coils produce no inrush and are preferred for PLC output cards. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

    Q: What circuit can the 2 NO + 2 NC contacts of the LP1D40008FD switch at 440V AC?

    A: The 2 NO + 2 NC contacts on the LP1D40008FD are rated for switching at up to 440V AC. These auxiliary contacts are typically used for: (1) indication lamps and buzzers, (2) PLC input feedback to confirm device state, (3) interlocking with other contactors or relays in control circuits. Check the current rating of the auxiliary contact (typically 10A at 250V AC) — do not use for power load switching.

    Q: What is the electrical and mechanical life of the LP1D40008FD?

    A: Schneider Electric contactors are rated for millions of operations: typically 10–30 million mechanical operations and 1–3 million electrical operations at rated current and voltage (AC-3 duty). High-frequency switching applications (>10 operations/hour) require checking the specific thermal capacity of the contactor for continuous duty without overheating.

    Q: Can the LP1D40008FD be used for reversing duty (forward/reverse motor control)?

    A: Contactors used for reversing must be wired with two contactors interlocked so only one can energise at a time. The Schneider Electric series provides mechanical interlock kits that physically prevent both contactors from closing simultaneously — mandatory for reversing and brake applications to prevent phase-to-phase short circuits.

    Customer Reviews

    Related Products

    Solar Controller for 415V Induction motor pumps,10HP,Without RMU L T CS91466PO1O newbradd 7

    Solar Controller for 415V Induction motor pumps,3HP,Without RMU | L&T – CS91463PO1O

    Lauritz Knudsen (L&T)
    Read more
    SKU: CS91463PO1O
    MU-G10HN, 10HP, 20-32A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application L T CS92

    MU-G7.5,7.5HP,13-22A, 360V wideband coil Voltage, DOL, Three Phase DOL Controller for Submersible Pump Application | L&T – CS92103SODO

    Lauritz Knudsen (L&T)
    ₹12,550.00 Excl. GST
    Add to basket
    SKU: CS92103SODO
    XB5AR31N Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO Schneider Electric xb5
    -46%

    XB5AR31N | Push button, Harmony XB5N XB7N, plastic, mushroom, green, 60mm, spring return, unmarked, 1 NO – Schneider Electric

    Schneider Electric
    Original price was: ₹675.00.Current price is: ₹364.50. Excl. GST
    Add to basket
    SKU: XB5AR31N
    ZB2BW36C Ø 22 mm fixing hole push button head with blue lamp Schneider Electric zb2bw36c
    -35%

    ZB2BW36C | Ø 22 mm fixing hole – push button head with blue lamp – Schneider Electric

    Schneider Electric
    Original price was: ₹305.00.Current price is: ₹198.25. Excl. GST
    Add to basket
    SKU: ZB2BW36C
    Placeholder
    -20%

    MS13MD09 | 7MDL, 1HP 3 PHASE DOL STARTER – Schneider Electric

    Schneider Electric
    Original price was: ₹5,530.00.Current price is: ₹4,424.00. Excl. GST
    Add to basket
    SKU: MS13MD09
    Placeholder
    -50%

    30002572 | EM1200 Energy meter Cl 0.5 RS485 LCD – Schneider Electric

    Schneider Electric
    Original price was: ₹6,271.00.Current price is: ₹3,135.50. Excl. GST
    Add to basket
    SKU: 30002572
