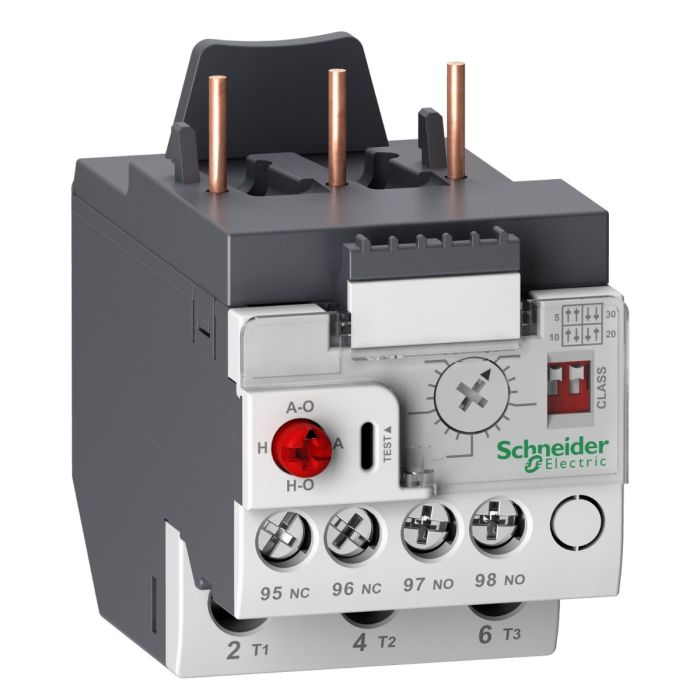

LR9D02 | TeSys LRD – Electronic Thermal Overload Relay – 3P – 0.4…2 A
Schneider Electric
Product Description
The TeSys LRD LR9D02 is a high-performance electronic thermal overload relay designed by Schneider Electric for reliable motor protection. This 3-pole relay offers an adjustable current range of 0.4 to 2 A, making it ideal for safeguarding small to medium-sized motors against overloads, phase imbalances, and phase loss.
Key Features
- Type: Electronic thermal overload relay
- Poles: 3P (3-phase protection)
- Current Range: 0.4…2 A (adjustable)
- Brand: Schneider Electric
- Product Line: TeSys LRD series
- Mounting: Snap-on for easy installation
- Protection Functions: Overload, phase imbalance, phase loss
- Reset Mode: Manual or automatic (selectable)
- Compatibility: Designed to work with TeSys D contactors
Applications
The LR9D02 is perfect for various industrial and commercial applications including:
- Motor control centers
- Pump and fan control
- Conveyor systems
- HVAC equipment
- Machine tools
Why Choose This Product?
- Precise motor protection with electronic sensing
- Compact design saves panel space
- Easy installation and adjustment
- Reliable performance from Schneider Electric
- Wide range of compatible contactors
Technical Specifications
| Parameter | Value |
|---|---|
| Product Reference | LR9D02 |
| Type | Electronic thermal overload relay |
| Number of Poles | 3 |
| Current Setting Range | 0.4…2 A |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Operational Voltage (Ue) | 690 V |
| Ambient Temperature Range | -20°C to +60°C |
Note: Always verify compatibility with your specific application requirements.
