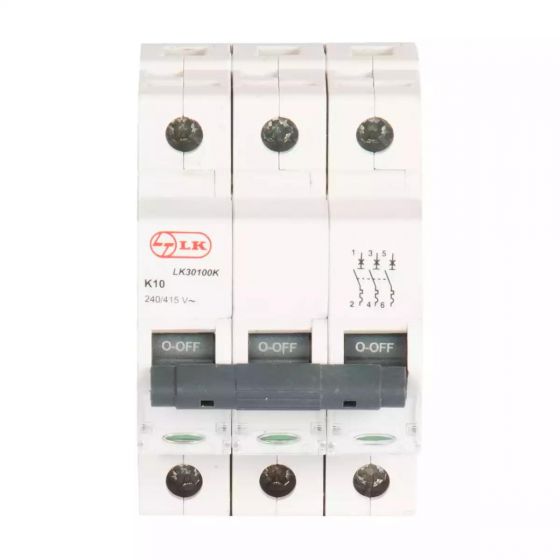

LTLK K-Curve MCB for submersible pumps- 10A, 3P | L&T – LK30100K

Name: LTLK K-Curve MCB for submersible pumps- 10A, 3P | L&amp;T - LK30100K
Brand: Lauritz Knudsen (L&amp;T)
SKU: LK30100K
Availability: InStock

SKU: LK30100K

₹1,820.00 Excl. GST

13 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the LTLK K-Curve MCB for submersible pumps- 10A, 3P | L&T? This genuine LK30100K miniature circuit breaker (mcb) is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 10 A, 3 Poles. Order part number LK30100K from myelectric.in — a trusted LK30100K supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Parameter	Value
Brand	LK30100K
Part Number / SKU	LK30100K
Category	Miniature Circuit Breaker (MCB)
Current Rating	10 A
Poles	3 Poles
Rated Voltage	230/400V AC
Rated Frequency	50/60 Hz
Trip Mechanism	Thermal-magnetic (bimetal overload + electromagnetic short-circuit)
Mounting	35mm DIN rail (EN 60715)
Width	54 mm (3 × 18mm modules)
Electrical Endurance	≥ 20,000 operating cycles (per IEC 60898-1)
Pollution Degree	3 (per IEC 60664-1)
Standard	IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial)
Certifications	BIS certified where applicable

⚡ Key Features

10 A rated current — provides overload and short-circuit protection for the connected circuit.
3 Poles — protects a three-phase circuit without neutral; fits standard 35mm DIN rail in distribution boards.
Thermal-magnetic trip mechanism — bimetal element trips on sustained overload, instantaneous magnetic trip on short-circuit; two independent protection functions in one compact module.
Manufactured to IS 8828 / IEC 60898-1 (residential) and IEC 60947-2 (industrial) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified where applicable — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised LK30100K product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What load can the LK30100K protect at its rated 10 A?

A: The LK30100K is rated to carry and protect circuits up to 10 A continuously. For motor loads, ensure the full-load current (FLC) of the motor does not exceed this rating. For resistive loads (heaters, lighting), the 10 A rating is used directly. Derate by 20% for ambient temperatures above 40°C.

Q: What happens when the LK30100K trips — how do I identify and reset it?

A: When the LK30100K trips on fault, the handle moves to a midway position (between ON and OFF), distinctly visible from a distance. To reset: (1) identify and rectify the fault, (2) push the handle fully to OFF, (3) then switch back to ON. Never force-reset without investigating the fault cause.

Q: Is the LK30100K suitable for both single-phase and three-phase systems?

A: The LK30100K with 3 Poles can protect three-phase circuits. Each pole simultaneously interrupts one phase — ensuring all phases are de-energised on a fault.

Q: Can the LK30100K be DIN rail mounted in any standard distribution board?

A: Yes. This LK30100K MCB uses the standard 35mm EN 60715 DIN rail and 17.5mm module width, making it compatible with all major brand distribution boards and enclosures. Terminal capacity accommodates both rigid and flexible conductors up to the rated cross-section.
