LTMEV40FM EXPANSION MODULE 115 230VAC Schneider Electric ltmev40fm
Click to enlarge

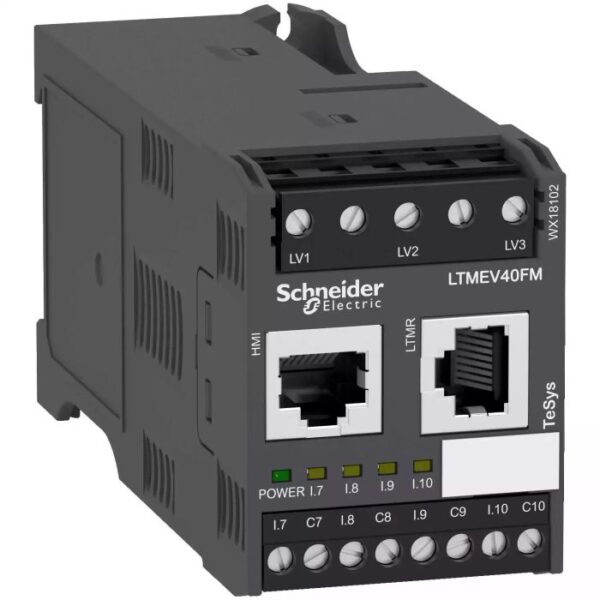

    LTMEV40FM | EXPANSION MODULE 115 230VAC – Schneider Electric

    SKU: LTMEV40FM

    Original price was: ₹41,510.00.Current price is: ₹23,245.60. Excl. GST

    Dispatch By : 3 Weeks

    Dispatch By : 3 Weeks

    13 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    LTMR100EFM CONTROLLER ETHERNET 5 100A 115 230VAC Schneider Electric ltmr100efm

    LTMR100EFM | CONTROLLER ETHERNET 5 100A 115 230VAC – Schneider Electric

    Schneider Electric
    ₹194,185.00 Excl. GST
    Add to basket
    SKU: LTMR100EFM
    LTMR08MFM Controller Modbus 0,4 8A 115 230Vac Schneider Electric ltmr08mfm

    LTMR08MFM | Controller Modbus 0,4 8A 115 230Vac – Schneider Electric

    Schneider Electric
    ₹114,420.00 Excl. GST
    Add to basket
    SKU: LTMR08MFM

      Looking for the LTMEV40FM | EXPANSION MODULE 115 230VAC? This genuine Schneider Electric electrical component from the TeSys range is built for industrial, commercial, and infrastructure applications, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 230V AC, IP20. Order part number LTMEV40FM from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULTMEV40FM
      CategoryElectrical Component
      Main
      RangeTeSys
      Product nameTeSys T
      Device short nameLTME
      Product or component typeExtension module
      Device applicationEquipment monitoring and control
      Range compatibilityTeSys TeSys T LTMR motor controller
      SupplyVia the controller
      Complementary
      [Ui] rated insulation voltage690 V conforming to EN/IEC 60947-1
      690 V conforming to CSA C22.2 No 14
      690 V conforming to UL 508
      [Uimp] rated impulse withstand voltage4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1
      6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1
      Logic input number4
      Input current3.1 mA at 100 V
      7.5 mA at 240 V
      Current state 0 guaranteedLogic input: 0…40 V and 2…15 mA for 25 ms
      Current state 1 guaranteedLogic input: 79…264 V and <= 15 mA for 25 ms
      maximum output switching frequency2 Hz
      maximum operating rate1800 cyc/h
      Contacts type and compositionWithout
      Metering typeImbalance voltage
      Active power P, P1, P2, P3
      Calculated active and reactive energy (+/- W.h, +/- VAR.h)
      Voltage U21, U32, U13, V1, V2, V3
      Reactive power Q, Q1, Q2, Q3
      Frequency
      Power factor
      Measurement accuracy1 % voltage (100…830 V)
      3 % power factor
      5 % active and reactive power
      Overvoltage categoryIII
      Connection pitch5.08 mm
      Connections – terminalsControl circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24…AWG 14) flexible with cable end
      Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24…AWG 14) flexible without cable end
      Control circuit: connector 1 cable(s) 0.25…2.5 mm² (AWG 24…AWG 14) flexible without cable end
      Control circuit: connector 1 cable(s) 0.2…2.5 mm² (AWG 24…AWG 14) solid without cable end
      Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24…AWG 14) flexible with cable end
      Control circuit: connector 2 cable(s) 0.2…1.5 mm² (AWG 24…AWG 14) flexible without cable end
      Control circuit: connector 2 cable(s) 0.5…1.5 mm² (AWG 24…AWG 14) flexible without cable end
      Control circuit: connector 2 cable(s) 0.2…1 mm² (AWG 24…AWG 14) solid without cable end
      Tightening torqueControl circuit: 0.5…0.6 N.m flat screwdriver 3 mm
      Pollution degree3
      Electromagnetic compatibilityElectrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2
      Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4
      Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4
      Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6
      Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5
      Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
      Voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5
      Voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
      Control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
      Width45 mm
      Height61 mm
      Depth120.7 mm
      Product weight0.21 kg
      Compatibility codeLTME
      Environment
      StandardsCSA C22.2 No 14
      IACS E10
      IEC 60947-4-1
      UL 508
      EN 60947-4-1
      Product certificationsLROS (Lloyds register of shipping)
      ATEX
      NOM
      EAC
      RMRoS
      GL
      UL
      DNV
      BV
      RINA
      KERI
      C-Tick
      CSA
      CCC
      ABS
      IP degree of protectionIP20
      Protective treatment12 x 24 hour cycles conforming to EN/IEC 60068-2-30
      48 h conforming to EN/IEC 60070-2-11
      TH conforming to EN/IEC 60068
      Fire resistance650 °C conforming to EN/IEC 60695-2-12
      960 °C conforming to UL 94
      Ambient air temperature for operation-20…60 °C
      Ambient air temperature for storage-40…80 °C
      Operating altitude<= 2000 m without derating
      Mechanical robustnessShocks half sine wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27
      Vibrations mounted on symmetrical rail: 1 Gn, 5…300 Hz conforming to EN/IEC 60068-2-6
      Vibrations plate mounted: 4 Gn, 5…300 Hz conforming to EN/IEC 60068-2-6
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height5.500 cm
      Package 1 Width7.200 cm
      Package 1 Length13.600 cm
      Package 1 Weight202.000 g
      Unit Type of Package 2S02
      Number of Units in Package 220
      Package 2 Height15.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight4.385 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 230V AC operating voltage — compatible with standard LV distribution voltages used in Indian industrial installations.
      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      LTMR08MFMLTMR100EFM
