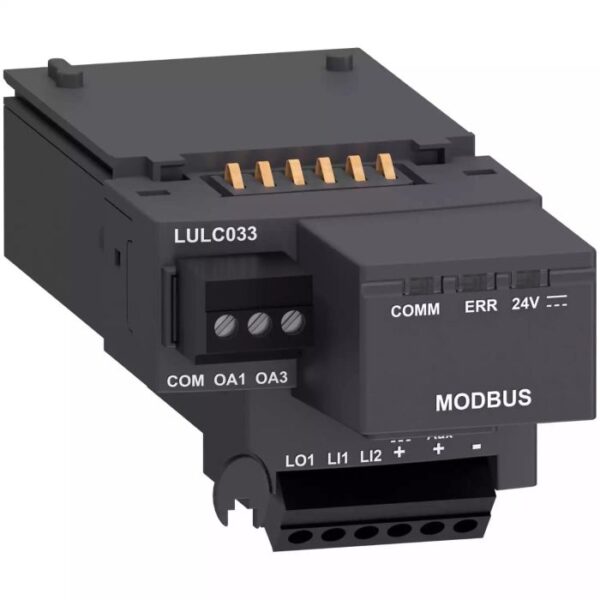

LULC033 | TESYS U MODBUS COMMS MODULE – Schneider Electric

Name: LULC033 | TESYS U MODBUS COMMS MODULE - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LULC033
Price: 25272.80 INR
Availability: BackOrder

SKU: LULC033

Original price was: ₹45,130.00.Current price is: ₹25,272.80. Excl. GST

Dispatch By : 3 Weeks

12 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric LULC033 is a motor starter controller (tesys u) from the TeSys range, engineered for motor control and switching in demanding Indian and international installations. Key ratings include IP20. Buy the LULC033 | TESYS U MODBUS COMMS MODULE online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LULC033
Category	Motor Starter Controller (TeSys U)
Main
Range	TeSys
Device short name	LUL
Product or component type	Communication module
Product compatibility	LUCL LUCC LUCB LUCM LUCA LUCD
Device application	Communication
Range compatibility	TeSys TeSys U LUB non reversing power base TeSys TeSys U LU2B reversing power base
Complementary
main function available	Communication module
Mounting mode	Plug-in
Mounting location	Front side
Physical interface	RS485 multidrop
Bus type	Modbus
Cable connector type	RJ45 front panel
Communication port protocol	Modbus RTU
Addressing	0…31
Transmission rate	19200 bit/s
Return time	30 ms
Number of inputs	2
Logic input	Positive at 24 V DC – 7 mA
Response time	10 ms +/- 30 % change to state 0 10 ms +/- 30 % change to state 1
Input type	Resistive
Number of outputs	2 dedicated to starter-controller coil operation 1
[Us] rated supply voltage	24 V DC
Output current	<= 500 mA
Protection type	GG fuse 1 A
Switching current capacity	0.5 mA at 24 V
Local signalling	3 LEDs front panel
Connection pitch	3.81 mm
Connections – terminals	Screw clamp terminals 1 cable(s) 0.14…1 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.14…1 mm²rigid without cable end Screw clamp terminals 1 cable(s) 0.25…0.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.25…1 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.14…0.5 mm²rigid without cable end Screw clamp terminals 2 cable(s) 0.14…0.75 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.25…0.34 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end
Associated cable type	AWG 26…AWG 16
Tightening torque	0.2…0.25 N.m2.5 mm
Product weight	0.08 kg
Environment
Ambient air temperature for operation	-25…55 °C
IP degree of protection	IP20 conforming to IEC 60529
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.9 cm
Package 1 Width	11.3 cm
Package 1 Length	4.9 cm
Package 1 Weight	85.0 g
Unit Type of Package 2	S02
Number of Units in Package 2	35
Package 2 Height	15.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	3.293 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
