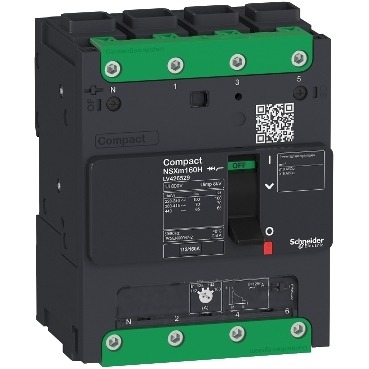

LV426315 | Breaker NSXm 36kA TM63D 4P/3T Elink - Schneider Electric - Image 1
Click to enlarge

    LV426315 | Breaker NSXm 36kA TM63D 4P/3T Elink – Schneider Electric

    SKU: LV426315

    $490.60 Excl. GST

    In stock

    In stock

    15 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    -46%

    LV426842 | COIL MX AC 48 V 50/60 HZ – Schneider Electric

    Schneider Electric
    Original price was: $84.67.Current price is: $45.72. Excl. GST
    Add to basket
    SKU: LV426842
    -46%

    LV426804 | COIL MN AC 208 240V 50 60 HZ – Schneider Electric

    Schneider Electric
    Original price was: $71.79.Current price is: $38.77. Excl. GST
    Add to basket
    SKU: LV426804
    -46%

    LV426806 | COIL MN AC 380 – Schneider Electric

    Schneider Electric
    Original price was: $71.79.Current price is: $38.77. Excl. GST
    Add to basket
    SKU: LV426806
    -46%

    LV426950 | AUXILIARY CONTACT OF or SD NSXm & PP-B – Schneider Electric

    Schneider Electric
    Original price was: $25.48.Current price is: $13.76. Excl. GST
    Add to basket
    SKU: LV426950
    -46%

    LV426846 | COIL MX AC 380-415 V 50 HZ – Schneider Electric

    Schneider Electric
    Original price was: $55.07.Current price is: $29.74. Excl. GST
    Add to basket
    SKU: LV426846
    -46%

    LV426803 | COIL MN AC 110 – Schneider Electric

    Schneider Electric
    Original price was: $71.79.Current price is: $38.77. Excl. GST
    Add to basket
    SKU: LV426803

    LV426920 | Phase barrier IEC/UL Dis and VIGI and GV – Schneider Electric

    Schneider Electric
    $9.32 Excl. GST
    Add to basket
    SKU: LV426920
    -46%

    LV426971 | EverLink terninal tap-off for 4P COMPACT – Schneider Electric

    Schneider Electric
    Original price was: $29.32.Current price is: $15.83. Excl. GST
    Add to basket
    SKU: LV426971

      The Schneider Electric LV426315 is an electrical component from the ComPact range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include 63 A at 40 °C, 690 V AC 50/60 Hz, 4P. Buy the LV426315 | Breaker NSXm 36kA TM63D 4P/3T Elink online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULV426315
      CategoryElectrical Component
      Main
      RangeComPact
      Product nameComPact NSXm
      Range of productComPact NSXm
      Device short nameNSXm 63F
      Product or component typeCircuit breaker
      Device applicationDistribution
      Protection
      Number of poles4P
      Protected poles description3D
      Neutral positionLeft
      [In] rated current63 A at 40 °C
      [Ue] rated operational voltage690 V AC 50/60 Hz
      Network typeAC
      Network frequency50/60 Hz
      Suitability for isolationYes conforming to EN/IEC 60947-2
      Utilisation categoryCategory A
      [Icu] rated ultimate short-circuit breaking capacity85 kA Icu at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
      36 kA Icu at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
      35 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
      15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
      10 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
      Performance levelF 36 kA 415 V AC
      Trip unit nameTM-D
      Trip unit technologyThermal-magnetic
      Trip unit protection functionsLI
      Control typeToggle
      Circuit breaker mounting modeBy screws
      Clip-on
      Complementary
      [Ui] rated insulation voltage800 V AC 50/60 Hz
      [Uimp] rated impulse withstand voltage8 kV
      [Ics] rated service short-circuit breaking capacity10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
      85 kA at 220…240 V AC 50/60 Hz conforming to IEC 60947-2
      36 kA at 380…415 V AC 50/60 Hz conforming to IEC 60947-2
      30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
      10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
      Mechanical durability20000 cycles
      Electrical durability10000 cycles at 440 V In
      20000 cycles at 440 V In/2
      5000 cycles at 690 V In
      10000 cycles at 690 V In/2
      Mounting supportPlate
      DIN rail
      Connection terminals1 Everlink lug wire size 2.5…95 mm², rigid or stranded aluminium/copper
      1 Everlink lug wire size 2.5…70 mm², flexible copper
      Connection pitch35 mm with spreaders
      27 mm without spreaders
      9 mm pitches12 module
      Protection typeL : for overload protection (thermal)
      I : for short-circuit protection (magnetic)
      Trip unit rating63 A at 40 °C
      Long-time pick-up adjustment type Ir (thermal protection)Adjustable
      [Ir] long-time protection pick-up adjustment range0.7…1 x In
      Long-time protection delay adjustment type trFixed
      [Im] magnetic protection pick-up range800 A
      Earth-leakage protectionWithout
      Number of slots for electrical auxiliaries1 slot(s) for auxiliary switch OF
      1 slot(s) for alarm switch SD
      1 slot(s) for voltage release MN or MX
      Width (W)108 mm
      Height (H)137 mm
      Depth (D)80 mm
      Product weight1.42 kg
      ColourGrey (RAL 7016)
      Environment
      StandardsEN/IEC 60947
      Product certificationsCCC
      EAC
      Marine
      Pollution degree3 conforming to IEC 60664-1
      IP degree of protectionIP40 conforming to IEC 60529
      IK degree of protectionIK07 conforming to IEC 62262
      Ambient air temperature for operation-25…70 °C
      Ambient air temperature for storage-50…85 °C
      Relative humidity0…95 %
      Operating altitude0…2000 m without derating
      2000…5000 m with derating
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height12.0 cm
      Package 1 Width12.0 cm
      Package 1 Length21.1 cm
      Package 1 Weight1.6 kg
      Unit Type of Package 2S03
      Number of Units in Package 26
      Package 2 Height30.0 cm
      Package 2 Width30.0 cm
      Package 2 Length40.0 cm
      Package 2 Weight10.19 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • 36 kA short-circuit withstand or breaking capacity — protects the installation at high fault current levels.
      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      LV426913LV426971LV426920LV426950LV426804LV426844LV426802LV426842LV426806LV426846LV426803LV426843

      ❓ Frequently Asked Questions

      Q: What does the 36 kA breaking capacity on the LV426315 mean in practice?

      A: Breaking capacity (36 kA) is the maximum prospective short-circuit current the LV426315 can safely interrupt without damage. Before installing, verify that the prospective fault level at the installation point does not exceed 36 kA — this is checked using a fault level calculation or from the upstream transformer impedance data. Installing a breaker with insufficient breaking capacity is a serious safety violation.

      Q: After a short-circuit trip on the LV426315, can it be reset and reused immediately?

      A: After a short-circuit trip, do not immediately reset the LV426315. First, identify and clear the fault. Then inspect the device — if there is visible arc damage, melted insulation, or the handle does not reset smoothly, the device must be replaced. The 36 kA rated breaking capacity is not unlimited — it is the maximum fault current the device can interrupt safely for a defined number of operations (typically 1–3 at full Icu rating). After any significant fault, factor replacement into your maintenance budget.
