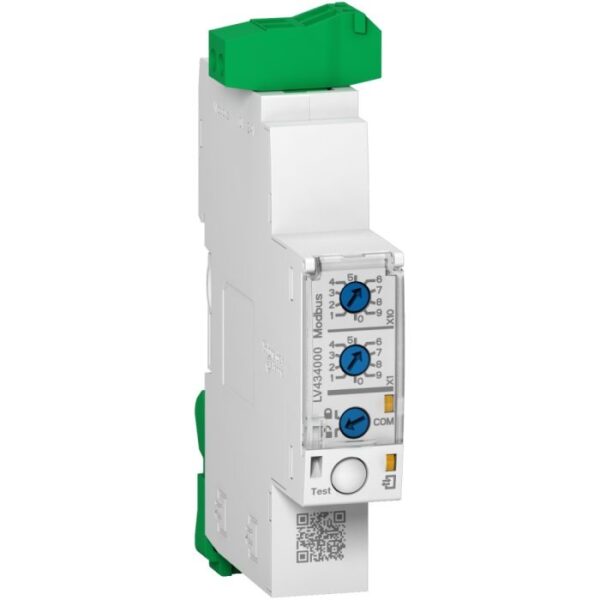

LV434000 | Enerlin’X IFM – Modbus-SL Interface for One Circuit Breaker – Schneider Electric

SKU: LV434000

Original price was: ₹21,160.00.Current price is: ₹11,214.80. Excl. GST

Dispatch By : 2 Weeks

Dispatch By : 2 Weeks

My Electric Support Online · Mon–Sat 9am–6pm IST
Product enquiry
Order on WhatsApp SKU: LV434000

Same-day dispatch · GST invoice available

14 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order
Global DeliveryShipped pan-India and to export markets.
On-Time DeliveryPacked and dispatched on schedule.
100% OriginalFrom brand-authorised channels only.
GST InvoiceCompliant, ITC-ready tax invoice.
Secure PaymentEncrypted, trusted payment gateways.
Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

Placeholder
-52%

C100N320FM | NS1000N 50kA 3P 1000A FXD Man. 2.0 – Schneider Electric

Original price was: ₹188,150.00.Current price is: ₹90,312.00. Excl. GST
Add to basket
SKU: C100N320FM
Placeholder
-52%

C125N320FM | NS1250N 50kA 3P 1250A FXD Man. 2.0 – Schneider Electric

Original price was: ₹190,300.00.Current price is: ₹91,344.00. Excl. GST
Add to basket
SKU: C125N320FM
C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
-50%

C63N32D630 | Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A – Schneider Electric

Schneider Electric
Original price was: ₹112,780.00.Current price is: ₹56,390.00. Excl. GST
Add to basket
SKU: C63N32D630
Placeholder
-52%

C160N320FM | NS1600N 50kA 3P 1600A FXD Man. 2.0 – Schneider Electric

Original price was: ₹216,110.00.Current price is: ₹103,732.80. Excl. GST
Add to basket
SKU: C160N320FM
Placeholder
-46%

LV429375 | SEALING ACCESSORIES – Schneider Electric

Original price was: ₹1,400.00.Current price is: ₹756.00. Excl. GST
Add to basket
SKU: LV429375
C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
-50%

C40F32D400 | Circuit breaker, ComPacT NSX400F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 400A – Schneider Electric

Schneider Electric
Original price was: ₹104,990.00.Current price is: ₹52,495.00. Excl. GST
Add to basket
SKU: C40F32D400
C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
-50%

C63F32D630 | Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A – Schneider Electric

Schneider Electric
Original price was: ₹111,480.00.Current price is: ₹55,740.00. Excl. GST
Add to basket
SKU: C63F32D630
C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
-50%

C25N3TM250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

Schneider Electric
Original price was: ₹63,470.00.Current price is: ₹31,735.00. Excl. GST
Add to basket
SKU: C25N3TM250
-46%

TRV00217 | STACKING CONNECTORS FOR IFM (10) – Schneider Electric

Schneider Electric
Original price was: ₹8,940.00.Current price is: ₹4,827.60. Excl. GST
Add to basket
SKU: TRV00217
Placeholder
-52%

C080N320FM | NS800N 50kA 3P 800A FXD Man. 2.0 – Schneider Electric

Original price was: ₹188,230.00.Current price is: ₹90,350.40. Excl. GST
Add to basket
SKU: C080N320FM
C25N32D250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w32d25
-52%

C25N32D250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

Schneider Electric
Original price was: ₹80,680.00.Current price is: ₹38,726.40. Excl. GST
Add to basket
SKU: C25N32D250
C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
-50%

C40N32D400 | Circuit breaker, ComPacT NSX400N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 400A – Schneider Electric

Schneider Electric
Original price was: ₹108,790.00.Current price is: ₹54,395.00. Excl. GST
Add to basket
SKU: C40N32D400
Placeholder
-52%

C100N420FM | NS1000N 50kA 4P 1000A FXD Man. 2.0 – Schneider Electric

Original price was: ₹227,770.00.Current price is: ₹109,329.60. Excl. GST
Add to basket
SKU: C100N420FM
Placeholder
-52%

C080N420FM | NS800N 50kA 4P 800A FXD Man. 2.0 – Schneider Electric

Original price was: ₹227,850.00.Current price is: ₹109,368.00. Excl. GST
Add to basket
SKU: C080N420FM
-47%

TRV00880 | 10 ULP LINE TERMINATION – Schneider Electric

Schneider Electric
Original price was: ₹3,750.00.Current price is: ₹1,987.50. Excl. GST
Add to basket
SKU: TRV00880
C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
-50%

C25F3TM250 | Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

Schneider Electric
Original price was: ₹59,440.00.Current price is: ₹29,720.00. Excl. GST
Add to basket
SKU: C25F3TM250
C63H32D630 NSX630H 70kA AC 3P3D 630A 2.3 Schneider Electric c63h32d630
-52%

C63H32D630 | NSX630H 70kA AC 3P3D 630A 2.3 – Schneider Electric

Schneider Electric
Original price was: ₹125,640.00.Current price is: ₹60,307.20. Excl. GST
Add to basket
SKU: C63H32D630
Placeholder
-52%

C125N420FM | NS1250N 50kA 4P 1250A FXD Man. 2.0 – Schneider Electric

Original price was: ₹248,700.00.Current price is: ₹119,376.00. Excl. GST
Add to basket
SKU: C125N420FM

    The Schneider Electric LV434000 is an electrical component from the ComPact NSX100…250 range, engineered for industrial, commercial, and infrastructure applications in demanding Indian and international installations. Key ratings include Connectors: IP20. Buy the LV434000 | Enerlin’X IFM – Modbus-SL Interface for One Circuit Breaker online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

    📋 Technical Specifications

    Product
    BrandSchneider Electric
    Part Number / SKULV434000
    CategoryElectrical Component
    Main
    Range of productComPact NSX100…250
    ComPact NSX400…630
    ComPact NS630b…1600
    ComPact NS1600b…3200
    Device short nameIFM
    Product or component typeInterface module
    Range compatibilityMasterpact MasterPact MTZ
    Masterpact MasterPact NT
    Masterpact MasterPact NW
    ComPact ComPact NSX
    ComPact ComPact NS630b…1600
    ComPact ComPact NS1600b…3200
    PowerPact PowerPact J
    PowerPact PowerPact L
    PowerPact PowerPact H
    PowerPact PowerPact P
    PowerPact PowerPact R
    Complementary
    Communication network typeUniversal Logic Plug on 2-port RJ45
    Modbus, Modbus Serial line slave9.6…38.4 kbauds on 1 RJ45
    Mounting modeBy clips
    Mounting support35 mm DIN rail
    Accuracy classClass 2 power supply
    Input voltage24 V DC – 20…10 %
    Output voltage24 V DC
    Output current3 A
    Current consumption30 mA 24 V DC room temperature
    Power consumption in W1.635 W
    Memory typeEEPROM data storage
    Connections – terminalsRJ45 connector
    Screw type terminals
    Product certificationsEAC
    cULus
    CE
    FCC
    StandardsCISPR 22
    UL 61010
    UL 60950
    CISPR 24
    CISPR 11
    IEC 60950
    IACS E10
    Height109 mm
    Width18 mm
    Depth73 mm
    Product weight120 g
    Environment
    IP degree of protectionConnectors: IP20
    Other parts: IP30
    Relative humidity5…85 % at 55 °C without condensation
    Ambient air temperature for storage-40…85 °C
    Ambient air temperature for operation-20…70 °C
    Pollution degree3
    Flame retardanceV0 conforming to UL 94
    Shock resistance+/- 15 gn 11 ms conforming to EN/IEC 60068-2-27
    Vibration frequency5…8.4 Hz conforming to EN/IEC 60068-2
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height4.500 cm
    Package 1 Width8.000 cm
    Package 1 Length11.500 cm
    Package 1 Weight117.000 g
    Unit Type of Package 2S03
    Number of Units in Package 254
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight6.772 kg
    Contractual warranty
    Warranty (in months)18

    ⚡ Key Features

    • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
    • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
    • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
    • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
    • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.
