LV434002 EnerlinX Ife Switchboard Server, Ethernet Interface And Gateway Schneider Electric lv434002 da 1500x1500 1
Click to enlarge

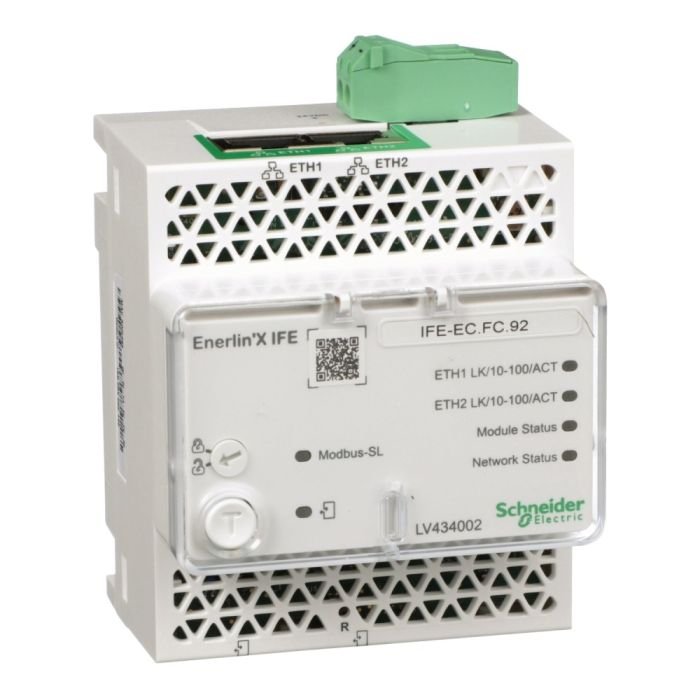

    LV434002 | Enerlin’X Ife Switchboard Server, Ethernet Interface And Gateway – Schneider Electric

    SKU: LV434002

    Original price was: ₹92,380.00.Current price is: ₹48,961.40. Excl. GST

    Dispatch By : 4 Weeks

    Dispatch By : 4 Weeks

    10 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Additional Addons/Accessories

    -47%

    TRV00880 | 10 ULP LINE TERMINATION – Schneider Electric

    Schneider Electric
    Original price was: ₹3,750.00.Current price is: ₹1,987.50. Excl. GST
    Add to basket
    SKU: TRV00880
    Placeholder
    -52%

    C100N320FM | NS1000N 50kA 3P 1000A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹188,150.00.Current price is: ₹90,312.00. Excl. GST
    Add to basket
    SKU: C100N320FM
    C25N32D250 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, MicroLogic 2.2 trip unit 250A Schneider Electric c25w32d25
    -52%

    C25N32D250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹80,680.00.Current price is: ₹38,726.40. Excl. GST
    Add to basket
    SKU: C25N32D250
    C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
    -50%

    C25F3TM250 | Circuit breaker, ComPacT NSX250F, 36kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹59,440.00.Current price is: ₹29,720.00. Excl. GST
    Add to basket
    SKU: C25F3TM250
    C25N3TM200 Circuit breaker, ComPacT NSX250N, 50kA 415VAC, 3 poles, TMD trip unit 200A Schneider Electric c25w3tm250 image 150
    -50%

    C25N3TM250 | Circuit breaker, ComPacT NSX250N, 50kA/415VAC, 3 poles, TMD trip unit 250A – Schneider Electric

    Schneider Electric
    Original price was: ₹63,470.00.Current price is: ₹31,735.00. Excl. GST
    Add to basket
    SKU: C25N3TM250
    Placeholder
    -46%

    LV429375 | SEALING ACCESSORIES – Schneider Electric

    Original price was: ₹1,400.00.Current price is: ₹756.00. Excl. GST
    Add to basket
    SKU: LV429375
    C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
    -50%

    C63N32D630 | Circuit breaker, ComPacT NSX630N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A – Schneider Electric

    Schneider Electric
    Original price was: ₹112,780.00.Current price is: ₹56,390.00. Excl. GST
    Add to basket
    SKU: C63N32D630
    C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
    -50%

    C40N32D400 | Circuit breaker, ComPacT NSX400N, 50kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 400A – Schneider Electric

    Schneider Electric
    Original price was: ₹108,790.00.Current price is: ₹54,395.00. Excl. GST
    Add to basket
    SKU: C40N32D400
    Placeholder
    -52%

    C125N320FM | NS1250N 50kA 3P 1250A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹190,300.00.Current price is: ₹91,344.00. Excl. GST
    Add to basket
    SKU: C125N320FM
    C63H32D630 NSX630H 70kA AC 3P3D 630A 2.3 Schneider Electric c63h32d630
    -52%

    C63H32D630 | NSX630H 70kA AC 3P3D 630A 2.3 – Schneider Electric

    Schneider Electric
    Original price was: ₹125,640.00.Current price is: ₹60,307.20. Excl. GST
    Add to basket
    SKU: C63H32D630
    Placeholder
    -52%

    C080N420FM | NS800N 50kA 4P 800A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹227,850.00.Current price is: ₹109,368.00. Excl. GST
    Add to basket
    SKU: C080N420FM
    -46%

    TRV00217 | STACKING CONNECTORS FOR IFM (10) – Schneider Electric

    Schneider Electric
    Original price was: ₹8,940.00.Current price is: ₹4,827.60. Excl. GST
    Add to basket
    SKU: TRV00217
    Placeholder
    -52%

    C160N320FM | NS1600N 50kA 3P 1600A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹216,110.00.Current price is: ₹103,732.80. Excl. GST
    Add to basket
    SKU: C160N320FM
    C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
    -50%

    C40F32D400 | Circuit breaker, ComPacT NSX400F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 400A – Schneider Electric

    Schneider Electric
    Original price was: ₹104,990.00.Current price is: ₹52,495.00. Excl. GST
    Add to basket
    SKU: C40F32D400
    Placeholder
    -52%

    C080N320FM | NS800N 50kA 3P 800A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹188,230.00.Current price is: ₹90,350.40. Excl. GST
    Add to basket
    SKU: C080N320FM
    C40F32D400 Circuit breaker, ComPacT NSX400F, 36kA 415VAC, 3 poles, MicroLogic 2.3 trip unit 400A Schneider Electric c63w32d63
    -50%

    C63F32D630 | Circuit breaker, ComPacT NSX630F, 36kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A – Schneider Electric

    Schneider Electric
    Original price was: ₹111,480.00.Current price is: ₹55,740.00. Excl. GST
    Add to basket
    SKU: C63F32D630
    Placeholder
    -52%

    C100N420FM | NS1000N 50kA 4P 1000A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹227,770.00.Current price is: ₹109,329.60. Excl. GST
    Add to basket
    SKU: C100N420FM
    Placeholder
    -52%

    C125N420FM | NS1250N 50kA 4P 1250A FXD Man. 2.0 – Schneider Electric

    Original price was: ₹248,700.00.Current price is: ₹119,376.00. Excl. GST
    Add to basket
    SKU: C125N420FM

      Sourced through authorised channels, the Schneider Electric LV434002 electrical component from the ComPact NSX100…250 range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include Connectors: IP2X. myelectric.in stocks the LV434002 | Enerlin’X Ife Switchboard Server, Ethernet Interface And Gateway for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

      📋 Technical Specifications

      Product
      BrandSchneider Electric
      Part Number / SKULV434002
      CategoryElectrical Component
      Main
      Range of productComPact NSX100…250
      ComPact NSX400…630
      ComPact NS630b…1600
      ComPact NS1600b…3200
      Device short nameIFE
      Product or component typeInterface module
      Range compatibilityMasterpact MasterPact MTZ
      Masterpact MasterPact NT
      Masterpact MasterPact NW
      ComPact ComPact NSX
      ComPact ComPact NS630b…1600
      ComPact ComPact NS1600b…3200
      PowerPact PowerPact J
      PowerPact PowerPact L
      PowerPact PowerPact H
      PowerPact PowerPact P
      PowerPact PowerPact R
      Complementary
      Communication network typeEthernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP10/100 Mbit/s on 2-port RJ45
      Universal Logic Plug on 2-port RJ45
      Modbus TCP/IP, Modbus TCP master9.6…38.4 kbauds
      Communication gatewayEthernet TCP/IP to Modbus
      Web serverEmbedded HTTP server
      Mounting modeBy clips
      Mounting support35 mm DIN rail
      Control typeBy software
      [Us] rated supply voltage24 V DC – 20…10 %
      Maximum supply current3 A
      Current consumption120 mA
      Connections – terminalsRJ45 connector
      Product certificationsCE
      GOST
      cULus
      FCC
      StandardsIEC 60947-6-2
      UL 508
      UL 60950
      IEC 60950
      Height105 mm
      Width72 mm
      Depth71 mm
      Product weight182.5 g
      Accessory / separate part categorySpare part for Compact NS630b…1600
      Spare part for Compact NS1600b…3200
      Environment
      IP degree of protectionConnectors: IP2X
      Other parts: IP3x
      Front panel: IP4X
      Relative humidity5…85 %
      Ambient air temperature for storage-40…85 °C
      Ambient air temperature for operation-20…70 °C
      Pollution degree3
      Flame retardanceV0 conforming to UL 94
      V0 conforming to IEC 60947-1
      V0 conforming to IEC 60695-2-11
      Shock resistance1000 m/s²
      Vibration frequency5…8.4 Hz
      Packing Units
      Unit Type of Package 1PCE
      Number of Units in Package 11
      Package 1 Height7.100 cm
      Package 1 Width7.200 cm
      Package 1 Length10.500 cm
      Package 1 Weight257.700 g
      Unit Type of Package 2S03
      Number of Units in Package 224
      Package 2 Height30.000 cm
      Package 2 Width30.000 cm
      Package 2 Length40.000 cm
      Package 2 Weight6.609 kg
      Contractual warranty
      Warranty (in months)18

      ⚡ Key Features

      • Manufactured to IS/IEC 60947, IS 8828 (MCBs), IS 13947, IEC 61439 (DBs) — complies with Indian BIS and IEC international safety standards.
      • BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
      • Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
      • GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
      • Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

      🔗 Compatible Products & Accessories

      The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

      TRV00217TRV00880LV429375C40N32D400C63N32D630C40F32D400C63F32D630C25N3TM250C25F3TM250C25N32D250C63H32D630C080N320FMC100N320FMC125N320FMC160N320FMC080N420FMC100N420FMC125N420FM
