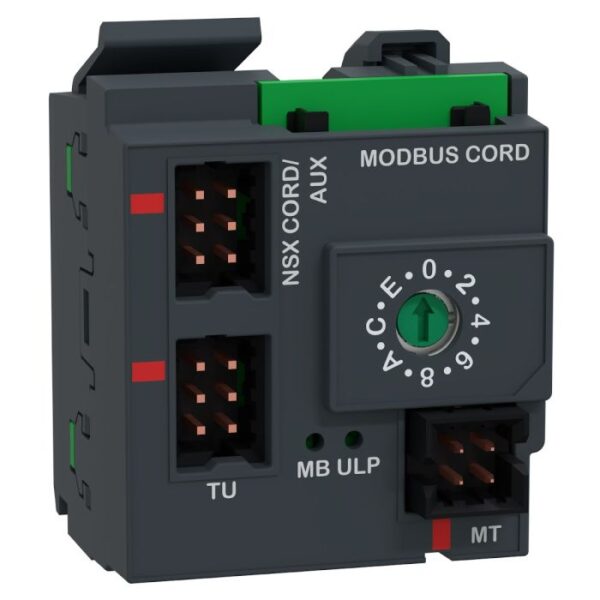

LV434220 | ComPacT NSX BSCM Modbus SL ULP – Schneider Electric

Name: LV434220 | ComPacT NSX BSCM Modbus SL ULP - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LV434220
Price: 7160.40 INR
Availability: BackOrder

SKU: LV434220

Original price was: ₹13,260.00.Current price is: ₹7,160.40. Excl. GST

Dispatch By : 1 Weeks

11 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-46%

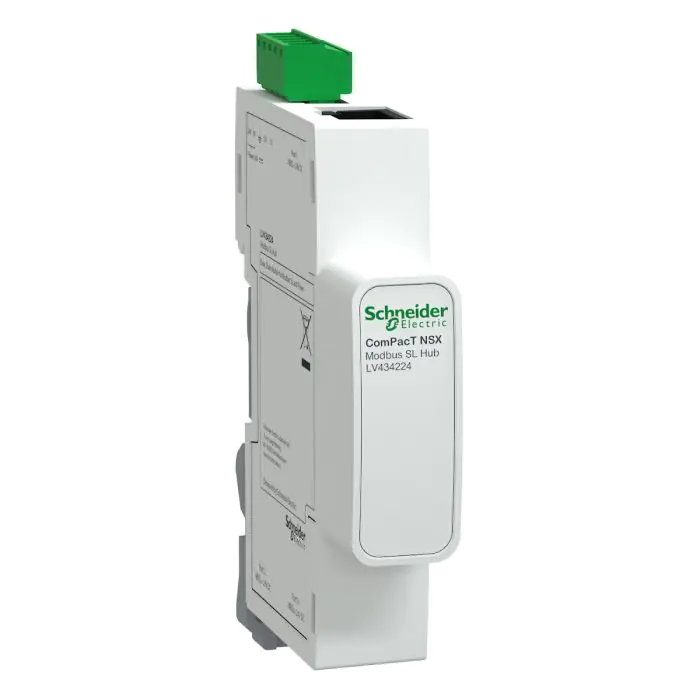

LV434224 | Modbus SL Hub – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LV434224

-46%

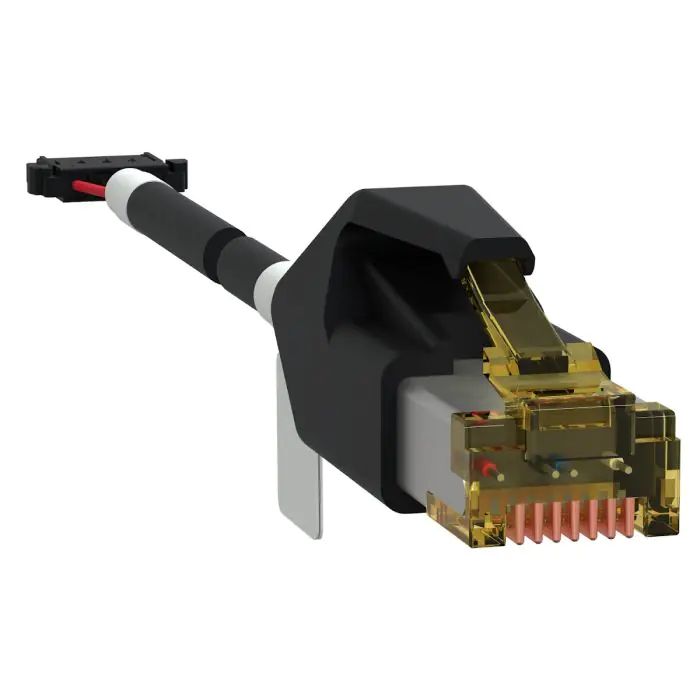

LV434222 | ComPacT NSX BSCM Modbus SL Cord 1.3m – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LV434222

-46%

LV434223 | ComPacT NSX BSCM Modbus SL Cord 3m – Schneider Electric

All Products

Schneider Electric

Excl. GST

Add to basket

SKU: LV434223

Looking for the LV434220 | ComPacT NSX BSCM Modbus SL ULP? This genuine Schneider Electric mccb from the ComPacT NSX100…250 range is built for reliable circuit protection and isolation, combining proven reliability with full compliance to applicable IEC/IS standards. Order part number LV434220 from myelectric.in — a trusted Schneider Electric supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LV434220
Category	MCCB
Main
Range of product	ComPacT NSX100…250 ComPacT NSX400…630
Device short name	BSCM MBSL/ULP
Product or component type	Communication module
Device application	Communication
Range compatibility	ComPacT NSX100 ComPacT NSX160 ComPacT NSX250 ComPacT NSX400 ComPacT NSX630
Function of module	Control circuit breaker Get breaking status Gateway for Modbus-SL connected devices
Complementary
Communication network type	Modbus, Modbus Serial line slave9.6…38.4 kbauds
Mounting mode	By clips
Accuracy class	Class 2 power supply
[Us] rated supply voltage	24 V DC
Input voltage	24 V DC +/- 10 %
Current consumption	40 mA 24 V DC room temperature
Power consumption in W	0.96 W
Connections – terminals	Plug-in connector
Product certifications	UL
Standards	CISPR 32 IEC 61000-4-3 IEC 61000-4-6 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-2
Height	34 mm
Width	28 mm
Depth	30 mm
Product weight	14 g
Environment
Relative humidity	5…85 % at 55 °C without condensation
Ambient air temperature for storage	-40…85 °C
Ambient air temperature for operation	-25…70 °C
Pollution degree	3
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	4.500 cm
Package 1 Width	4.400 cm
Package 1 Length	6.200 cm
Package 1 Weight	32.000 g
Unit Type of Package 2	S02
Number of Units in Package 2	90
Package 2 Height	15.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	3.392 kg
Unit Type of Package 3	P06
Number of Units in Package 3	720
Package 3 Height	45.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	35.000 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Thermal-magnetic trip unit — factory-calibrated overload and short-circuit protection; suitable for standard feeder circuits without electronic adjustment.
CompacT NSX form factor — 70mm wide per pole; designed for high-density LV switchboards with up to 3 units per standard 250mm busbar bay.
Rotary handle with padlocking points — LOTO compliant; handle locks in OFF position with up to 3 padlocks, preventing accidental energisation during maintenance.
Manufactured to IEC 60947-2 / IS 13947-2 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

🔗 Compatible Products & Accessories

The following genuine accessories and compatible devices are designed to work with this product. Contact myelectric.in for pricing and availability:

LV434222LV434223C10R36E100C10R46E100C25R36E250C25R46E250LV434224

❓ Frequently Asked Questions

Q: Can the LV434220 be motorised for remote switching and automation?

A: Yes. Schneider Electric MCCBs in this series support rotary handle adaptation and motorised operating mechanisms as accessories, enabling remote ON/OFF switching via PLC, SCADA, or BMS. Motorised MCCBs are used for automatic load management and remote trip in automated distribution systems.

Q: What trip unit type does the LV434220 use — thermal-magnetic or electronic?

A: Refer to the product label or datasheet for the exact trip unit specification. The trip unit determines adjustability and protection accuracy.

Q: Is the LV434220 suitable for use as a motor branch circuit protector (Type E coordination)?

A: MCCBs used for motor branch circuit protection must be coordinated with the downstream overload relay for Type 2 coordination (no damage to contactor or relay on short-circuit). Verify the Schneider Electric coordination table for the specific contactor-overload-MCCB combination to confirm Type 1 or Type 2 coordination is achieved.

Q: Which Schneider Electric accessories are compatible with the LV434220?

A: The Schneider Electric LV434220 series supports snap-on accessories including auxiliary contacts (OF), alarm contacts (SD), shunt trip coils (MX), undervoltage releases (MN), and comb busbars. Accessories are series-specific — always verify compatibility using the Schneider Electric product catalogue before ordering. myelectric.in can advise on the correct accessory part numbers for the LV434220.

Q: What is the difference between an MCCB and a standard MCB — and why use the LV434220?

A: A standard MCB protects against overload and short-circuit only. An MCCB handles much higher fault levels and larger current ratings — MCCBs are rated up to 1600A with 25–200kA breaking capacity, compared to MCBs which are capped at typically 125A and 10kA. Choose the LV434220 when the application specifically requires mccb characteristics.
