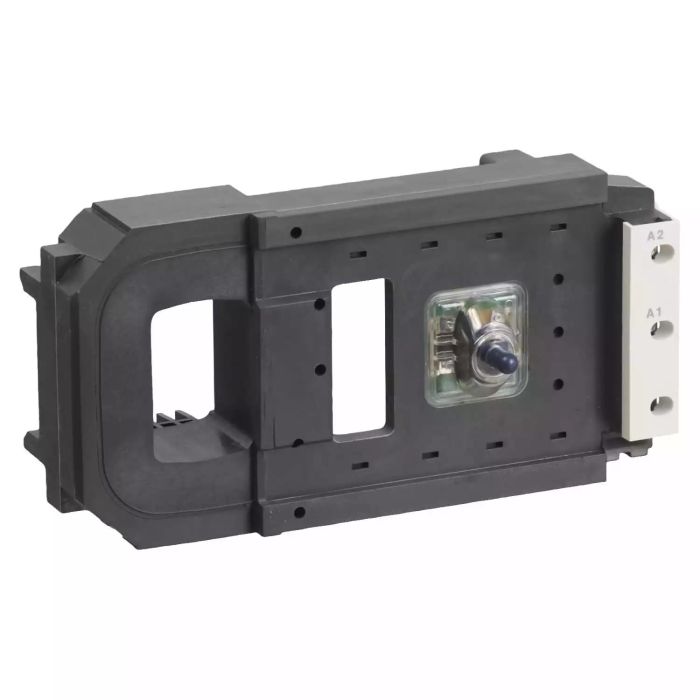

LX9FL931 | COIL LX9F 220 TO 240 V AC AT 40 AND400HZ – Schneider Electric

Name: LX9FL931 | COIL LX9F 220 TO 240 V AC AT 40 AND400HZ - Schneider Electric - myelectric.in
Brand: Schneider Electric
SKU: LX9FL931
Price: 47738.21 INR
Availability: BackOrder

SKU: LX9FL931

Original price was: ₹91,365.00.Current price is: ₹47,738.21. Excl. GST

Dispatch By : 15 Weeks

20 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

The Schneider Electric LX9FL931 is a contactor spare part from the TeSys range, engineered for motor control and switching in demanding Indian and international installations. Key ratings include 240V AC. Buy the LX9FL931 | COIL LX9F 220 TO 240 V AC AT 40 AND400HZ online at myelectric.in with GST invoice, genuine-product assurance, and fast delivery across India — bulk and worldwide export enquiries welcome.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LX9FL931
Category	Contactor Spare Part
Main
Range	TeSys
Product or component type	Specific contactor coil
Device short name	LX9FL
Range compatibility	TeSys TeSys F LC1F contactor TeSys TeSys F DR2S resistor
Product compatibility	DR2SC LC1F630
Control circuit type	AC at 40…400 Hz low consumption DC low consumption
[Uc] control circuit voltage	220…240 V DC
Inductance of closed circuit	3.6 H
Average resistance	64.5 Ohm inrush at 20 °C 518 Ohm holding at 20 °C
Operating time	60 ms opening 20 ms closing
Mechanical durability	5 Mcycles
Maximum operating rate	1800 cyc/h 70 °C
Complementary
Coil technology	Without built-in suppressor module
Control circuit voltage limits	Operational: 0.85…1.1 Uc (at 55 °C) Drop-out: 0.3…0.5 Uc (at 55 °C)
Inrush power in W	733 W (at 20 °C)
Hold-in power consumption in W	48 W at 20 °C
Heat dissipation	22.8…27.8 W
Environment
Ambient air temperature for operation	-5…55 °C
Product weight	1.45 kg
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.3 cm
Package 1 Width	11.5 cm
Package 1 Length	22.6 cm
Package 1 Weight	1.478 kg
Unit Type of Package 2	S03
Number of Units in Package 2	6
Package 2 Height	30.0 cm
Package 2 Width	30.0 cm
Package 2 Length	40.0 cm
Package 2 Weight	9.305 kg
Contractual warranty
Warranty (in months)	18

⚡ Key Features

Genuine Schneider Electric OEM accessory — manufactured to the same specification and tested to the same standards as the parent device; ensures mechanical and electrical compatibility that third-party alternatives cannot guarantee.
Replacement contactor coil rated 240V AC — restores the original contactor to service at a fraction of the cost of a complete replacement.
Exact-fit replacement — same electrical and mechanical specification as the factory-fitted coil; no recalibration or adjustment of the contactor required after fitting.
Direct clip-on or screw-mount to parent device — fits without panel modification or additional wiring between the accessory and main device; field-retrofittable.
Manufactured to IEC 60947 (tested as part of the parent device certification) — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE marked, RoHS compliant — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Schneider Electric product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: The LX9FL931 has a coil voltage of 240V AC — what control supply is needed?

A: This Schneider Electric device requires a 240V AC control supply connected to the coil terminals (A1 and A2). For AC coils, ensure the control circuit voltage is stable — voltage drops below 85% of rated coil voltage can cause chatter and coil overheating. Always fit a surge suppressor across the coil when switching with a PLC or solid-state relay.

Q: How do I know the LX9FL931 replacement coil matches my contactor?

A: Match three things: (1) the contactor series and frame size stated for the LX9FL931, (2) the coil voltage — the replacement must equal the control circuit voltage exactly, and (3) AC or DC supply type. Fitting a coil of the wrong voltage causes failure to pull in (too low) or coil burnout (too high). The original coil’s voltage is printed on its face — verify before ordering.

Q: What causes a contactor coil to fail and need replacement like the LX9FL931?

A: The most common causes are: sustained undervoltage (coil hums and overheats while failing to seal the magnetic circuit), overvoltage, voltage spikes from nearby switching inductive loads, dust or rust on the magnet faces preventing full closure (coil draws inrush current continuously), and simple ageing of the insulation. If coils fail repeatedly, fit a surge suppressor and check the control supply voltage stability before fitting the new coil.
