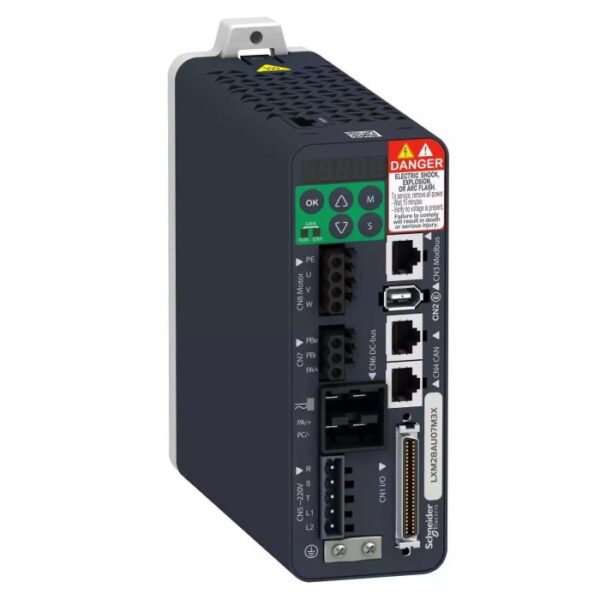

Lexium28 CAN IO Drive 1/3PH 230V 400W (LXM28AU04M3X) – Schneider Electric
Product Overview
The Lexium28 CAN IO Drive from Schneider Electric is a high-performance servo drive designed for industrial automation applications. With its compact design and advanced features, this 400W drive offers precise motion control for demanding applications.
Key Features
- Model: LXM28AU04M3X
- Power: 400W
- Input Voltage: 1/3 Phase 230V AC
- Communication: CANopen interface
- I/O Configuration: Integrated digital inputs/outputs
- Compact Design: Space-saving for panel installation
- Advanced Control: Supports various control modes including torque, speed, and position
- Protection: Built-in protection against overcurrent, overvoltage, and overheating
Applications
- Industrial automation systems
- Packaging machinery
- Material handling equipment
- Textile machines
- Printing and paper processing
- Robotics applications
Technical Specifications
| Rated Power | 400W |
| Input Voltage | 1/3 Phase 230V AC (-15%/+10%) |
| Input Frequency | 47-63Hz |
| Communication Interface | CANopen (DS301/DS402) |
| Digital Inputs | 4 (24V DC) |
| Digital Outputs | 2 (24V DC, 0.5A) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +65°C |
| Protection Class | IP20 |
Package Includes
- Lexium28 CAN IO Drive (LXM28AU04M3X)
- Installation manual
- Mounting accessories
Why Choose Schneider Electric Lexium28?
The Lexium28 series from Schneider Electric offers reliable performance, precise control, and easy integration with industrial automation systems. With its robust design and advanced features, this drive is ideal for applications requiring high dynamic performance and positioning accuracy.
Available now at myelectric.in – Your trusted source for industrial automation components.
