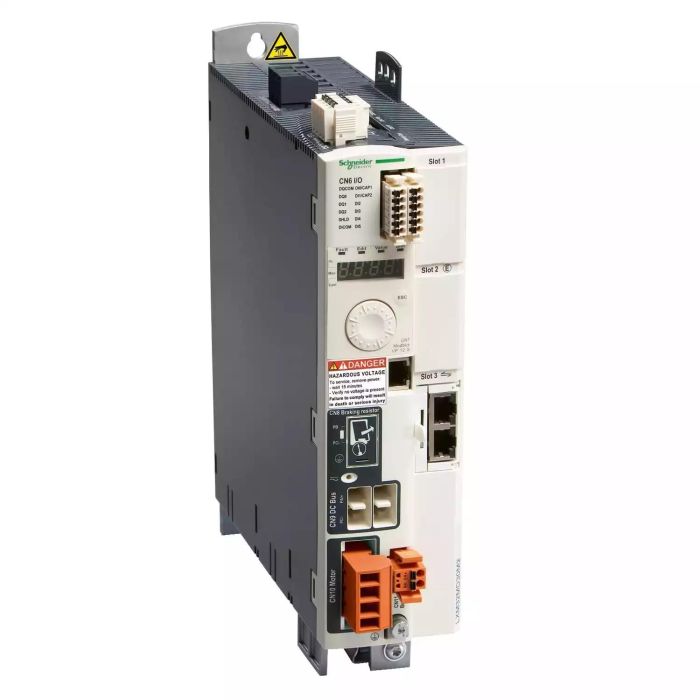

Name: LXM32MD72N4 Servo Drive | 72A RMS, 480V 3-Phase
Brand: Schneider Electric
SKU: LXM32MD72N4
Price: 144830.54 INR
Availability: OutOfStock

SKU: LXM32MD72N4

Original price was: ₹314,849.00.Current price is: ₹144,830.54. Excl. GST

Out of stock

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Additional Addons/Accessories

-52%

VW3A3607 | ELECTRONIC OPTION CARD PROFIBUS – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3607

-52%

VW3A3608 | ELECTRONIC OPTION CARD CANOPEN 2XRJ45 AT – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3608

-64%

VW3A3628 | ELECTRONIC OPTION CARD CANOPEN CONNECTOR – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3628

-52%

VW3A3616 | ELECTRONIC OPTION CARD ETHERNET TCP-IP A – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3616

-52%

VW3A3618 | ELECTRONIC OPTION CARD CANOPEN SUBD9 ATV – Schneider Electric

All Products

Excl. GST

Add to basket

SKU: VW3A3618

Sourced through authorised channels, the Schneider Electric LXM32MD72N4 electrical component from the Lexium 32 range delivers dependable performance for industrial, commercial, and infrastructure applications. Key ratings include 72 A, 480V AC, IP20. myelectric.in stocks the LXM32MD72N4 | LXM32 MODULAR 72A RMS PEAK 3PH 480V for contractors, panel builders, and project buyers — buy online with GST invoice, or request a bulk quote for domestic supply and export to UAE, Singapore, UK, USA, Sri Lanka and more.

📋 Technical Specifications

Product
Brand	Schneider Electric
Part Number / SKU	LXM32MD72N4
Category	Electrical Component
Main
Range of product	Lexium 32
Device short name	LXM32M
Product or component type	Motion servo drive
Format of the drive	Book
Network number of phases	Three phase
[Us] rated supply voltage	200…240 V – 15…10 % 380…480 V – 15…10 %
Supply voltage limits	170…264 V 323…528 V
Supply frequency	50/60 Hz – 5…5 %
Network frequency	47.5…63 Hz
EMC filter	Integrated
Continuous output current	24 A at 8 kHz
Output current 3s peak	72 A at 208 V for 5 s 72 A at 480 V for 5 s
Continuous power	6500 W at 208 V 13000 W at 400 V 13000 W at 480 V
Nominal power	5 kW at 208 V 8 kHz 7 kW at 400 V 7 kW at 480 V 8 kHz
Line current	21.1 A 34 % at 208 V, with external line choke of 1 mH 22.5 A 45 % at 400 V, with external line choke of 1 mH 19.5 A 55 % at 480 V, with external line choke of 1 mH 21.9 A 106 % at 208 V, without line choke 17.3 A 126 % at 400 V, without line choke 14.6 A 129 % at 480 V, without line choke
Complementary
Switching frequency	8 kHz
Overvoltage category	III
Maximum leakage current	30 mA
Output voltage	<= power supply voltage
Electrical isolation	Between power and control
Type of cable	Single-strand IEC cable (temperature: 50 °C) copper 90 °C XLPE/EPR
Electrical connection	Terminal, clamping capacity: 3 mm², AWG 12 (CN8)
Tightening torque	CN8: 0.5 N.m
Discrete input number	2 capture discrete input(s)
Discrete input type	Capture (CAP terminals)
Sampling duration	0.25 ms
Discrete input voltage	24 V DC for capture
Discrete input logic	Positive (compliment of STO_A, compliment of STO_B) at State 0: < 5 V at State 1: > 15 V conforming to EN/IEC 61131-2 type 1
Response time	<= 5 ms compliment of STO_A, compliment of STO_B
Discrete output number	3
Discrete output type	Logic output(s) (DO)24 V DC
Discrete output voltage	<= 30 V DC
Discrete output logic	Positive or negative (DO) conforming to EN/IEC 61131-2
Contact bounce time	<= 1 ms for compliment of STO_A, compliment of STO_B
Braking current	50 mA
Response time on output	250 µs (DO) for discrete output(s)
Control signal type	Pulse train output (PTO) RS422 <500 kHz <100 m
Protection type	Against reverse polarity: inputs signal
Safety function	STO (safe torque off), integrated
Safety level	SIL 3 conforming to EN/IEC 61508
Communication interface	Modbus TCP, with separated communication card CANopen, with separated communication card CANmotion, with separated communication card Ethernet/IP, with separated communication card EtherCAT, with separated communication card Profibus, with separated communication card Profinet, with separated communication card Analog I/O, with separated communication card Digital I/O, integrated
Status LED	1 LED (red) servo drive voltage
Signalling function	Display of faults 7 segments
Marking	CE
Operating position	Vertical +/- 10 degree
Product compatibility	Servo motor BMH (140 mm, 2 motor stacks)
Width	108 mm
Height	270 mm
Depth	237 mm
Product weight	4.8 kg
Environment
Electromagnetic compatibility	Conducted EMC, class A group 1 conforming to EN 55011
Standards	EN/IEC 61800-3
Product certifications	CSA
IP degree of protection	IP20 conforming to EN/IEC 60529
Vibration resistance	1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6
Shock resistance	15 gn for 11 ms conforming to EN/IEC 60028-2-27
Pollution degree	2 conforming to EN/IEC 61800-5-1
Environmental characteristic	Classes 3C1 conforming to IEC 60721-3-3
Relative humidity	Class 3K3 (5 to 85 %) without condensation conforming to IEC 60721-3-3
Ambient air temperature for operation	0…50 °C conforming to UL
Ambient air temperature for storage	-25…70 °C
Type of cooling	Integrated fan
Operating altitude	<= 1000 m without derating
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	14.200 cm
Package 1 Width	27.600 cm
Package 1 Length	32.500 cm
Package 1 Weight	5.506 kg
Unit Type of Package 2	S03
Number of Units in Package 2	2
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	11.869 kg
Unit Type of Package 3	P06
Number of Units in Package 3	16
Package 3 Height	75.000 cm
Package 3 Width	60.000 cm
Package 3 Length	80.000 cm
Package 3 Weight	102.300 kg
Contractual warranty
Warranty (in months)	18
