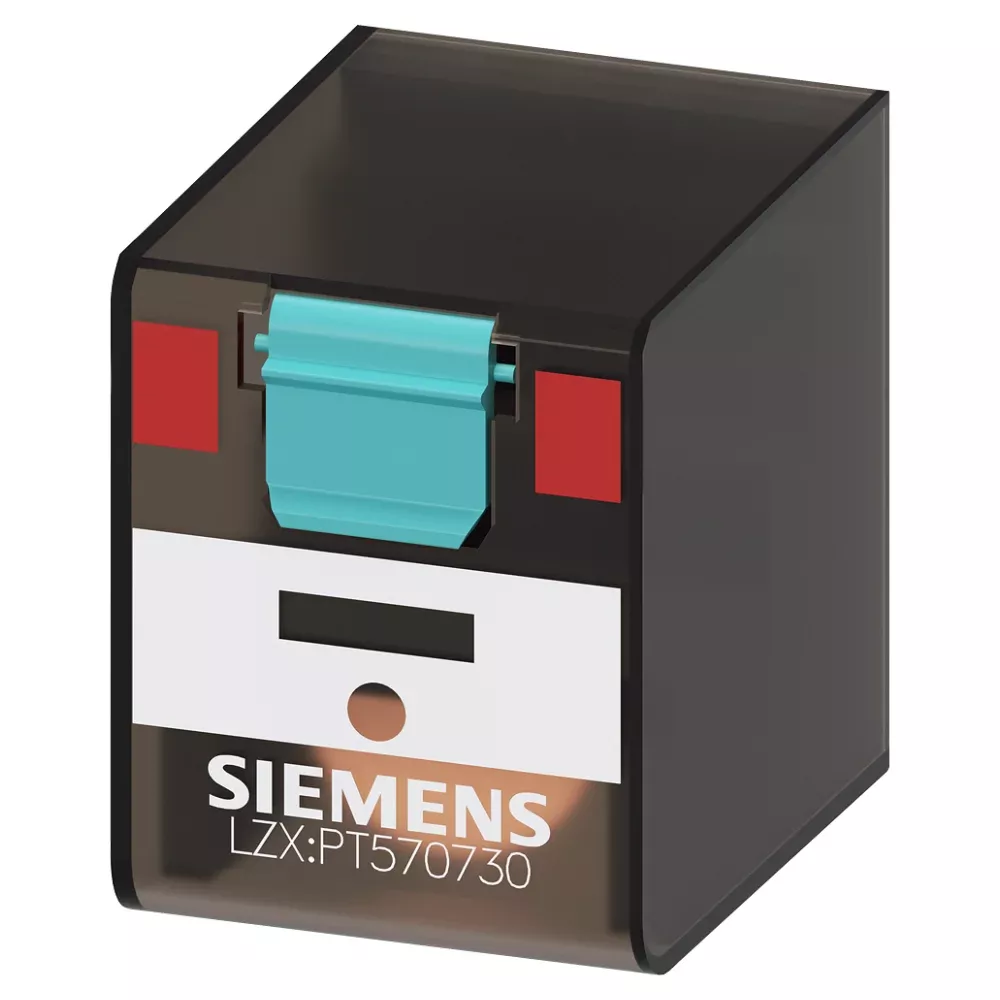

LZXPT570730 | Siemens Plug-in Relay 6 A, 4 C/O, 230 V AC, For LZS Sockets – Siemens

Name: LZXPT570730 | Siemens Plug-in Relay 6 A, 4 C/O, 230 V AC, For LZS Sockets - Siemens - myelectric.in
Brand: Siemens
SKU: LZXPT570730
Price: 3695.00 INR
Availability: OutOfStock

SKU: LZXPT570730

₹3,695.00 Excl. GST

Out of stock

15 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Looking for the LZXPT570730 | Siemens Plug-in Relay 6 A, 4 C/O, 230 V AC, For LZS Sockets? This genuine Siemens relay is built for motor control and switching, combining proven reliability with full compliance to applicable IEC/IS standards. Key ratings include 6 A, 230V AC. Order part number LZXPT570730 from myelectric.in — a trusted Siemens supplier offering competitive pricing, GST billing, and shipping across India and overseas.

📋 Technical Specifications

Parameter	Value
Brand	Siemens
Part Number / SKU	LZXPT570730
Category	Relay
Contact Configuration	4 CO (Changeover)
Current Rating	6 A
Voltage Rating	230V AC
Rated Frequency	50/60 Hz
Mounting	35mm DIN rail or plug-in socket
Standard	IEC 60947-5-1
Certifications	BIS certified, CE, cULus (select models)

⚡ Key Features

4 CO (Changeover) contact arrangement — all contacts independently switchable up to the contact voltage rating.
Plug-in format — drop-in replacement into standard relay socket base; all wiring connects to socket terminals and remains intact when the relay body is removed for testing or replacement.
Manufactured to IEC 60947-5-1 — complies with the applicable Indian BIS and IEC international standards for this product category.
BIS certified, CE, cULus (select models) — meets Indian regulatory requirements for use in government, commercial, and industrial electrical installations.
Genuine authorised Siemens product — sourced directly from the official distribution network with full manufacturer traceability and warranty.
GST invoice provided for India orders — valid for corporate procurement, government project orders, and public tender supply via myelectric.in.
Worldwide export available — UAE, Singapore, UK, USA, Sri Lanka & more. Contact +91 94814 00316 for bulk pricing and international shipping.

❓ Frequently Asked Questions

Q: What is the significance of the 6 A rating on the LZXPT570730?

A: The 6 A rating is the device’s maximum continuous current carrying capacity under specified conditions (typically 40°C ambient). For circuit design, use 80% of this value as the design current to allow for derating due to grouping, temperature, and future load growth.

Q: What does the 4 CO (Changeover) contact configuration on the LZXPT570730 mean?

A: CO (Change Over) contacts switch between two circuits — the common terminal connects to either NO or NC depending on the device state. Used for dual-purpose indication or reversing circuits.

Q: Can the LZXPT570730 relay be mounted on a DIN rail socket for easy replacement?

A: Yes. The LZXPT570730 is a plug-in relay designed for use with a matching relay socket (check RXZ or equivalent series), enabling tool-free relay replacement without disturbing control wiring. Label the socket wiring clearly to enable fast field replacement.

Q: How do I test the LZXPT570730 relay in the field without a signal source?

A: Most Siemens relays can be manually forced using the test button (if fitted) — this mechanically closes the relay contacts without energising the coil, allowing functional testing of the controlled circuit. For coil testing, use a multimeter to measure coil resistance (typically 500–2000Ω for AC coils at rated voltage) and compare with datasheet values.
