METSECT5DA050 | CT Solid core 32x65mm bar 500x5A CTR - Schneider Electric - Image 1

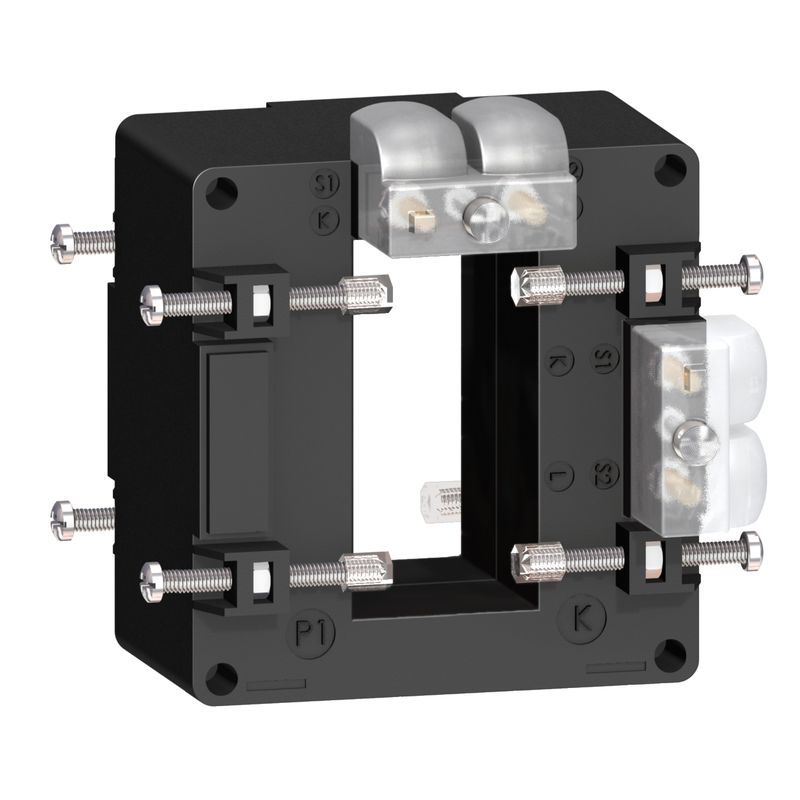

    METSECT5DA050 | CT Solid core 32x65mm bar 500x5A CTR – Schneider Electric

    SKU: METSECT5DA050

    Original price was: ₹6,559.00.Current price is: ₹4,788.07. Excl. GST

    Dispatch By : 7 Weeks

    Dispatch By : 7 Weeks

    11 People watching this product now!

    Order protection

    Buy with complete confidence.

    We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

    Buyer protection on every order
    Global DeliveryShipped pan-India and to export markets.
    On-Time DeliveryPacked and dispatched on schedule.
    100% OriginalFrom brand-authorised channels only.
    GST InvoiceCompliant, ITC-ready tax invoice.
    Secure PaymentEncrypted, trusted payment gateways.
    Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

    Specifications

    Main
    RangePowerLogic
    Product or component typeCurrent transformer
    Product nameCT
    Secondary current5 A
    Accuracy classClass 0.5 at 8 VA
    Class 1 at 10 VA
    [In] rated current500 A
    Complementary
    Current transformer typeTropicalised for busbar
    Solid core
    Current transformer ratio500/5
    [Ith] conventional free air thermal current30 kA
    Dynamic withstand current2.5 Ith
    Maximum safety factor5
    [Ue] rated operational voltage< 720 V AC 50/60 Hz
    [Ui] rated insulation voltage3 kV
    Mounting modeInsulated locking screw
    Mounting supportBusbar
    WidthOutside: 90 mm
    Inner: 32 mm
    HeightOutside: 94 mm
    Inner: 65 mm
    DepthFrame : 40 mm
    Total : 90 mm
    Net weight0.541 kg
    [Uimp] rated impulse withstand voltage3 kV
    Electrical insulation classClass B
    Opening of bars65 x 32
    SealingWith
    Environment
    StandardsIEC 61869-2
    VDE 0414
    Product certificationsCE
    IP degree of protectionIP20
    Relative humidity0…95 %
    Ambient air temperature for operation-25…60 °C
    Packing Units
    Unit Type of Package 1PCE
    Number of Units in Package 11
    Package 1 Height10.200 cm
    Package 1 Width9.400 cm
    Package 1 Length10.100 cm
    Package 1 Weight480.600 g
    Unit Type of Package 2S03
    Number of Units in Package 216
    Package 2 Height30.000 cm
    Package 2 Width30.000 cm
    Package 2 Length40.000 cm
    Package 2 Weight8.090 kg
    Contractual warranty
    Warranty (in months)18
