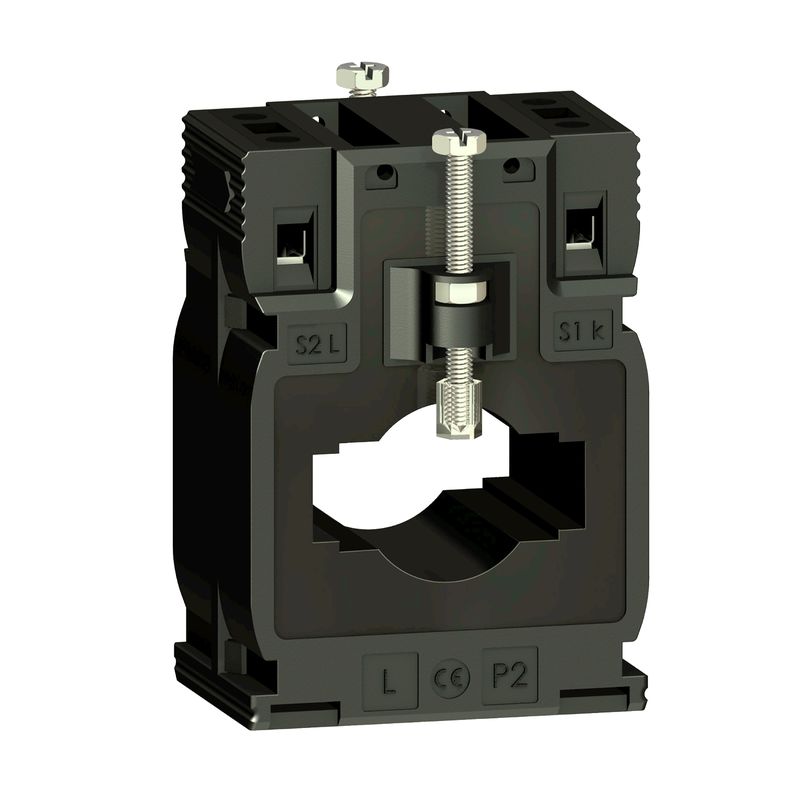

METSECT5MB030 | CT Solid core 26mm dia or bar 300x5A CTR – Schneider Electric

Name: METSECT5MB030 - Current transformer tropicalised DIN mount 300 5 cables d. | Schneider Electric
Brand: Schneider Electric
SKU: METSECT5MB030
Price: 4378.54 INR
Availability: BackOrder

SKU: METSECT5MB030

Original price was: ₹5,998.00.Current price is: ₹4,378.54. Excl. GST

Dispatch By : 7 Weeks

16 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	PowerLogic
Product or component type	Current transformer
Product name	CT
Secondary current	5 A
Accuracy class	Class 0.5 at 4 VA Class 1 at 6 VA
[In] rated current	300 A
Complementary
Current transformer type	Tropicalised for busbar and cable Solid core
Current transformer ratio	300/5
[Ith] conventional free air thermal current	18 kA
Dynamic withstand current	2.5 Ith
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV 50 Hz for 1 minute
Mounting mode	Clip-on By screws Insulated locking screw
Mounting support	Busbar DIN rail Mounting plate
Width	Outside: 60 mm
Height	Outside: 85 mm
Depth	Frame : 43 mm Total : 63 mm
Diameter	26 mm
Net weight	0.323 kg
[Uimp] rated impulse withstand voltage	3 kV
Electrical insulation class	Class B
Cable outer diameter	26 mm
Opening of bars	32.5 x 15.5 40.5 x 12.5
Sealing	Without
Environment
Standards	IEC 61869-2 VDE 0414
Product certifications	CE
IP degree of protection	IP20
Relative humidity	0…95 %
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.2 cm
Package 1 Width	7 cm
Package 1 Length	9 cm
Package 1 Weight	315 g
Unit Type of Package 2	S03
Number of Units in Package 2	36
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	11.78 kg
Contractual warranty
Warranty (in months)	18
