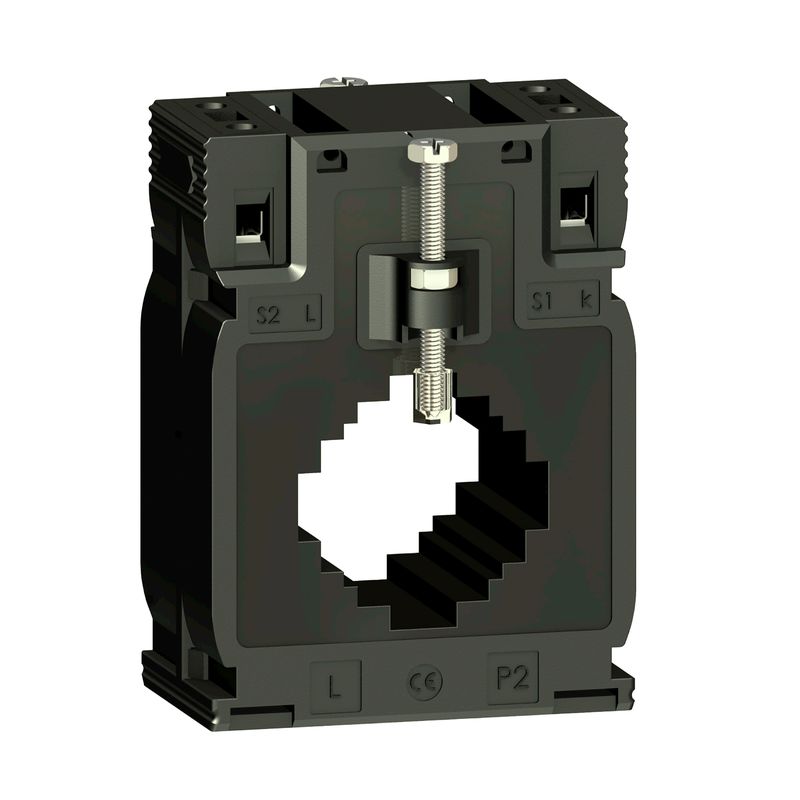

METSECT5MC025 | CT Solid core 32mm dia or bar 250x5A CTR – Schneider Electric

Name: METSECT5MC025 - Current transformer tropicalised DIN mount 250 5 for bars | Schneider Electric
Brand: Schneider Electric
SKU: METSECT5MC025
Price: 3374.79 INR
Availability: BackOrder

SKU: METSECT5MC025

Original price was: ₹4,623.00.Current price is: ₹3,374.79. Excl. GST

Dispatch By : 7 Weeks

17 People watching this product now!

Order protection

Buy with complete confidence.

We back each order with genuine supply, on-time dispatch and GST or commercial invoicing as required.

Buyer protection on every order

Global DeliveryShipped pan-India and to export markets.

On-Time DeliveryPacked and dispatched on schedule.

100% OriginalFrom brand-authorised channels only.

GST InvoiceCompliant, ITC-ready tax invoice.

Secure PaymentEncrypted, trusted payment gateways.

Also included Dedicated account manager Technical support Bulk & business pricing 3-day replacement

Specifications

Main
Range	PowerLogic
Product or component type	Current transformer
Product name	CT
Secondary current	5 A
Accuracy class	Class 0.5 at 3 VA Class 1 at 5 VA
[In] rated current	250 A
Complementary
Current transformer type	Tropicalised for busbar and cable Solid core
Current transformer ratio	250/5
[Ith] conventional free air thermal current	15 kA
Dynamic withstand current	2.5 Ith
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
[Ui] rated insulation voltage	3 kV 50 Hz for 1 minute
Mounting mode	Clip-on Insulated locking screw By screws
Mounting support	DIN rail Mounting plate Busbar
Width	Outside: 70 mm Inner: 41 mm
Height	Outside: 95 mm Inner: 41 mm
Depth	Frame : 45 mm Total : 65 mm
Diameter	32 mm
Net weight	0.375 kg
[Uimp] rated impulse withstand voltage	3 kV
Electrical insulation class	Class B
Cable outer diameter	32 mm
Opening of bars	40.5 x 10.5 32.5 x 20.5 25.5 x 25.5
Sealing	Without
Environment
Standards	VDE 0414 IEC 61869-2
Product certifications	EAC CE
IP degree of protection	IP20
Relative humidity	0…95 %
Ambient air temperature for operation	-25…60 °C
Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.000 cm
Package 1 Width	9.000 cm
Package 1 Length	11.500 cm
Package 1 Weight	371.600 g
Unit Type of Package 2	S03
Number of Units in Package 2	33
Package 2 Height	30.000 cm
Package 2 Width	30.000 cm
Package 2 Length	40.000 cm
Package 2 Weight	12.663 kg
Contractual warranty
Warranty (in months)	18
